Bosch 12V Connected Thermal Camera 160×120 Resolution GTC400C

BOSCH

12V Max Connected Thermal Camera GTC400C

The Bosch GTC400C 12V Max Connected Thermal Camera is easy to use; determining temperatures in seconds and documenting the results with convenience. Featuring a large illuminated color display; it delivers a 160×120 thermal graphic image accurate to ±3° C; setting the standard for detailed thermal resolution. It features simple operation; just squeeze the trigger to shoot image; and use the click wheel for the functions. The thermal graphic image features more than 19;000 measurement points for precision; showing hot and cold spots; the temperature at the center and an adjustable temperature scale. The integrated visual camera records actual images; so the user can document the work area visually as well as thermally. This allows side-by-side comparison; picture-in-picture and overlay of picture and thermal graphic. It can store up to 500 images. It’s powered by the Bosch 12V Max battery platform for professional runtime

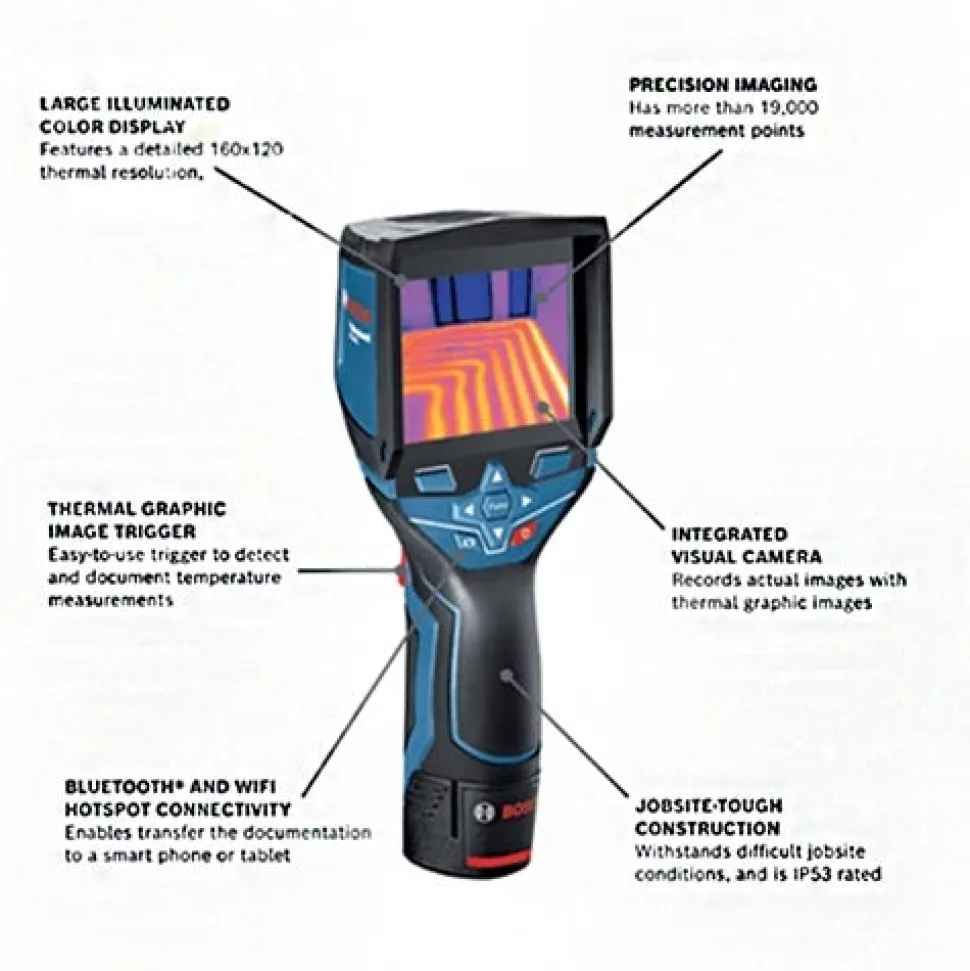

FEATURES:

• Fast thermal camera operation – detects temperature anomalies in seconds by just squeezing the trigger and freezing the image.
• Large illuminated color display – features a 160×120 thermal resolution; setting the standard for detailed thermal resolution.
• Integrated camera – records actual images with thermal graphic images; for side-by-side comparison; picture-in-picture and more.
• Precision imaging – has more than 19;000 measurement points; showing hot and cold spots; center temperature and adjustable temperature scale.

SPECIFICATIONS:

Battery	12V Lithium-ion Battery
Height	9.17
Length	3.74″
Width	2.48″
IP Rating	IP 53

INCLUDES:

• (1) GTC400C 12V Max Connected Thermal Camera
• (1) 12V Max Lithium-Ion Battery
• (1) 12V Max Charger
• (1) USB Cable
• (1) Soft Pouch
• GTC Transfer Software

“
