Bosch Wall & Floor Scanner Radar Technology 8″ Depth Metal/Concrete D-TECT200C

Bosch

Wallscanner Professional D-TECT200C

The D-tect 200 C Professional detects all common objects and illustrates them clearly, while making documentation easy. Equipped with Bosch Radar Technology and an improved user interface, it stands for safer and more precise construction work. Multiple views allow for conveniently choosing the best option for different applications, such as Spot View, that makes detection in hard-to-reach locations especially easy. To provide solid evidence, the wallscanner´s innovative screenshot feature enables quick documentation.

FEATURES:

• Bosch Radar Technology and modern user interface for precision, higher safety, and clear illustration of detected objects
• Multiple views flexibly offer best results in various situations
• Screenshot feature supports quick and easy documentation; screenshots are downloadable via USB-C™ and SD card slot

Material:

•          Max. object detection depth
  •          In dry concrete
    •          Metal objects 7.9 in (200 mm)
    •          Other objects 3.15 in (80 mm)
  •          Metal objects in early age concrete 2.36 in (60 mm)
  •          Wooden beams in drywalls 1.5 in (38 mm)
  •          Objects in horizontal coring bricks 1.96 in (50 mm)
  •          Objects in other supported wall types 3.15 in (80 mm)
•          Accuracy of object center measurement 0.2 in (±5 mm)
•          Accuracy of indicated object depth
  •          In dry concrete 0.2 in (±5 mm)
  •          In early age concrete 0.4 in (±10 mm/m)
•          Minimum distance between two neighbouring objects 1.6 in (40 mm)
•          Accuracy of distance measurementB) 0.4 in (±10 mm/m)
•          Radar sensor
  •        Operating frequency range 1.8–5.8 GHz
  •        Max. transmission power 0.00001 mW
•          Inductive sensor
  •        Operating frequency range 48–52 kHz
  •        Max. magnetic field strength (at 33 ft (10 m)) 20 dBμA/m
  •        Max. altitude 6,561 Ft (2000 m)
  •        Relative air humidity max. 90 %
• Relative air humidity max. for “live” material identification 50 %

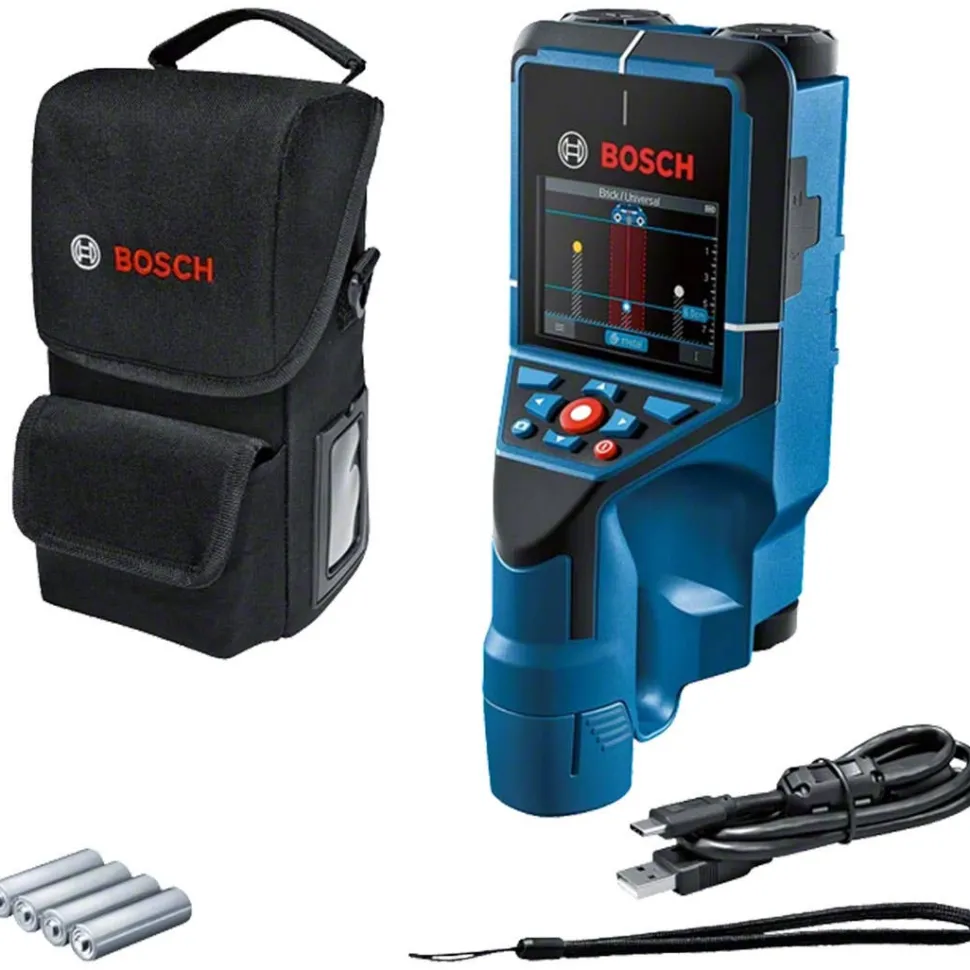

INCLUDES:

(1) Wallscanner

(4) 1.5 V LR6 battery (AA)

(1) Battery adapter (1600A017HF/1600A017HH)

(1) USB-C™ Cable

(1) Hand strap

(1) Pouch
