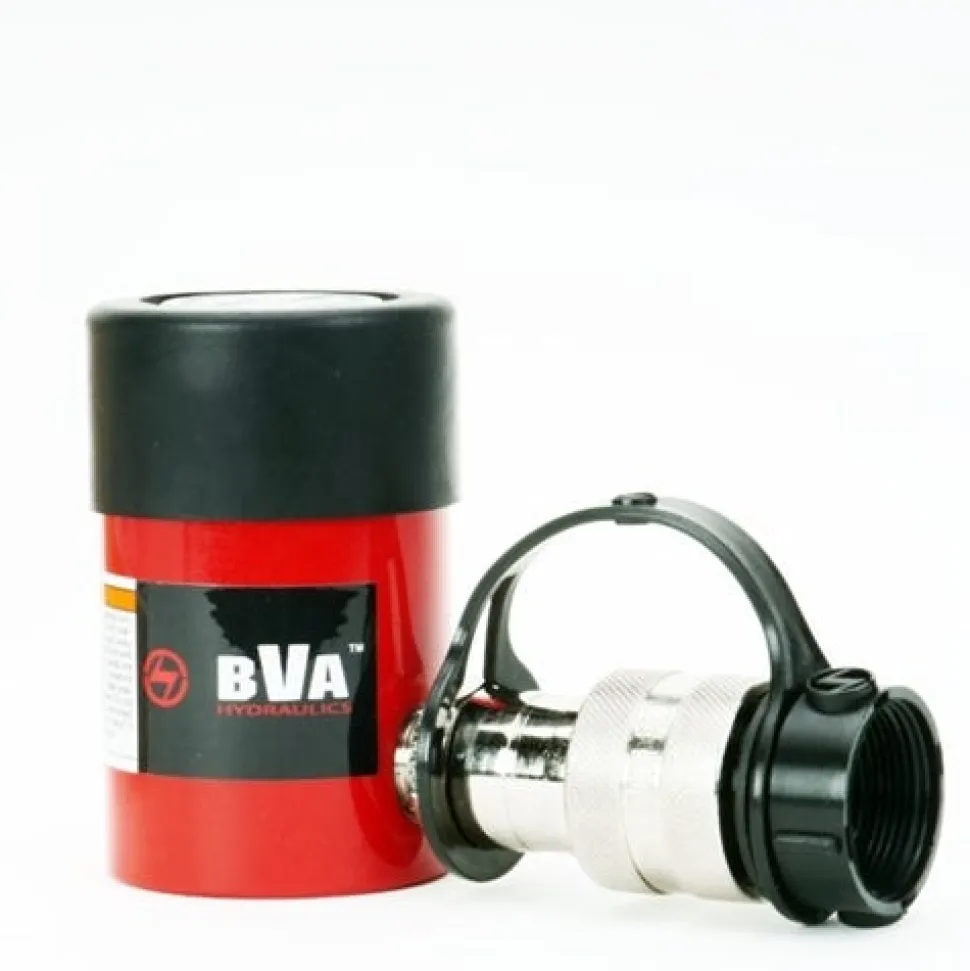

BVA 10 Ton 1″ Stroke Single Acting Hydraulic Cylinder H1001

BVA Hydraulics

10 Ton 1 Stroke Single Acting Cylinder H1001

FEATURES:

• Internal plunger threads
• Plunger wipers help seal out dirt
• Collar fixture threads
• Two base mounting holes
• Maximum working pressure: 10;000 psi/ 700 bar
• High strength steel construction
• High-flow couplers
• Collar thread protector

SPECIFICATIONS:

Collapsed Height (in.)	3.62
Extended Height (in.)	4.6
Cylinder Bore (in.)	1.69
Outside Diameter (in.)	2.26
Rod Diameter	1.49
Saddle Diameter (in.)	–
Cylinder Effective Area	2.24
Internal Pressure at Capacity (psi)	8;928
Oil Capacity	2.19
Weight (lbs.)	3.92

“
