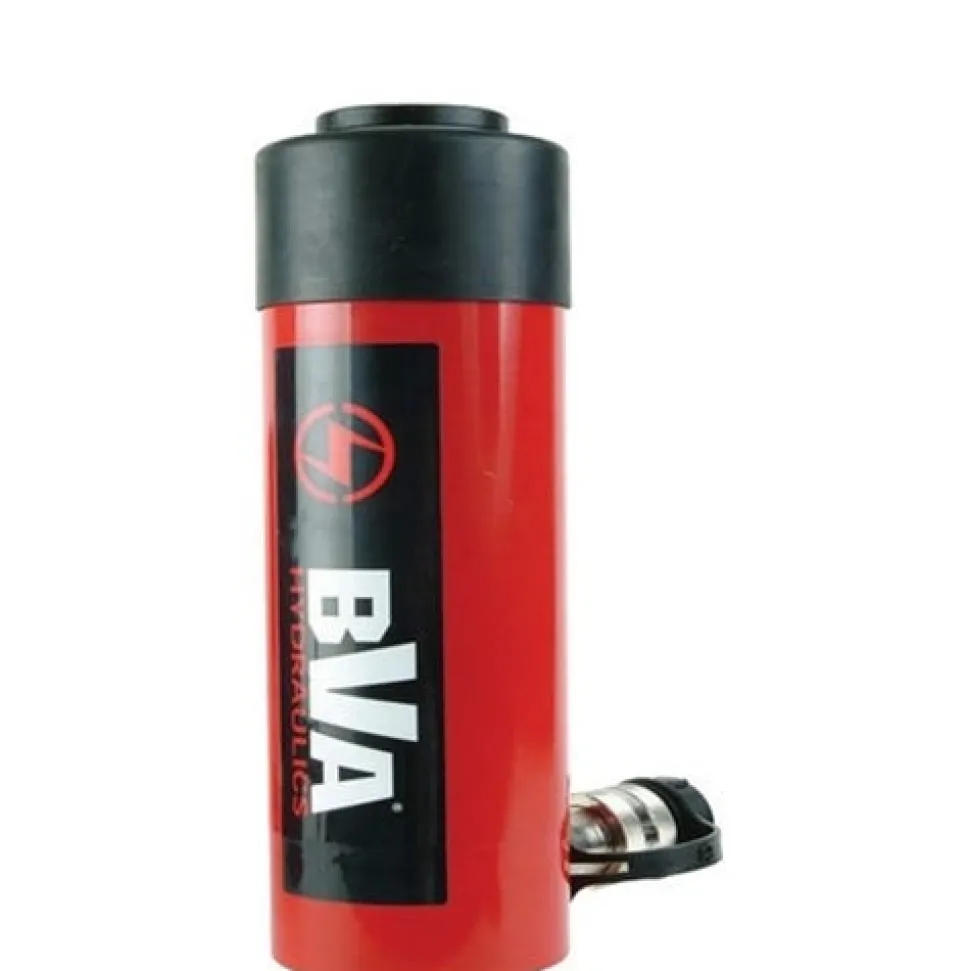

BVA 10 Ton 2.01 Stroke Single Acting Hydraulic Cylinder H1002

BVA Hydraulics

10 Ton 2.01 Stroke Single Acting Hydraulic Cylinder H1002

FEATURES:

• Internal plunger threads
• Snap-in grooved saddles
• Plunger wipers help seal out dirt
• Collar fixture threads
• Two base mounting holes
• Maximum working pressure: 10;000 psi/ 700 bar
• High strength steel construction
• High-flow couplers
• Collar thread protector

SPECIFICATIONS:

Cylinder Capacity (Tons)	10
Stroke (in.)	2.01
Cylinder Effective Area (in3)	2.24
Internal Pressure at Capacity (psi)	8;928
Oil Capacity (in3)	4.5
Weight (lbs)	4.96
Collapsed Height (in.)	4.84
Outside Diameter (in.)	2.26
Rod Diameter (in.)	1.49
Saddle Diameter (in.)	1.38
Compares To:	*For comparison purposes only. Products are not identical. Enerpac RC-102 PowerTeam C102C Simplex R102

“
