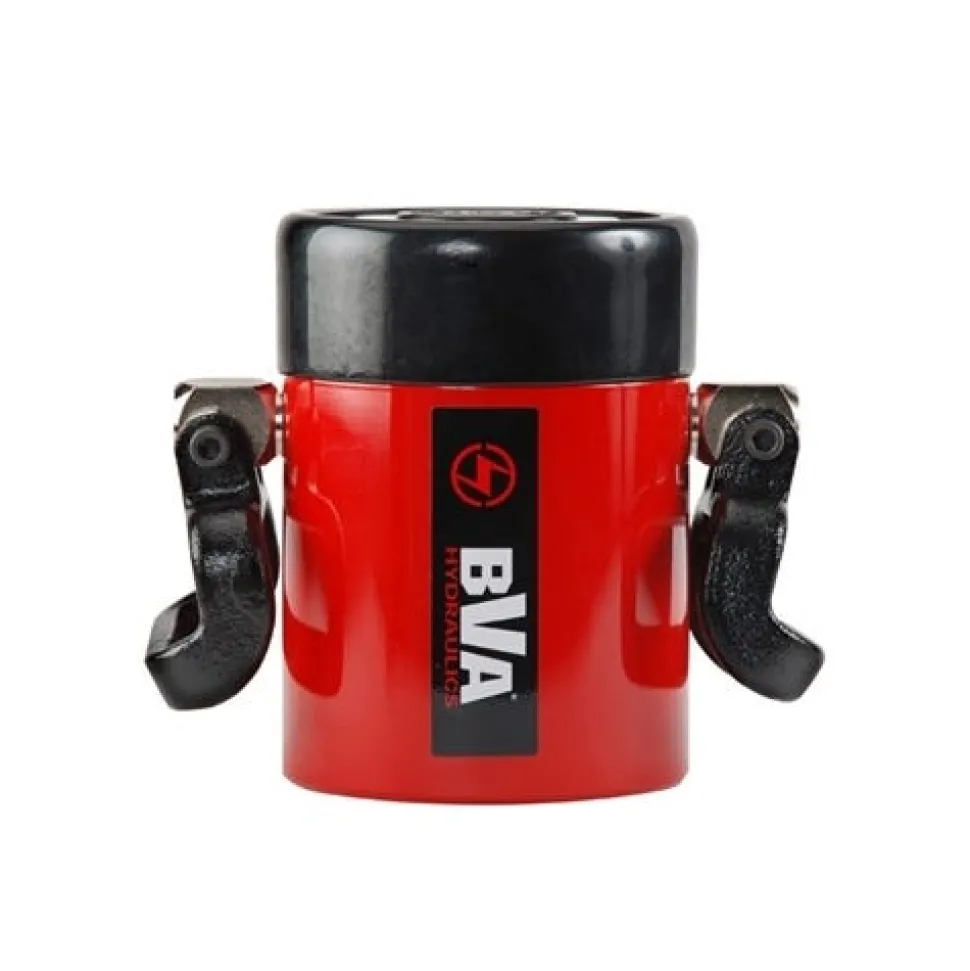

BVA 100 Ton 2.01″ Stroke Single Acting Hydraulic Cylinder H10002A

• BVA Hydraulics
• BVA 100 Ton 2.01 Stroke Single Acting Cylinder H10002A
• Features:
• Internal plunger threads
• Snap-in grooved saddles
• Plunger wipers help seal out dirt
• Collar fixture threads
• Two base mounting holes
• Maximum working pressure: 10;000 psi/ 700 bar
• High strength steel construction
• High-flow couplers
• Collar thread protector
• Cylinder Capacity (Tons): 100
• Stroke (in.): 2.01
• Model Number: H10002A
• Cylinder Effective Area (in3): 20.58
• Internal Pressure at Capacity (psi): 9;718
• Oil Capacity (in3): 41.34
• Weight (lbs): 66

“
