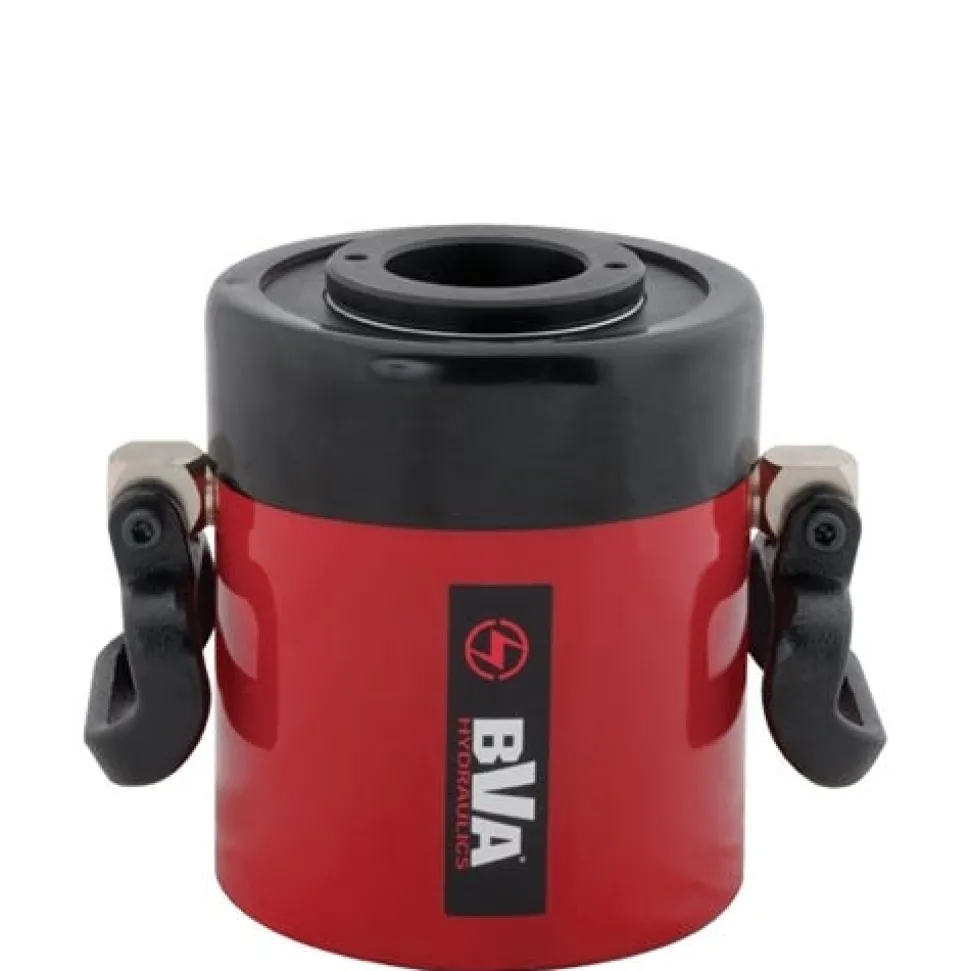

BVA 100 Ton 3″ Stroke Hollow Hole Single Acting Hydraulic Cylinder HC10003T

• BVA Hydraulics
• BVA 100 Ton 3 Stroke Hollow Hole Single Acting Cylinder HC10003T
• Ideal for pulling and pushing applications
• Heavy duty compression spring
• Dual wipers help prevent contamination
• Collar thread protector
• High flow coupler with dust cap
• XT cylinders do not come with internal rod threads
• 60 and 100 ton models are equipped with carrying handles
• Cylinder Capacity (Tons): 100
• Stroke (in.): 3.00
• Model Number: HC10003T
• Cylinder Effective Area In2): 22.13
• Pressure at Capacity: 9;036
• Oil Capacity (in3): 66.31
• Weight (lbs.): 113.3
• Min Height (in.): 10.00
• Max Height (in.): 13.00

“
