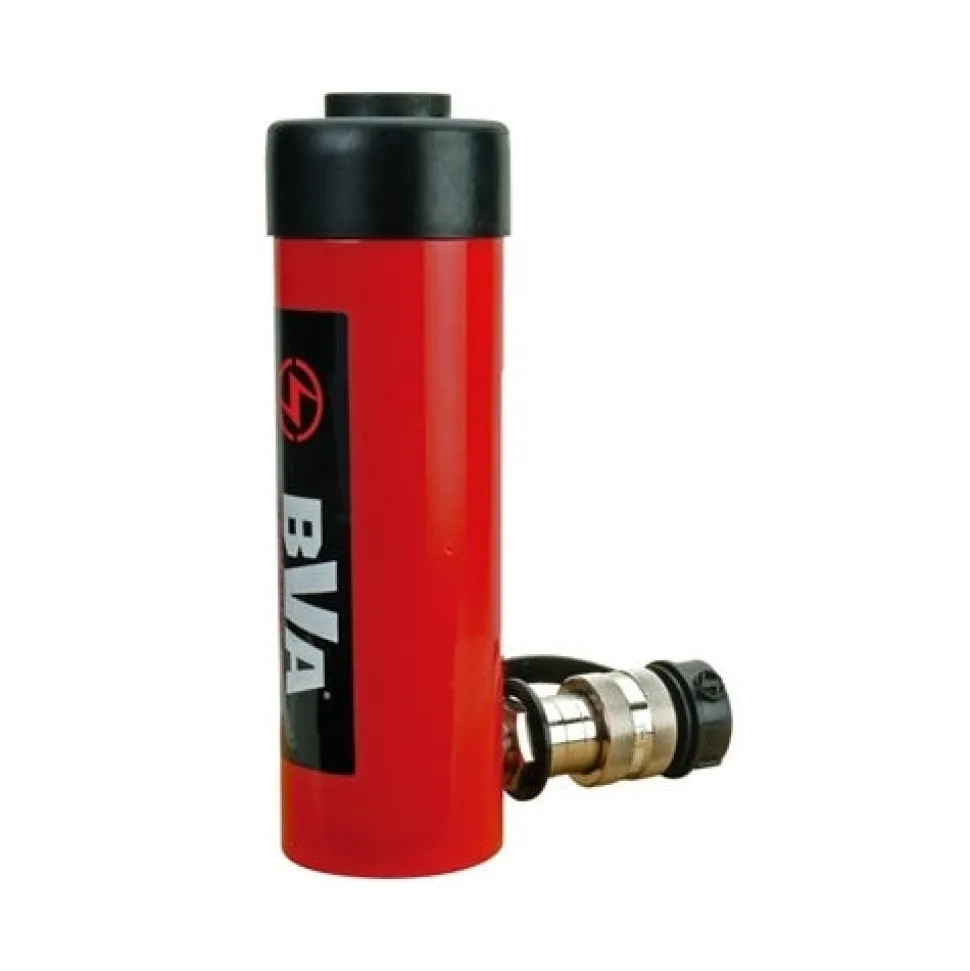

BVA 15 Ton 10″ Stroke Single Acting Cylinder H1510

BVA Hydraulics

15 Ton 10 Stroke Single Acting Cylinder H1510

FEATURES:

• Internal plunger threads.
• Snap-in grooved saddles.
• Plunger wipers help seal out dirt.
• Collar fixture threads.
• Two base mounting holes.
• Maximum working pressure: 10;000 psi/ 700 bar.
• High strength steel construction.
• High-flow couplers.
• Collar thread protector.

SPECIFICATIONS:

Collapsed Height (in.)	14.65
Extended Height (in.)	24.65
Cylinder Bore (in.)	2.0
Outside Diameter (in.)	2.75
Rod Diameter	1.63
Saddle Diameter (in.)	1.5
Cylinder Effective Area	3.14
Internal Pressure at Capacity (psi)	9;554
Oil Capacity	31.4
Weight (lbs.)	19.97

“
