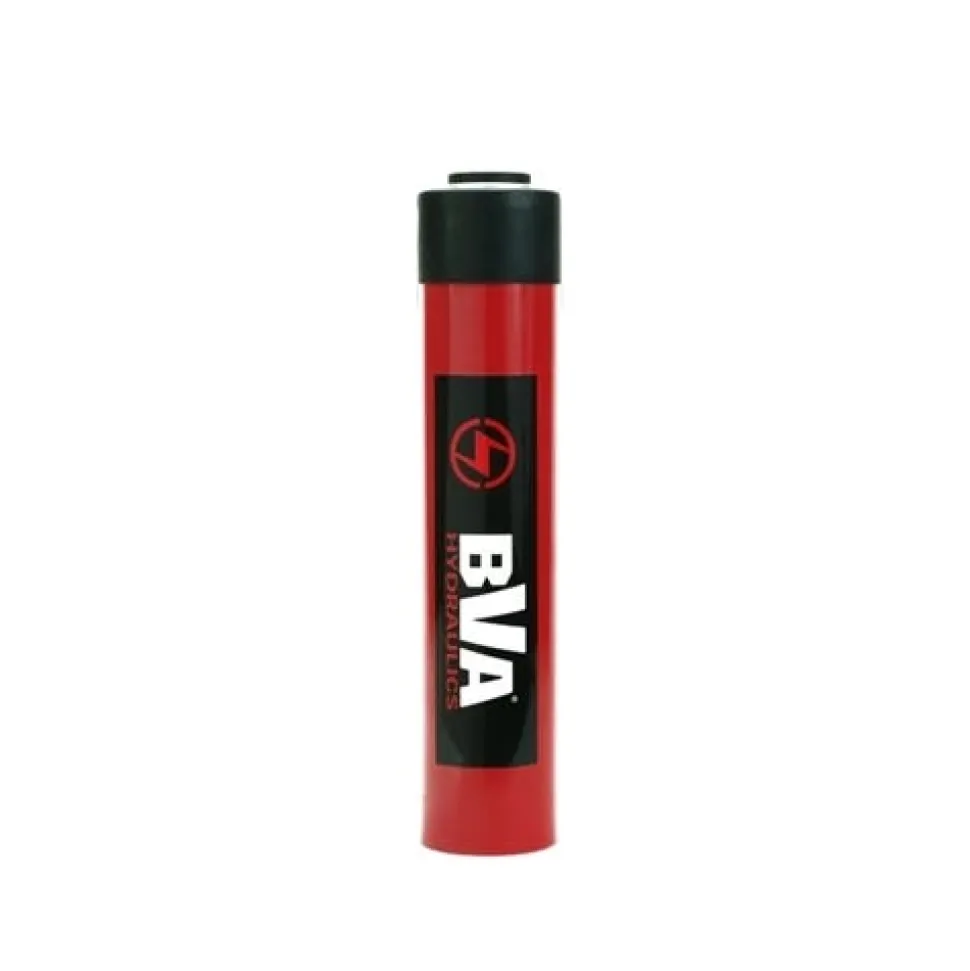

BVA 25 Ton 12″ Stroke Single Acting Cylinder H2512
Original price was: $1,486.00.$140.99Current price is: $140.99.
BVA Hydraulics
25 Ton 12 Stroke Single Acting Cylinder H2512
FEATURES:
- Internal plunger threads
- Snap-in grooved saddles
- Plunger wipers help seal out dirt
- Collar fixture threads
- Two base mounting holes
- Maximum working pressure: 10;000 psi/ 700 bar
- High strength steel construction
- High-flow couplers
- Collar thread protector
SPECIFICATIONS:
| Collapsed Height (in.) | 16.77 |
|---|---|
| Extended Height (in.) | 28.97 |
| Cylinder Bore (in.) | 2.56 |
| Outside Diameter (in.) | 3.35 |
| Rod Diameter | 2.24 |
| Saddle Diameter (in.) | 1.97 |
| Cylinder Effective Area | 5.15 |
| Internal Pressure at Capacity (psi) | 9;708 |
| Oil Capacity | 62.83 |
| Weight (lbs.) | 34.27 |
“
| OPT SKU | BVAH2512 |
|---|---|
| MPN | H2512 |
| UPC/GTIN | 047077540152 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 12″ |
| Tonnage | 25-Ton |
| Shipping Weight | 40.00 |
