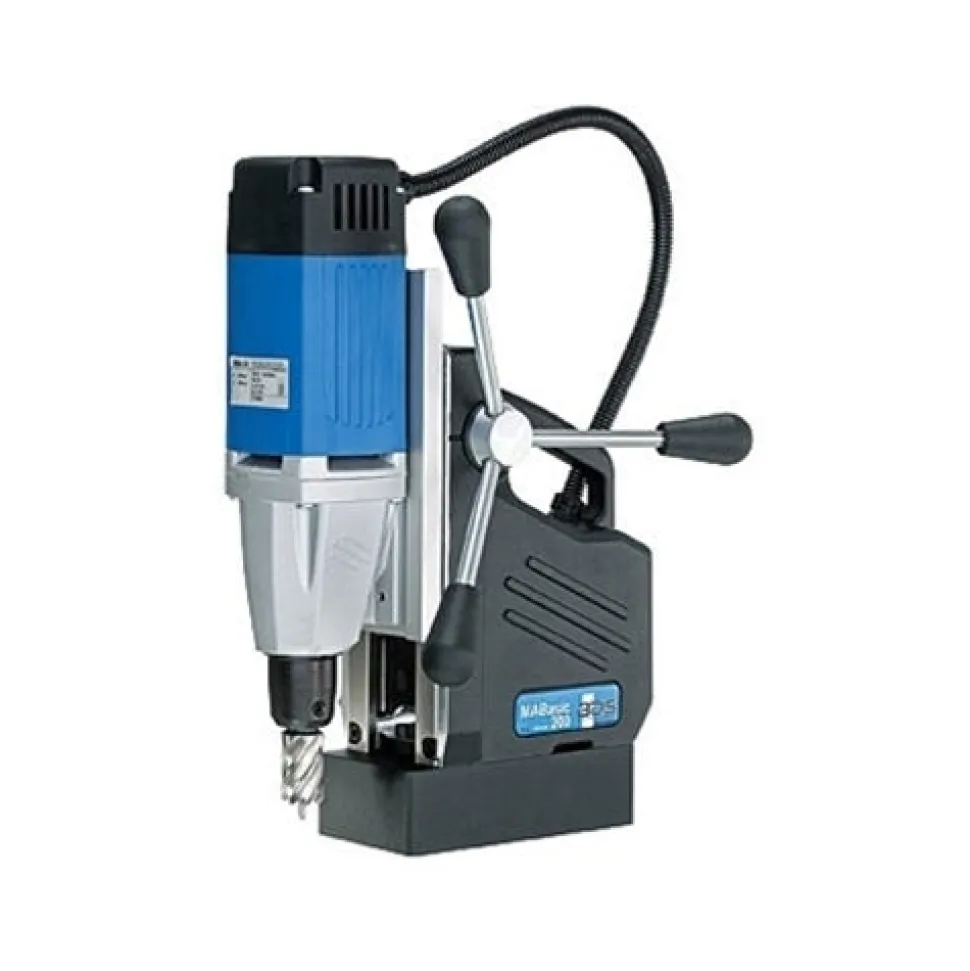

CS Unitec 1-1/4″ Magnetic Drill Single Speed MABasic 200

CS Unitech

MAGNETIC DRILL 1-1/4 SINGLE SPEED MABASIC 200

FEATURES:

• Compact; lightweight; portable design
• Internal lubrication system
• Simple; ergonomic arrangement of controls for one-handed operation
• Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
• Uses annular cutters
• Lubricants ideal for cutting steel; stainless steel and hard metals

SPECIFICATIONS:

Motor Power	8.2 Amp / 110 Volt
Weight	27 lbs.
Stroke	6-1/3″ (3-1/3″ with geared chuck)
Hole Capacity	1-1/4″ dia.
Twist Drill Capacity	1/2″ dia.
Speeds	450 RPM
Magnet Base Size	6-5/8″ W x 3-1/3″ H

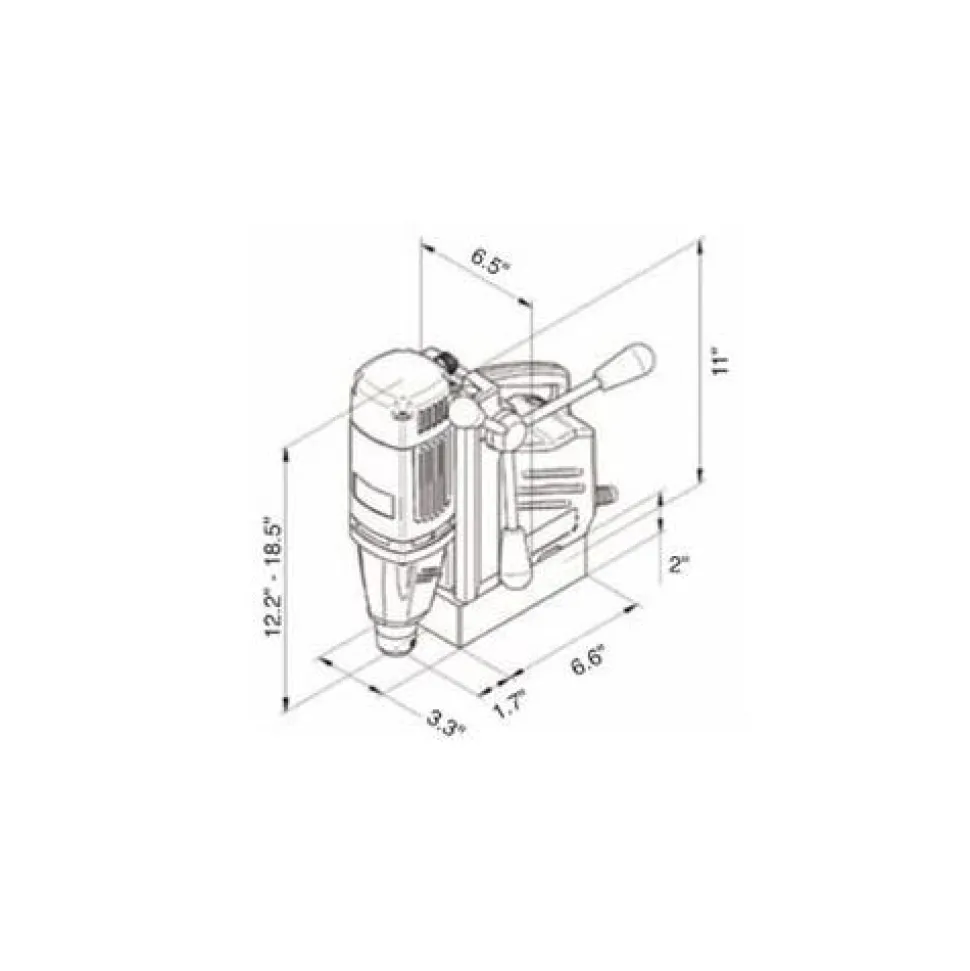

Dimensions	14-1/4″ H x 9-1/2″ L x 4-3/8″ W
Magnetic Force (1″ plate)	3080 lbs.
Arbor Bore	3/4″ Weldon Shank
Internal Lubrication	Oil Bottle Included

“
