CS Unitec 1-5/8″ Two-Speed Portable Magnetic Drill MABASIC 450

CS Unitec

1-5/8 Two-Speed Portable Magnetic Drill MABASIC 450

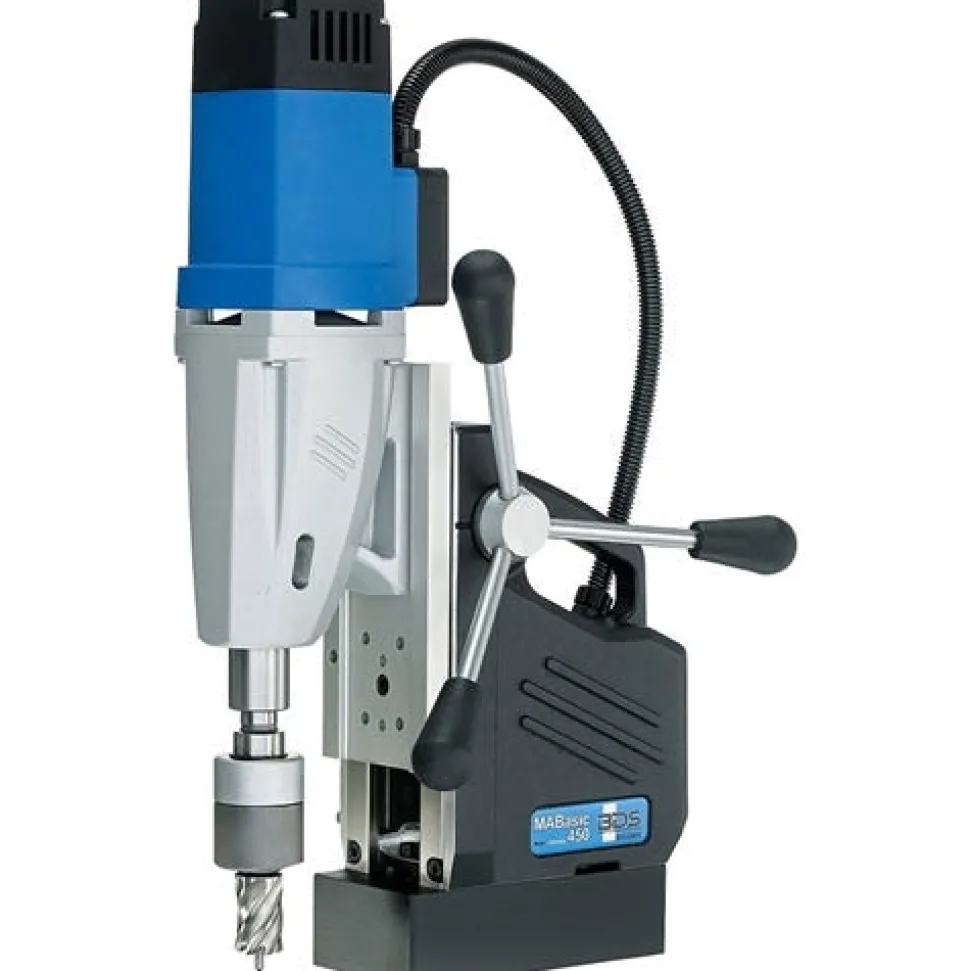

The CS Unitec MABasic 450 is a lightweight robust and economical portable magnetic core drilling machine. Designed for continuous operation; CS Unitec’s portable magnetic drills are ideal for drilling structural steel and virtually any metal.

FEATURES:

• Two-speed versatility.
• Compact and lightweight.
• 3/4″ direct arbor with automatic cooling.

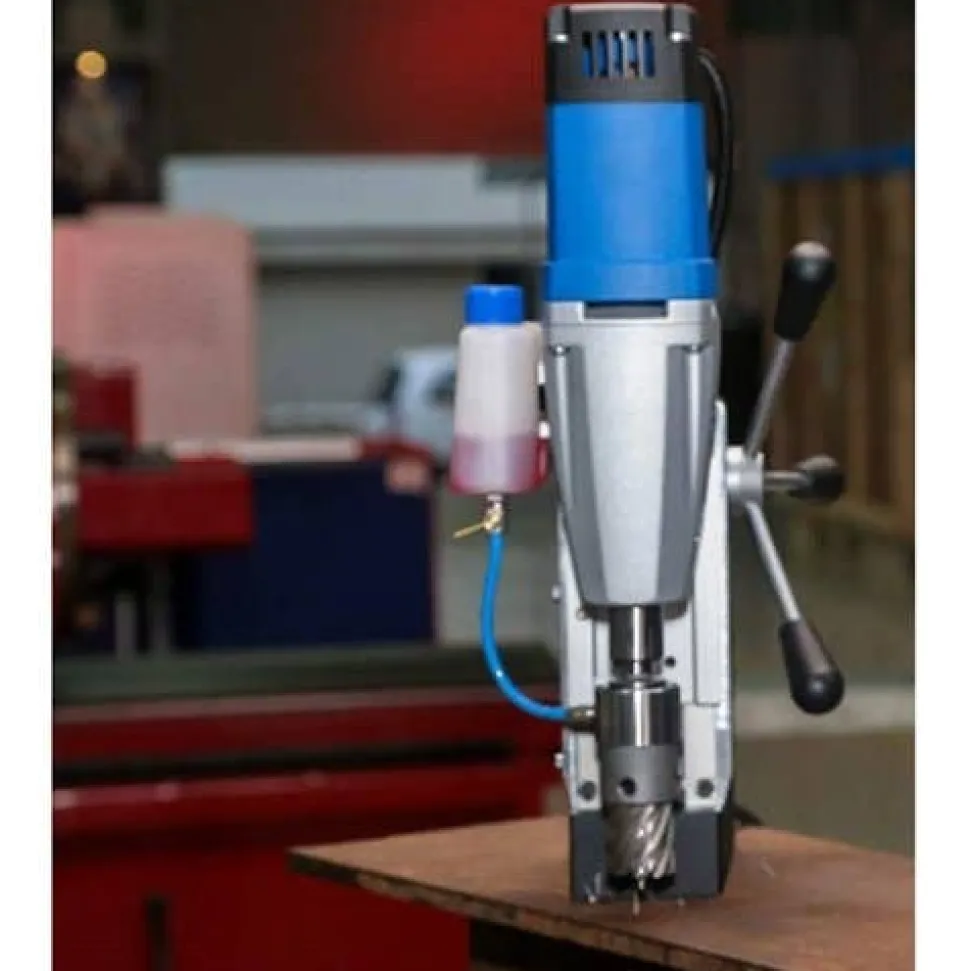

• Internal lubrication system.
• Simple; ergonomic arrangement of controls for one-handed operation.
• Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment.
• Lubricants ideal for cutting steel; stainless steel and hard metals.
• 3/4″ geared chuck (part no. IBC 22) for twist drilling.
• Uses annular cutters.

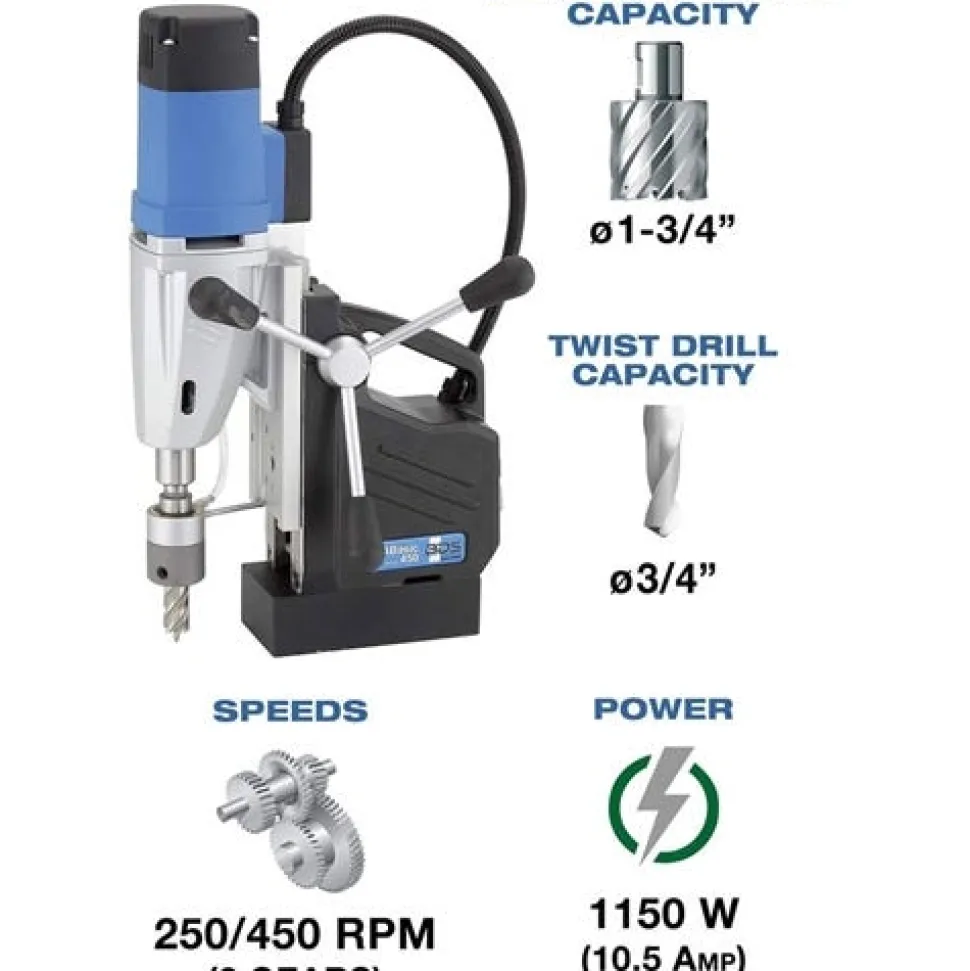

SPECIFICATIONS:

Motor Power	10.5 Amp / 110 Volt
Stroke	6-1/3″
Hole Capacity	1-3/4″ dia.
Twist Drill Capacity	3/4″ dia.
Speeds	250/450 RPM (2 gears)
Magnet Base Size	L: 6-5/8″ x W: 3-1/3″
Dimensions	H: 17″ x L: 9-1/2″ x W: 6-1/2″
Magnetic Force (1″ plate)	3080 lbs.
Arbor Bore	3/4″ Weldon Shank
Spindle	MT2
Internal Lubrication	Oil Bottle Included

INCLUDES:

• (1) Magnetic drilling machine
• (1) Auto chuck cutter holder
• (1) 1/2″ geared chuck
• (1) Pilot pin
• (1) Lubrication bottle
• (1) Carrying case

“
