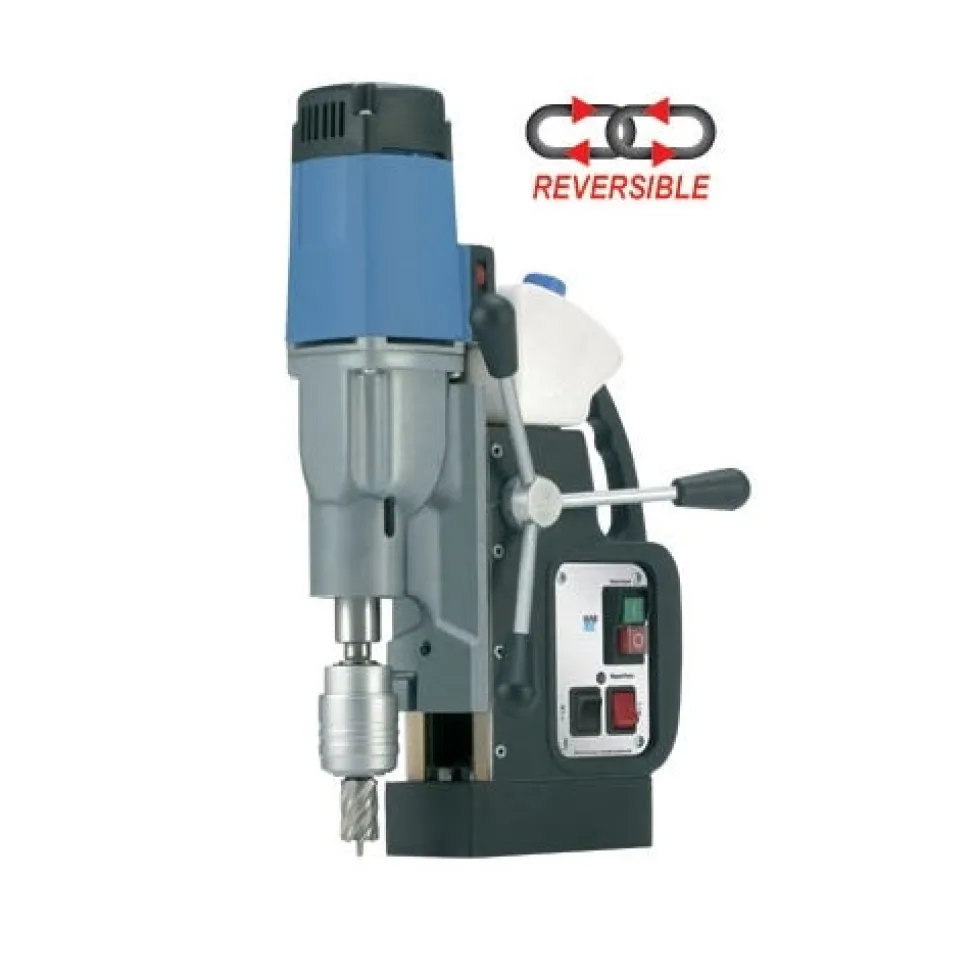

CS Unitec 2.5″ Magnetic Drill Reversible Variable Speed MAB 525

CS Unitech

Magnetic Drill 2.5 Reversible Variable Speed MAB 525

FEATURES:

• 14.5 Amp doubleinsulated motor.
• 19″ high; 35 lbs.
• High-speed; 2-speed oilbathgearbox; ideal for annularcutters and twist drills.
• Designed for continuous use.
• Intelligent electronic torquecontrol Uses annular cutters upto 2-1/2″ dia.
• Twist drilling capacity up to 1″ dia.
• Tapping capacity up to 15/16″ dia.
• Integrated cutting oil reservoir.
• Automatic internal lubrication Quick-change keyless cuttersystem for 3/4″ Weldon shank.
• Also includes manual arbor for 3/4″Weldon shank (MT3) with set screws.
• Green/Red LED magnetic forceindicator for safe operation.
• Internal cable routing.
• Simple; ergonomic arrangement ofcontrols for one-handed operation.
• Emergency-off functionOptional.
• 1/2″ geared chuck for twist drilling (Included).
• This modeleasily convertsto a standarddrill press witha 5″ stroke forconventionaltwist drills.

SPECIFICATIONS:

Motor Power	14.5 Amp / 110 Volt
Weight	35 lbs.
Tapping Capacity	15/16″ dia.
Hole Capacity	2-1/2″ dia.
Twist Drill Capacity	1″ dia.
Speeds	70-280 and 180-580 RPM
Magnet Base Size	7-1/8″ L x 3-1/2″ W
Dimensions	19″ H x 11-3/4″ L x 6-3/4″ W
Magnetic Force (1″ plate)	4500 lbs.
Arbor Bore	3/4″ Weldon Shank
Spindle	MT3
Automatic Lubrication	Included

INCLUDES:

• (1) Magnetic drilling machine
• (1) Quick-change arbor system
• (1) KEYLESS Weldon 3/4″
• (1) Manual arbor with set screws;
• (1) Weldon 3/4″; MT3
• (1) Safety chain
• (1) Drift key MT3
• (1) Tap collet adapter (1/4″)
• (1) Tap collet adapter (3/8″)
• (1) Tap collet adapter (1/2″)
• (1) Tap collet adapter ( 3/4″)
• (1) Warranty certificate
• (2) Pilot pins – 1″ and 2″ depth

“
