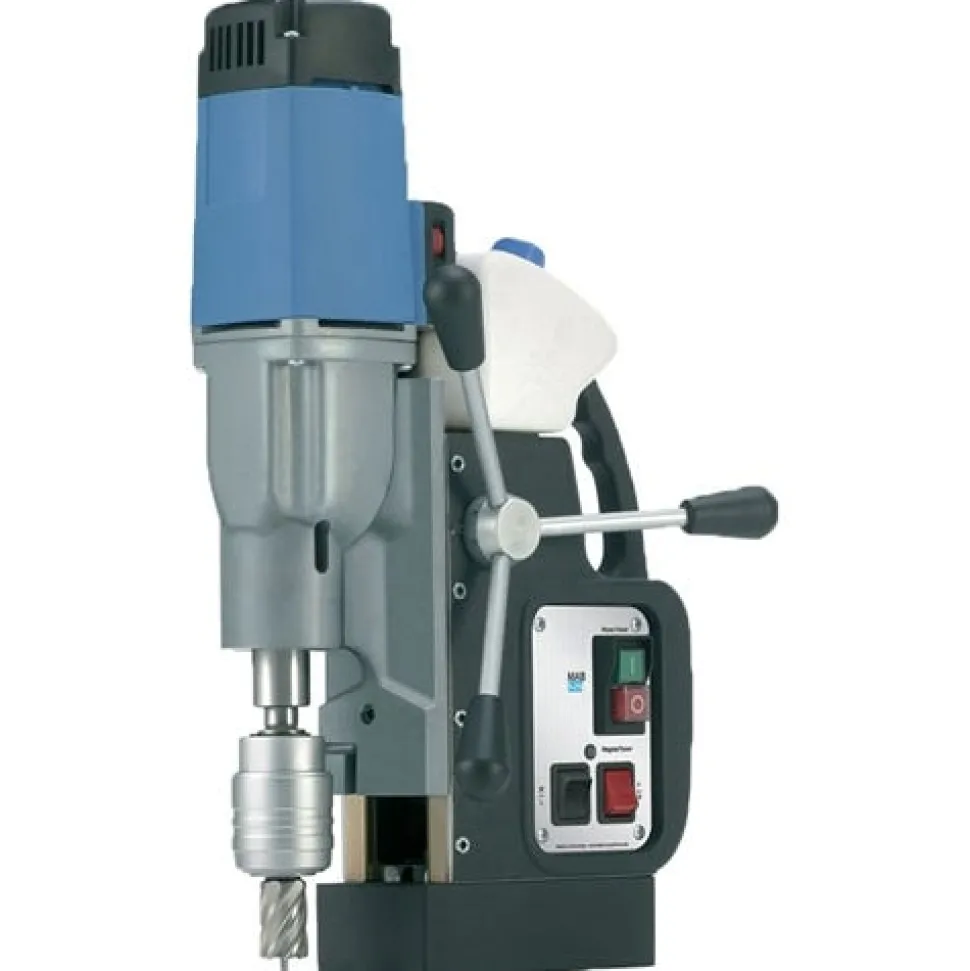

CS Unitec 2″ High Power Portable Magnetic Drill w/ Swivel Base Magnet MAB 525 SB

CS Unitec

2 High Power Portable Magnetic Drill w/ Swivel Base Magnet MAB 525 SB

The MAB 525 from CS Unitec is a high-power portable magnetic drilling machine that is ideal for production use. Equipped with a 2-speed; variable-speed; 14.5-Amp reversible motor; the MAB 525 is designed for continuous use with electronic torque control. Drill up to 2-1/2″ dia. with annular cutters.

FEATURES:

• Swivel base magnet provides movement left; right; forward & backward.
• Powerful and reliable.
• Quick-change keyless cutter system.
• Integrated cutting oil reservoir.
• Automatic internal lubrication.
• SafeMag: Green/Red LED magnetic force indicator for safe operation.
• CoolMag: Magnet overheating protection.
• Internal cable routing.
• Simple; ergonomic arrangement of controls for one-handed operation.
• Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment.
• Uses annular cutters.
• 1/2″ geared chuck for twist drilling (Included).
• Lubricants ideal for cutting steel; stainless steel and hard metals.

SPECIFICATIONS:

Motor Power	14.5 Amp / 110 Volt
Stroke	6-1/3″
Hole Capacity	2-1/2″ dia.
Twist Drill Capacity	1″ dia.
Tapping Capacity	15/16″ dia.
Speeds	70-280 and 180-580 RPM
Magnet Base Size	L: 7-1/8″ x W: 3-1/2″
Dimensions	H: 19″ x L: 11-3/4″ x W: 6-3/4″
Magnetic Force(1″ plate)	4500 lbs.
Arbor Bore	3/4″ Weldon Shank
Spindle	MT3
Automatic Lubrication	Included
Swivel Base	Included

INCLUDES:

• (1) Magnetic drilling machine
• (1) Quick-change arbor system KEYLESS Weldon 3/4″
• (1) Manual arbor with set screws; Weldon 3/4″; MT3
• (1) 3/4″ geared Jacob’s Chuck Adapter MT3 (P/N IBC 21)
• (1) Safety chain
• (1) Drift key MT3 (Order No. 5301)
• (1) Tap collet adapter (1/4″)
• (1) Tap collet adapter (3/8″)
• (1) Tap collet adapter (1/2″)
• (1) Tap collet adapter (3/4″)
• (1) Warranty certificate
• (2) Pilot pins – 1″ and 2″ depth

“
