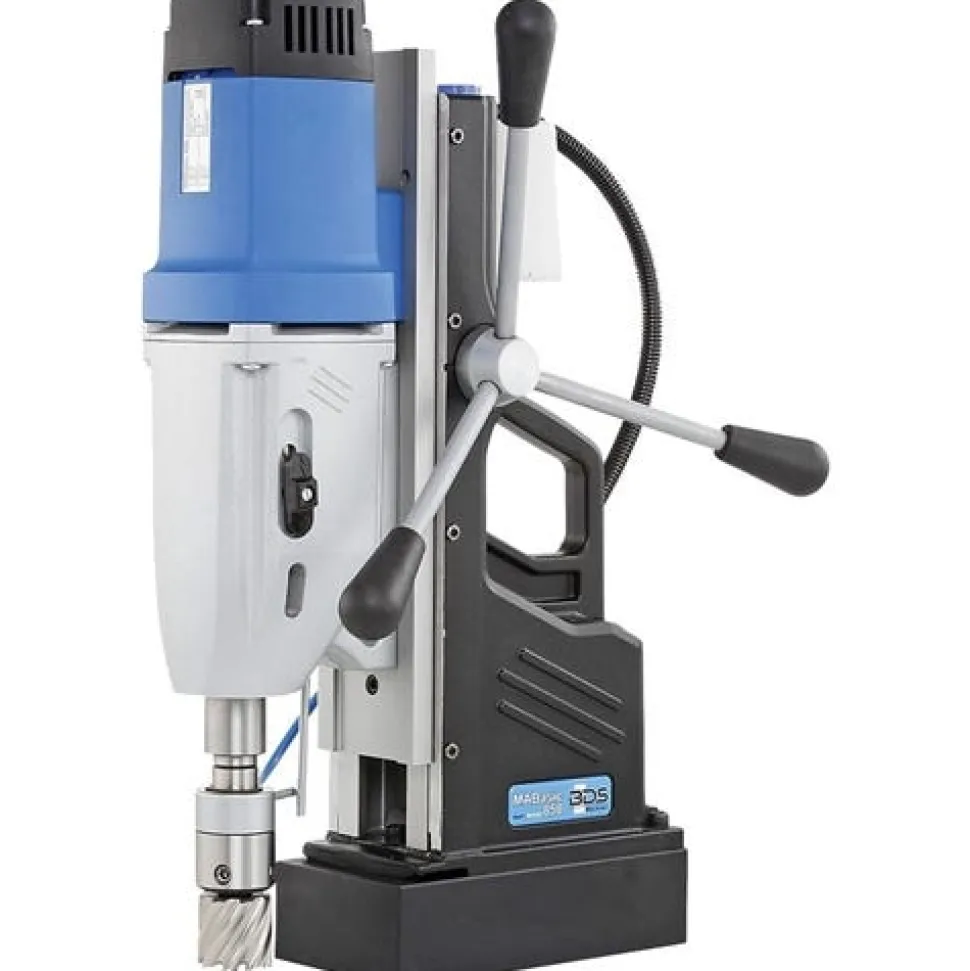

CS Unitec 3-1/16″ Four-Gear Portable Magnetic Drill MABASIC 850

CS Unitec

3-1/16 Four-Gear Portable Magnetic Drill MABASIC 850

CS Unitec’s new MABasic 850 is a professional-grade portable magnetic drill designed for continuous use. The 16-amp; double-insulated motor has a 4-speed gearbox (110; 175; 245; 385 RPM) for demanding applications requiring high power.

FEATURES:

• 4-gear; high-speed; powerful motor for demanding jobs.
• 3/4″ direct arbor with automatic cooling.
• Internal lubrication system.
• Simple; ergonomic arrangement of controls for one-handed operation.
• Uses annular cutters.
• 3/4″ geared chuck (part no. IBC 21) for twist drilling.
• Lubricants ideal for cutting steel; stainless steel and hard metals.

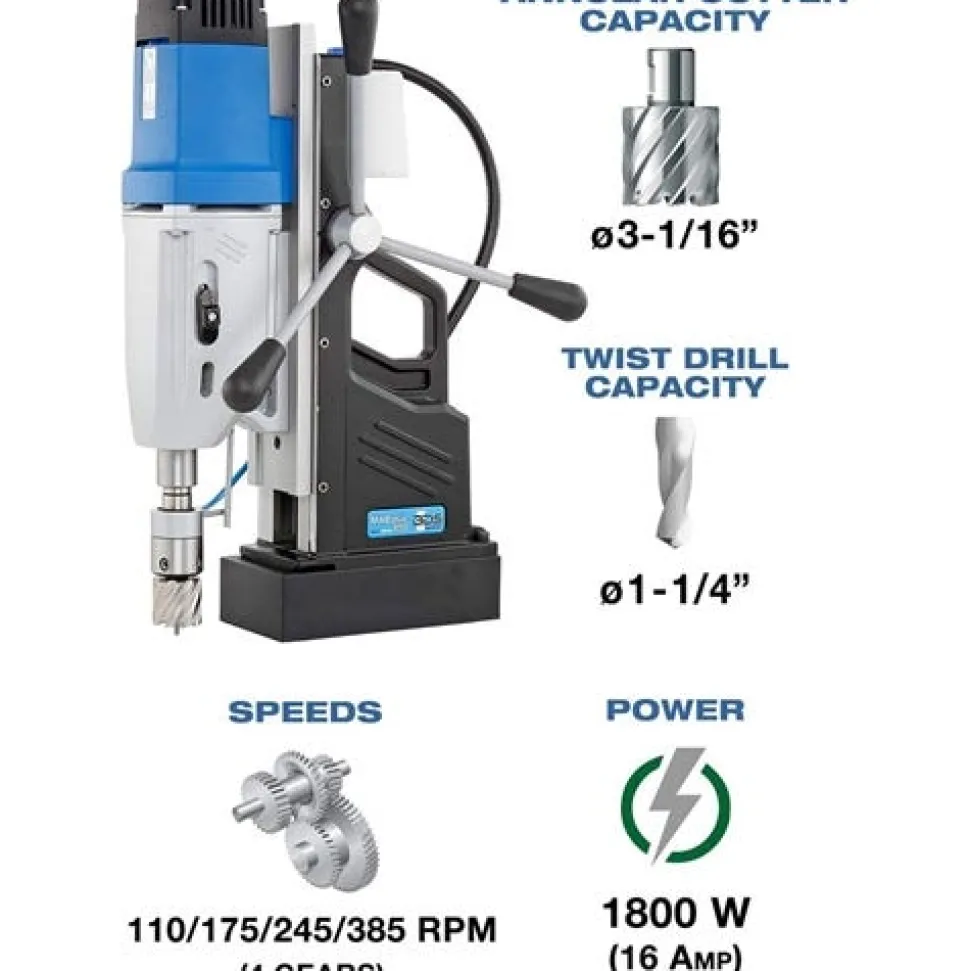

SPECIFICATIONS:

Motor Power	16 Amp / 110 Volt
Stroke	10″
Hole Capacity	3-1/16″ dia.
Twist Drill Capacity	1-1/4″ dia.
Speed #1	110 RPM
Speed #2	175 RPM
Speed #3	245 RPM
Speed #4	385 RPM
Magnet Base Size	L: 8-5/8″ x W: 4-1/3″
Dimensions	H: 19-3/8″ x L: 11-5/8″ x W: 8-1/4″
Magnetic Force (1″ plate)	6000 lbs.
Arbor Bore	3/4″ Weldon Shank
Spindle	MT3
Internal Lubrication	Included

INCLUDES:

• (1) Magnetic drilling machine
• (1) 1/2″ chuck
• (1) Pilot pin
• (1) Carrying case

“
