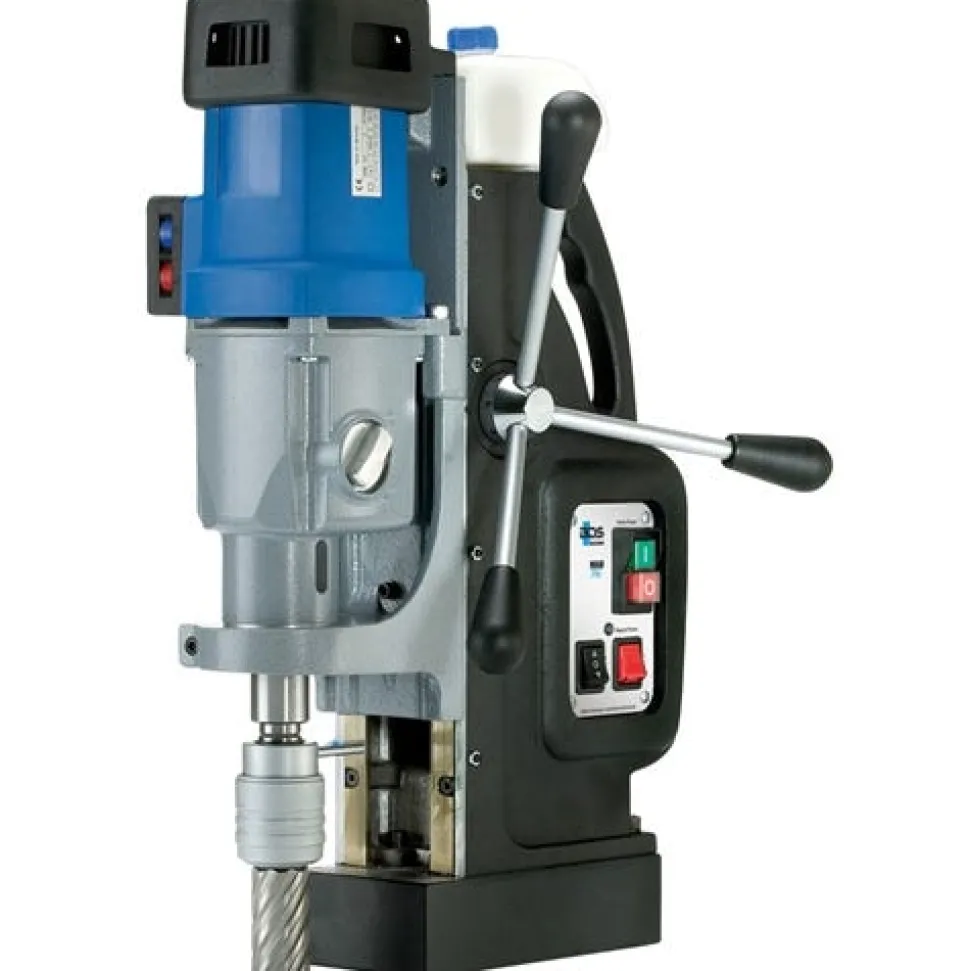

CS Unitec 4″ Portable Magnetic Drill w/ Automatic Feed MAB 825 V

CS Unitec

4 Portable Magnetic Drill w/ Automatic Feed MAB 825 V

CS Unitec’s MAB 825 portable magnetic drilling machine is ideal for steel engineering; plant construction and more. Available with automatic feed feature for production applications. Equipped with a reversible; 4-gear; variable-speed; 16-Amp motor; the MAB 825 is designed for continuous use and is great for tapping; twist drilling; reaming and countersinking.

FEATURES:

• Automatic feed for production applications.
• Powerful and reliable.
• Designed for continuous use.
• Quick-change keyless cutter system.
• Integrated cutting oil reservoir.
• Automatic internal lubrication.
• SafeMag: Green/Red LED magnetic force indicator for safe operation.
• CoolMag: Magnet overheating protection.
• Internal cable routing.
• Simple; ergonomic arrangement of controls for one-handed operation.
• Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment.
• TCT Carbide Cutters.
• 3/4″ geared chuck (part no. IBC 21) for twist drilling.
• Heavy-duty tap holders.
• Quick-change tapping chucks.
• Tap collets and reducing adapters.
• Lubricants ideal for cutting steel; stainless steel and hard metals.

SPECIFICATIONS:

Motor Power	16 Amp / 110 Volt
Hole Capacity	4-1/16″ dia.
Twist Drill Capacity	1-1/4″ dia.
Tapping Capacity	1-1/8″ dia.
Stroke	10″
Speed #1	40-110 RPM
Speed #2	65-175 RPM
Speed #3	140-360 RPM
Speed #4	220-600 RPM
Magnet Base Size	L: 8-5/8″ x W: 4-1/3″
Dimensions	H: 18-5/8″ x L: 14-7/16″ x W: 9-7/16″
Magnetic Force (1″ plate)	6600 lbs.
Arbor Bore	3/4″ and 1-1/4″ Weldon Shank; standard
Spindle	MT3 (optional)
Automatic Lubrication	Included
Automatic Feed	Included

INCLUDES:

• (1) Magnetic drilling machine
• (1) Quick-change arbor system KEYLESS Weldon 3/4″
• (1) Manual arbor with set screws; Weldon 3/4″; MT3
• (1) Safety chain
• (1) Hexagon socket screw key SW 6
• (1) Drift key MT3
• (1) Warranty certificate
• (4) Pilot pins – 1″; 2″; 3″ and 4″ depth

“
