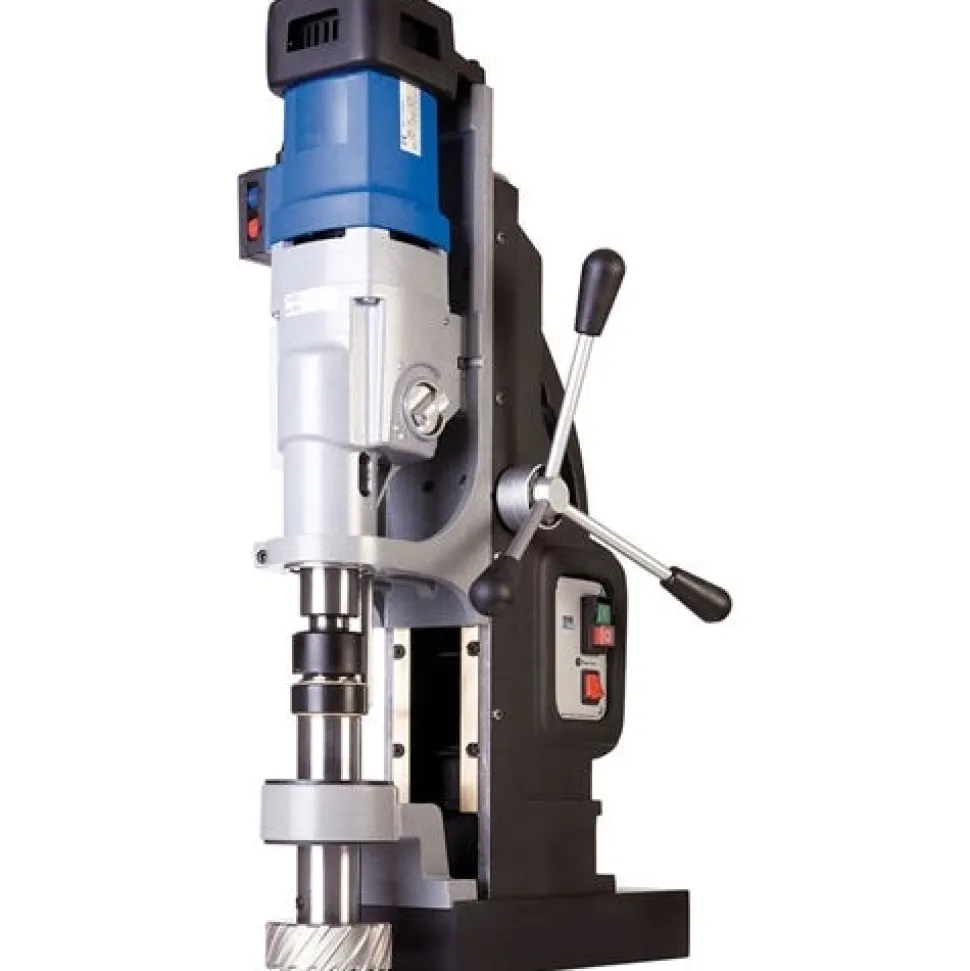

CS Unitec 5-1/8″ Portable Magnetic Drill w/ Automatic Feed MAB 1300 V

CS Unitec

5-1/8 Portable Magnetic Drill w/ Automatic Feed MAB 1300 V

The MAB 1300 V Magnetic Drill is equipped with an automatic feed and reverse attachment. Auto feed functionality makes this robust drills ideal for production applications. This drill has the largest capacity mag drill in the industry; 6″ dia.

FEATURES:

• Largest capacity mag drill in the industry – 6″ dia.*
• Powerful and reliable.
• Automatic feed for production applications.
• Designed for continuous use.
• Integrated cutting oil reservoir.
• Automatic internal lubrication.
• SafeMag: Green/Red LED magnetic force indicator for safe operation.
• CoolMag: Magnet overheating protection.
• Internal cable routing.
• Simple; ergonomic arrangement of controls for one-handed operation.
• Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment.
• TCT Carbide Cutters.
• 3/4″ geared chuck (part no. IBC 21) for twist drilling.
• Heavy-duty tap holders.
• Quick-change tapping chucks.
• Tap collets and reducing adapters.
• Lubricants ideal for cutting steel; stainless steel and hard metals.

SPECIFICATIONS:

Motor Power	20 Amp / 110 Volt
Stroke	12″ without retainer
Hole Capacity	6″ dia.*
Twist Drill Capacity	1-3/4″ dia.
Tapping Capacity	1-5/8″ dia.
Speed #1	30-80 RPM
Speed #2	50-120 RPM
Speed #3	130-350 RPM
Speed #4	210-550 RPM
Magnet Base Size	W: 4-3/4″ x H: 14″
Dimensions	H: 34-1/2″ x L: 19-1/2″ x W: 10″
Magnetic Force (1″ plate)	23;600 lbs.
Arbor Bore	1-1/4″ (3/4″ adapter included)
Spindle	MT4
Automatic Lubrication	Included
Automatic Feed	Included

INCLUDES:

• (1) Automatic-feed magnetic drilling machine
• (1) Carrying case on wheels
• (1) Arbor adapter to 3/4″ Weldon
• (1) Safety chain
• (1) Hexagon socket screw key SW 6
• (1) Drift key MT4
• (1) Operating manual
• (1) Warranty certificate

“
