CS Unitec Eibenstock 14″ 3-Speed Electric Wet/Dry Core Drill 20 Amp (Motor Only) EBM 352/3P”

CS Unitec

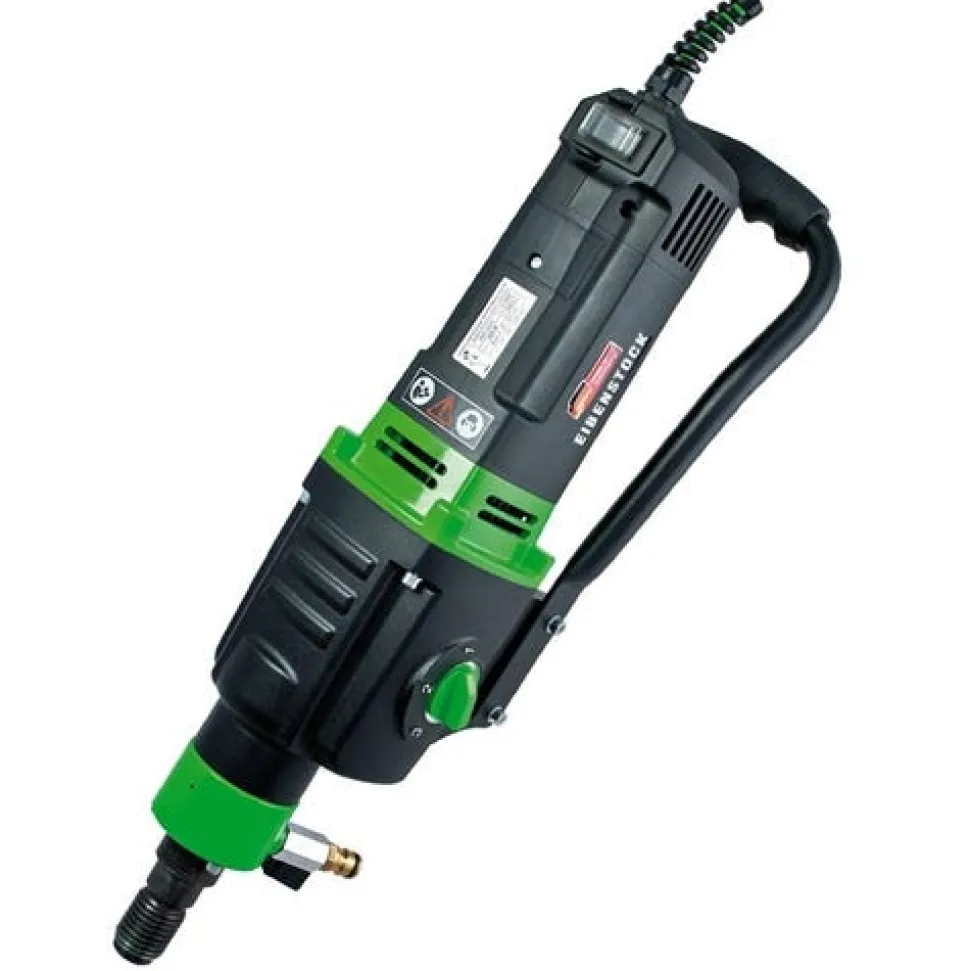

14 Electric Wet/Dry Diamond Core Drill (Drill Only) EBM 352/3P

The EBM 352/3 PSA (20 Amp 3-speed motor with combination anchor/vacuum stand) drills holes up to 14″ diameter in concrete; reinforced concrete; asphalt and natural stone. The motor can also be mounted on a variety of drill rigs.

FEATURES:

• Powerful 20 Amp motor with high power reserves and a long lifetime.
• 3-speed oil bath gearbox – for optimal lubrication in all working positions; due to the developed oil pump.
• Mechanical safety clutch.
• Dovetail slide mount– fasten the motor to the drill rig without any tools. Also mounts to a variety of drill stands.
• Integrated bubble levels on the motor.
• Temperature control and over current cut-off; optical overload indication; constant speed.
• Service-LED – lights up approx. 10 working hours before the carbon brushes need to be replaced.
• Wet drilling in reinforced concrete; natural stone and asphalt.
• Ideal for plumbing; mechanical; electrical and general construction; as well as civil engineering.

SPECIFICATIONS:

Power input	20 Amp
Rated Voltage	110 V
Load Speeds (RPM)	230/500/1030
Maximum Drilling Dia.	14″
Spindle Connection	1-1/4″x7 UNC 5/8″x11 UNC
Machine Connection to Stand	Universal tool holder/ Slide mount
Supplied	In a box with open end wrench SW 32+41

“
