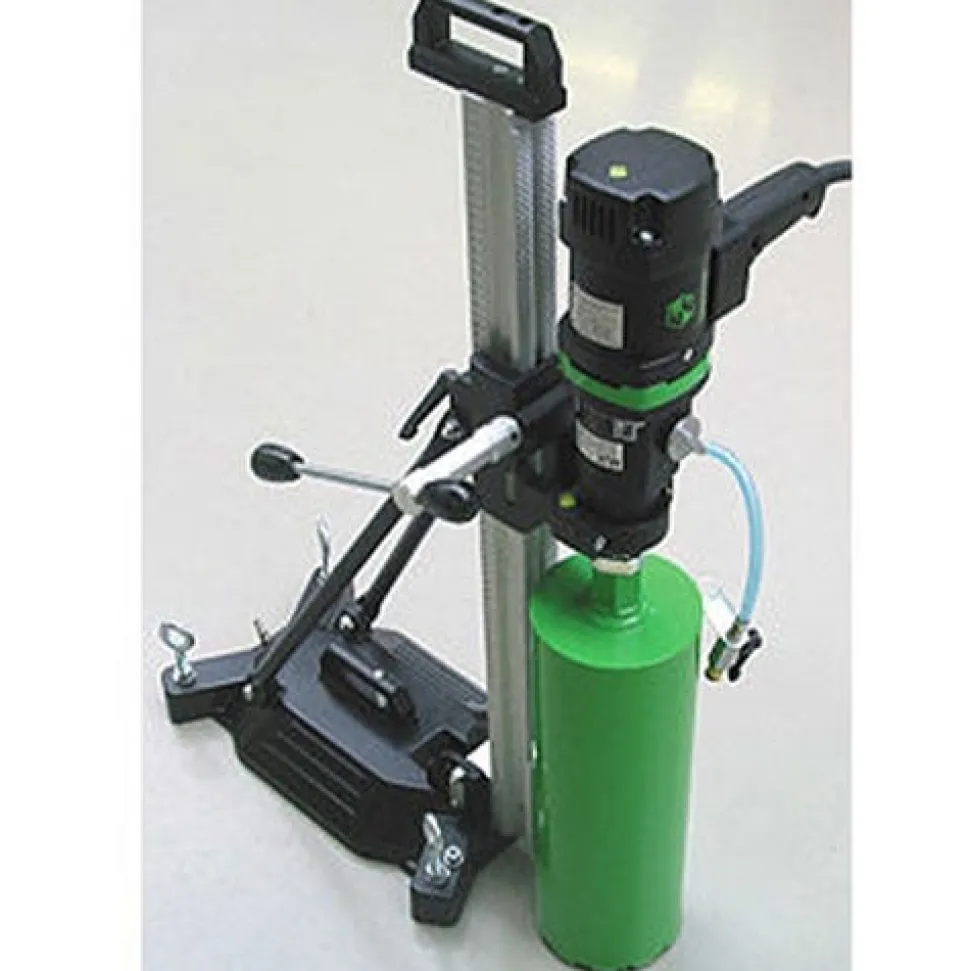

CS Unitec Eibenstock 6″ 3-Speed Diamond Core Drill w/ BST 104/60 V Anchor Stand END130/3.2 POSA

CS Unitec

3-Speed 6 Diamond Core Drill w/ BST 104/60 V Anchor Stand END130/3.2 POSA

The Diamond Core Drill combines a robust all-aluminum housing with a compact size and powerful 15 AMP motor. The heavy-duty design and power reserve make it suitable for continuous use. Use hand-held for up to 3-1/4″ diameter and/or rig-mounted for up to 6″ diameter. The mechanical 3-speed gearbox allows the operator to select the best speed for the core bit diameter. The result is optimum drilling and longer tool life.

FEATURES:

• 3-speed oil bath gearbox – optimal lubrication.
• Short; compact design for tight spaces.
• All-aluminium housing.
• Integrated level bubble on motor and handle for 90° drilling.
• Side handle with connection for centering device or water collection.
• Overload temperature control and GFCI overcurrent cut-off.
• Overload indicator light turns red when motor is overloaded – allows operator to reduce the feed pressure and protect the motor.
• Cut-off carbon brushes – protects the motor.
• All models include a built-in leveling bubble; safety slip clutch; carrying case; water swivel; overload signal and Ground Fault Interrupter. Connecting threads of 5/8″ x 11 UNC; 1-1/4″x 7 UNC and G1/2″ fit all standard core bits.

SPECIFICATIONS:

Power input	15 Amp
Rated Voltage	110 V
Load Speeds (RPM)	600 / 1300 / 2800
No-Load Speeds	1000 / 2200 / 4300
Drilling Diameter	Gear 1 – 3-1/4″-6″* Gear 2 – 1-3/4″-3-1/4″ Gear 3 – 1/2″-1-3/4″ *with drill rig*
Spindle Connection	1-1/4″x7 UNC 5/8″x11 UNC
Collar Diameter	60mm
Supplied	END 130/3.2 PO with anchor stand BST 104/60 V & 60mm motor mount

“
