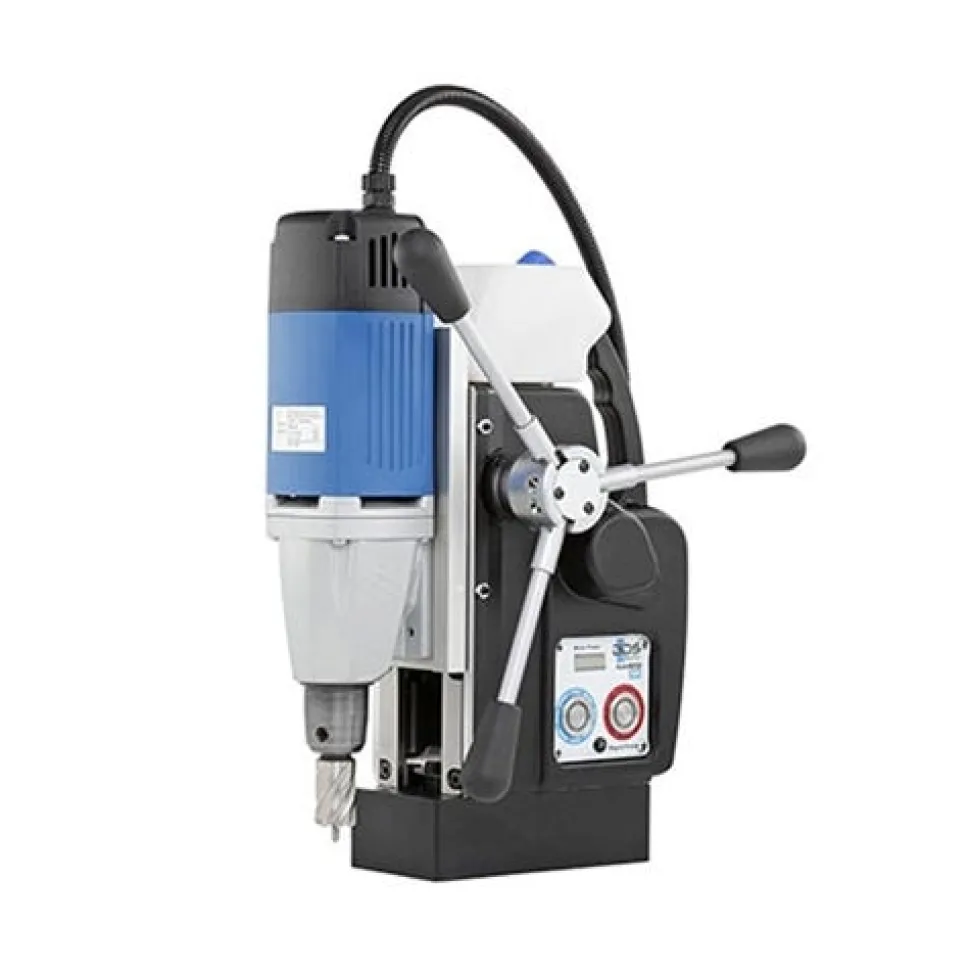

CS Unitec Magnetic Drill 1-1/2 Automatic IN & OUT AutoMAB 350

CS Unitec

Magnetic Drill 1-1/2 Automatic IN & OUT AutoMAB 350

FEATURES:

• 10.5 Amp doubleinsulated motor
• 3/4″ direct arbor
• Uses annular

cutters up to1-1/2″ dia.

• Twist drillingcapacity upto 1/2″ dia.
• 3-1/3″ strokewith chuck
• Optional1/2″ chuck – Not Included
  (PartNo. IBC 18); theAutoMAB 450easily convertsto a standarddrill press forconventional twistdrills. An optional3/4″ geared chuckis also available(Part No. IBC 22).

SPECIFICATIONS:

Motor Power	10.5 Amp / 110 Volt
Weight	33 lbs.
Stroke	6″
Hole Capacity	1-1/2″ dia.
Drilling Depth	2-3/8″ with pilot pin; 4-3/8″ without pilot pin
Speed	460 RPM
Magnet Base Size	6-5/8″ L x 3-1/3″ W
Dimensions	12-1/4″ H x 8-3/4″ L x 7-3/4″ W
Magnetic Force (1″ plate)	3750 lbs.
Arbor Bore	3/4″ Weldon Shank

INCLUDES:

• 1 Magnetic drilling machine
• 1 Steel carrying case
• 1 Operating manual
• 1 Warranty certificate
• Standard Equipment also includes auto lubrication; safety strap; carabin hook and allen keys.

“
