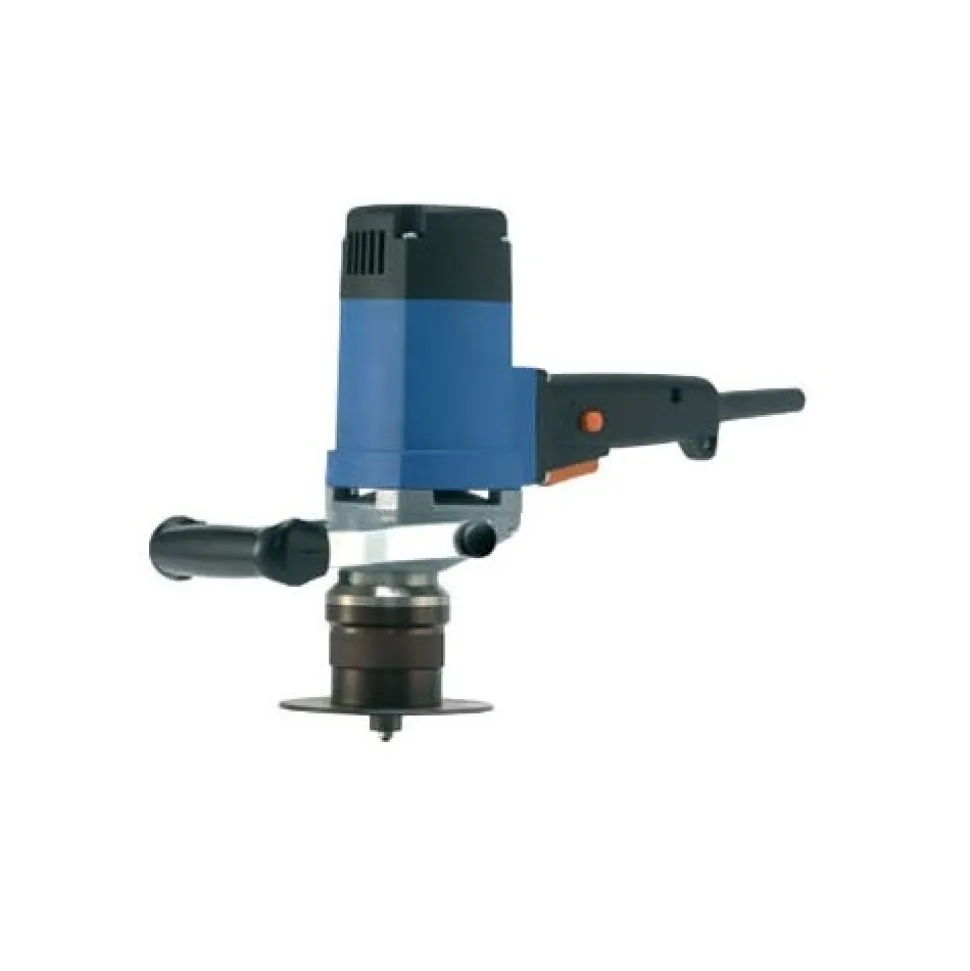

- EKF 452.3 comes with 3/16″ radius
- Bevel; deburr & chamfer edges of steel plate faster and cleaner than angle grinders
- The EKF multi-purpose beveling machine is designed to bevel 30 or 45 weld seams on steel; stainless steel; nonferrous metals; brass and plastics. It can also be used to deburr and chamfer; straighten edges; internal and external radii; and countersink holes from 7/8″ diameter.Â
- Fine adjustment feature for slight chamfers when deburring for the preparation of weld seams
- Three milling heads 30; 45 and radius R2.5 are available
- Ideal for the following applications: Moldmaking (straighten edges; internal and external radii and countersink holes from 7/8″ dia.); Boiler and process plant construction (prepare weld seams on heat exchangers); Mechanical engineering (deburr machine parts; chamfer edges to protect against paint peeling and create visible edges); Sheet metal (deburr cut edges)Â
- Model No.: Â EKF300 EKF450 EKF452Â
- Beveling Angle*:  30 45 R 2.5 radius (optional heads)Â
- Bevel Width (max.)**: 1/4″
- Motor Power: 10 AmpÂ
- Voltage: All machines: 110 VÂ (220 V / 50 Hz also available)Â
- Cutting Speed: 3000 SFPMÂ
- Dimensions (LxWxH): Â 12-1/4″ x 5-1/2″ x 11-5/8″Â Â
“
| OPT SKU | CSEKF 452.3 |
|---|---|
| MPN | EKF 452.3 |
| Product Type | Bevelers |
| Google Category | Hardware > Tools |
| Power Method | Corded/Electric |
| Voltage | 110V/120V |
| Shipping Weight | 10.50 |
