CS Unitec

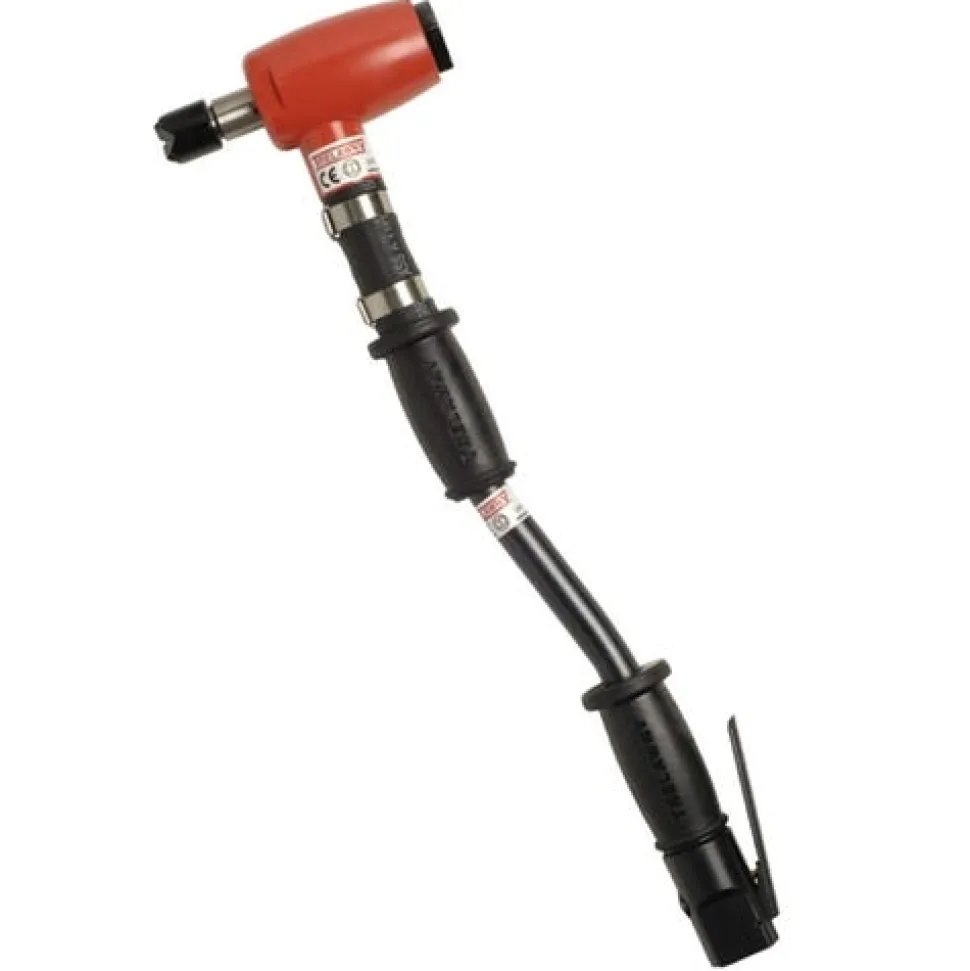

VLSF1 & TCT Cruciform Piston Low-Vibration Single Head Pneumatic Hand-Held Scaling Hammer 196.5095
CS Unitec’s Trelawny line of pneumatic hand-held scaling hammers are ideal tools for the removal of thick scale; heavy corrosion and hard coatings. CS Unitec’s Trelawny SingleHead Hand-Held scaler operates with 7x less vibration than standard models. This tool utilizes vibration damping components to offset the hammer vibration created when the head impacts the workpiece.
FEATURES:
- Single-head scaling hammer includes Vibro-Lo vibration reduction technology – 8x less vibration than standard tools.
- Utilizes vibration damping components to offset the hammer vibration created when the head impacts the workpiece.
- Optional spark-resistant copper beryllium replacement heads reduce risk of explosion in potentially hazardous areas.
- Detachable taper fit cutter head reduces cost of replacement and extends piston life.
APPLIATIONS:
- Pipes
- Ship Decks
- Oil Platforms
- Storage Tanks
- Bridge Structures
SPECIFICATIONS:
| Blows per minute | 3000 |
|---|---|
| Production rate | 50 sq. ft./hour |
| Cutter life | 5;300 sq. ft. |
| Air Consumption | 7 CFM @ 90 PSI |
| Noise Level | 88.1 dB(a) |
| Dimensions (LxH) | 19 x 5.5″ |
| Vibration Levels (m/s^2) | 3.7 |
| IMPA | 590384 |
| ISSA | 5509320 |
“
| OPT SKU | CS196.5095 |
|---|---|
| MPN | 196.5095 |
| Product Type | Needle Scalers & Chisel Hammers |
| Google Category | Hardware > Tools > Hammers > Powered Hammers |
| Power Method | Air/Pneumatic |
| Shipping Weight | 7.00 |
