DeWalt

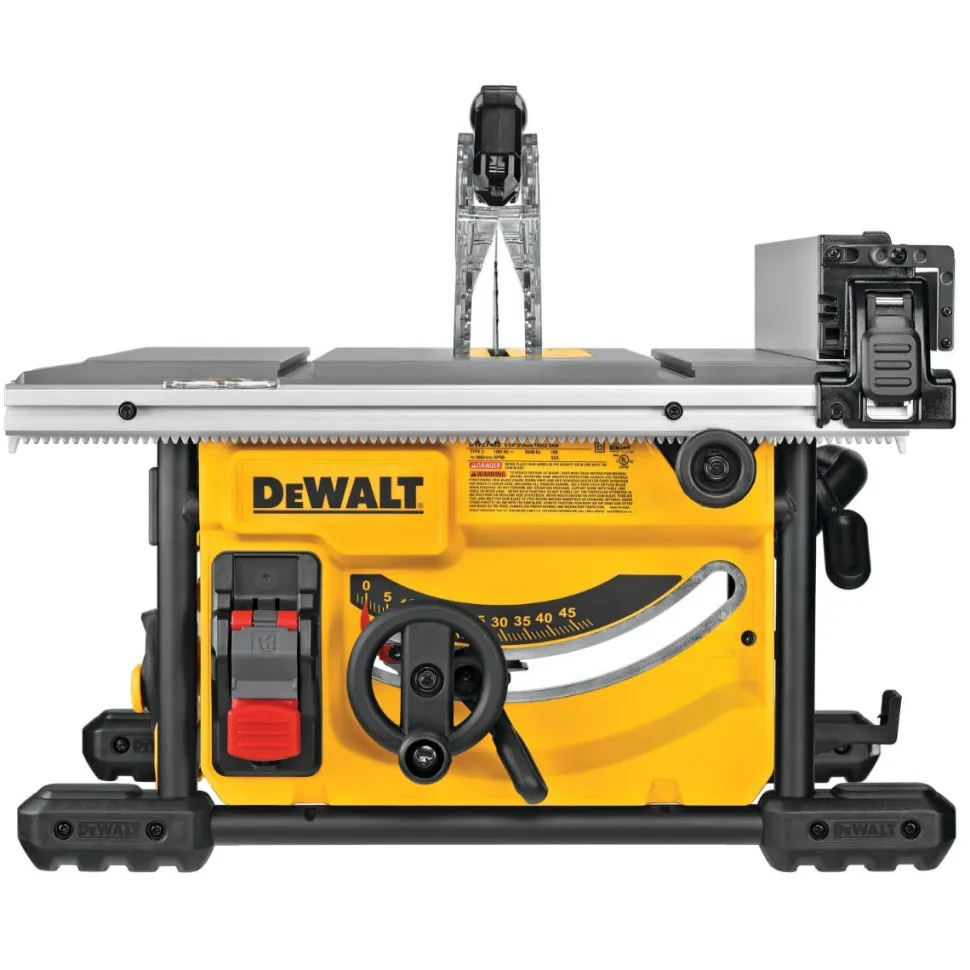

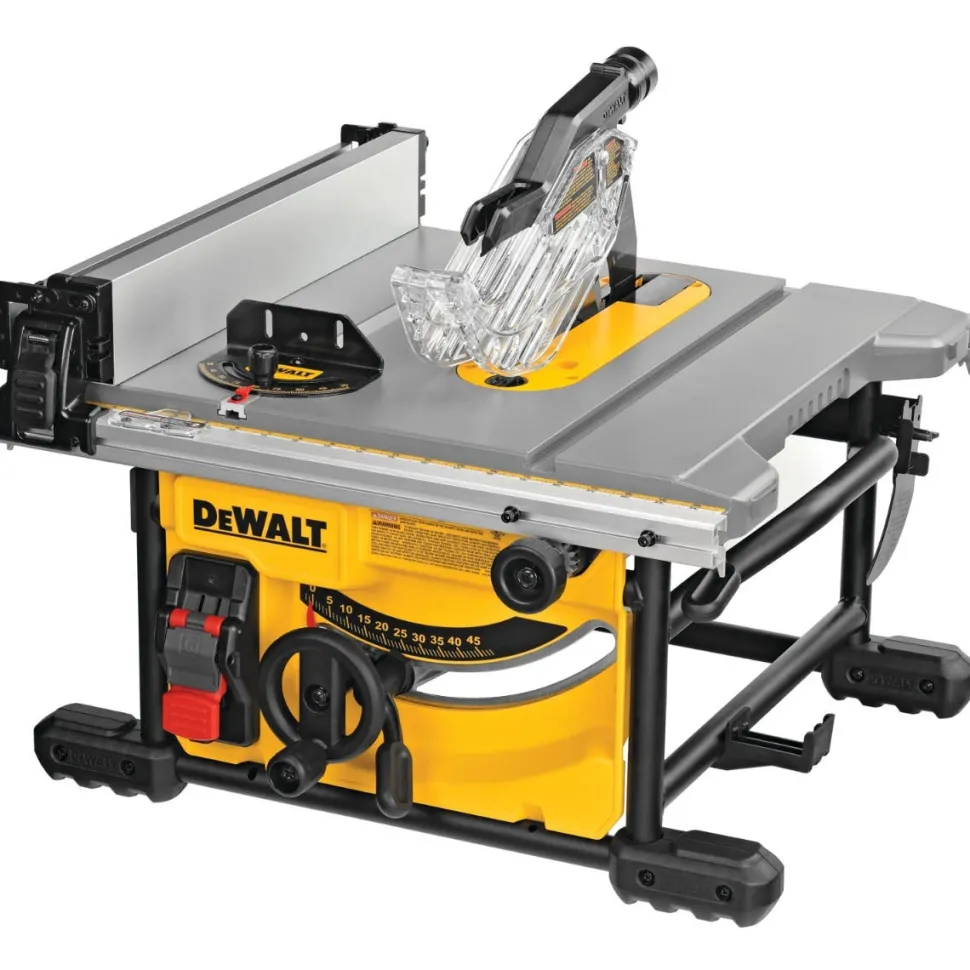

8-1/4″ Compact Jobsite Table Saw DWE7485
Maximized for accuracy and capacity, this 8-1/4 in. Table Saw includes on-board storage for the blade guard assembly, non-through cut riving knife, anti-kickback pawls, blade-change wrenches, miter gauge, and push stick. The powerful 15 Amp, 5800 rpm motor allows users to complete a majority of applications. The rack & pinion fence allows for fast, easy adjustments and provides the capacity to rip 4×8 sheet goods.
FEATURES:
- Compact size for easy transportation and storage.
- Rack & pinion telescoping fence rails make fence adjustments fast, smooth, and accurate.
- 24.5 in. of rip capacity for ripping 4×8 plywood or OSB sheets.
- Power-loss reset prevents accidental restarts following a power disruption when the tool is left in the on position.
- Blade brake.
- On-board storage for guard, fence, wrenches, and miter gauge.
- Metal roll cage base for jobsite durability.
- Site-Pro Modular Guarding System allows for tool-free adjustments of the guarding.
SPECIFICATIONS:
| Amps | 15 Amps |
| Blade Diameter | 8-1/4″ |
| Depth of Cut at  90° | 2-9/16″ |
| For Wood Cutting | Yes |
| Max Rip to Right of Blade | 24.5″ |
| Tool Height | 13″ |
| Tool Weight | 46 lbs. |
| Arbor Size | 5/8″ |
| Depth of Cut at 45° | 1-3/4″ |
| Dust Port Diameter | 2.5″ |
| Max Rip to Left of Blade | 12″ |
| No Load Speed | 5800 RPM |
| Tool Length | 22.75″ |
Â
INCLUDES:
(1)Â DWE7485 8-1/4 in. Table Saw
(1) Fence
(1) Anti-Kickback Pawls
(1) Miter Gauge
(1) Push Stick
(1) 8-1/4 in. Blade
(1) Non-Through Cut Riving Knife
(2) Blade-Change Wrenches
(1) Modular Guard System
| Mower Deck Width | 14.188 in |
|---|---|
| ETL Listed | No |
| UL Listed | Yes |
| Blade Speed | 5800 rpm |
| Blade Diameter | 8 1/4 in |
| Weight | 53.400 lbs |
| Powered Tool Power Source | Electric – Corded |
| CSA Certified | No |
| Anti-Vibration Handle | No |
| Country of Origin | Taiwan |
| Phase | Single-phase |
| Maximum Length | 2.2 ft |
| Depth Adjustment | Yes |
| Cordless / Corded | Corded |
| Additional Contents | DWE7485 8-1/4 in Table Saw; Fence; Anti-Kickback Pawls; Miter Gauge; Push Stick; 8-1/4 in Blade; Non-Through Cut Riving Knife; (2) Blade-Change Wrenches; Modular Guard System |
| Maximum Cut Depth @ 90° | 2.5625 in |
| Maximum RPM – No Load – Corded | 5800 RPM |
| Maximum Cut Depth @ 45° | 1.75 in |
| Package Contents | DWE7485 8-1/4 in Table Saw, Fence, Anti-Kickback Pawls, Miter Gauge, Push Stick, 8-1/4 in Blade, Non-Through Cut Riving Knife, (2) Blade-Change Wrenches, Modular Guard System |
| Speed Range High | 5800 RPM rpm |
| Width | 14.188 in |
| Color / Finish | Black |
| Length | 26.750 in |
| Saw Blade Diameter | 8 1/4 in in |
| Included Accessories | DWE7485 8-1/4 in Table Saw; Fence; Anti-Kickback Pawls; Miter Gauge; Push Stick; 8-1/4 in Blade; Non-Through Cut Riving Knife; (2) Blade-Change Wrenches; Modular Guard System |
| Height | 27.250 in |
| Spindle Lock | No |
| Net Tool Weight | 53.400 lbs |
| Bevel Capacity | 47 ° |
| Maximum Cutting Depth | 2.5625 in |
| Rear Turf Wheels | No |
| Manufacturer Warranty | 3 Year Limited Warranty / 1 Year Free Service / 90 Days Satisfaction Guaranteed |
| Arbor Size | 0.625 in |
| OPT SKU | DW-DWE7485 |
|---|---|
| MPN | DWE7485 |
| UPC/GTIN | 885911656450 |
| Product Type | Table Saws |
| Google Category | Hardware > Tools > Saws > Table Saws |
| Diameter | 8-1/4″ |
| Power Method | Corded/Electric |
| Voltage | 110V/120V |
| Shipping Weight | 46.00 |
