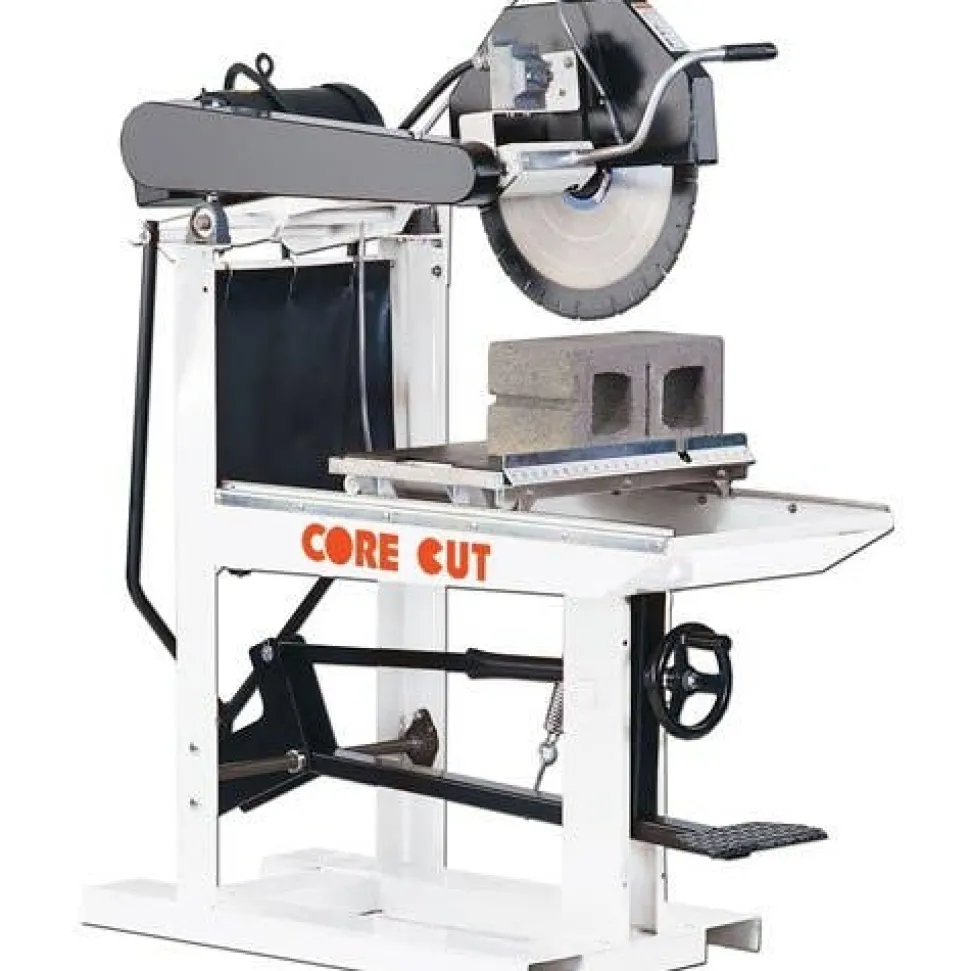

Diamond Products 20″ Core Cut 5HP Electric CC850ME1-20 Block Saw 46820

$134.99

SKU: SKUmxs2BgQsBN Categories: Concrete & Masonry Saws, Power Tools Tag: Diamond Products Brand: Diamond Products

Description
Reviews (0)

Additional Details

Diamond Products

20 5 HP Electric Block Saw CC850ME1-20 46820

FEATURES:

24 blade cuts a 10 block in a single pass
Variety of power options
Stay level blade guard and enclosed blade shaft
Replaceable cart travel rails
Durable 3/16 steel frame
Includes water pump
Easy rolling 16 x 25 aluminum cutting cart/tray with vulcanized rubber coated non-slip top
Large capacity; deep tapered water tray
Foot pedal controlled operating head leaves the operators hands free to guide material
Hand wheel for quick and easy blade cutting depth adjustment
Enclosed cart wheels prevent damage
Forklift opening for easy transport
2 V-belts promote efficient delivery of power to the blade
Open back design for rip cutting longer materials
Counterbalanced stay level blade guard assures the head is parallel to the cutting cart at all times

SPECIFICATIONS:

Maximum Depth of Cut:	8 with 20 blade; 10 with 24 blade
Arbor Diameter:	1
Blade Shaft Bearings:	Flange block ball bearings
Blade Shaft Drive:	2 premium grip notch v-belt
Blade Raise/Lower:	Counterbalanced; spring tensioned head pivots on two 1 flange block bearings
Blade Coolant:	Dual spray tubes; pump fed (elecZZic models); garden hose connection (gas models)
Air Filter:	3-stage cyclone (gas models)
Fuel Capacitor:	1 gallon (gas models)
High Temp Shut-off:	Included (elecZZic models)
Starter:	Recoil on gas models; capacity on electric models

Blade Capacity	Sawing Engine/Motor Make	Motor/Engine Power	Electric Start	Power Source	Part Number	Catalog Number
20	Baldor	5 HP-1PH; 230V	No	Electric	5800540	46820
20	Baldor	5 HP-3PH; 230V	No	Electric	5800541A	96416
20	Baldor	5 HP -3PH; 460V	No	Electric	5800541B	18533
20	Baldor	7.5 HP-1PH; 230V	No	Electric	5800542	47664
20	Baldor	7.5 HP-3PH; 230V	No	Electric	5800544A	96015
20	Baldor	7.5 HP-3PH; 460V	No	Electric	5800544B	936
24	Baldor	7.5 HP-1PH; 230V	No	Electric	5800543	470
24	Baldor	7.5 HP-3PH; 230V	No	Electric	5800545A	97240
24	Baldor	7.5 HP-3PH; 460V	No	Electric	5800545B	97000
20	Honda GX270	8 HP; 14.1 torque (lbs.-ft.)	No	Gas	5800546	47024
20	Lifan LF177F	9 HP	No	Gas	5801107	33971
20	Honda GX390	11 HP; 19.5 torque (lbs.-ft.)	No	Gas	5800547	47047
24	Honda GX390	11 HP; 19.5 torque (lbs.-ft.)	No	Gas	5800548	47046
20	Honda GX390	11 HP; 19.5 torque (lbs.-ft.)	Yes	Gas	5800566	60933
24	Honda GX390	11 HP; 19.5 torque (lbs.-ft.)	Yes	Gas	5800567	81160

“

Specifications

More Information
OPT SKU	DP46820
MPN	46820
UPC/GTIN	603461468206
Product Type	Concrete & Masonry Saws
Google Category	Hardware > Tools > Saws > Masonry & Tile Saws
Diameter	20″
Power Method	Gas
Shipping Weight	500.00
