Diamond Products Core Cut 14″ Concrete Saw Propane 23HP CC1823BVXLP-14S Walk-Behind 101227

Diamond Products

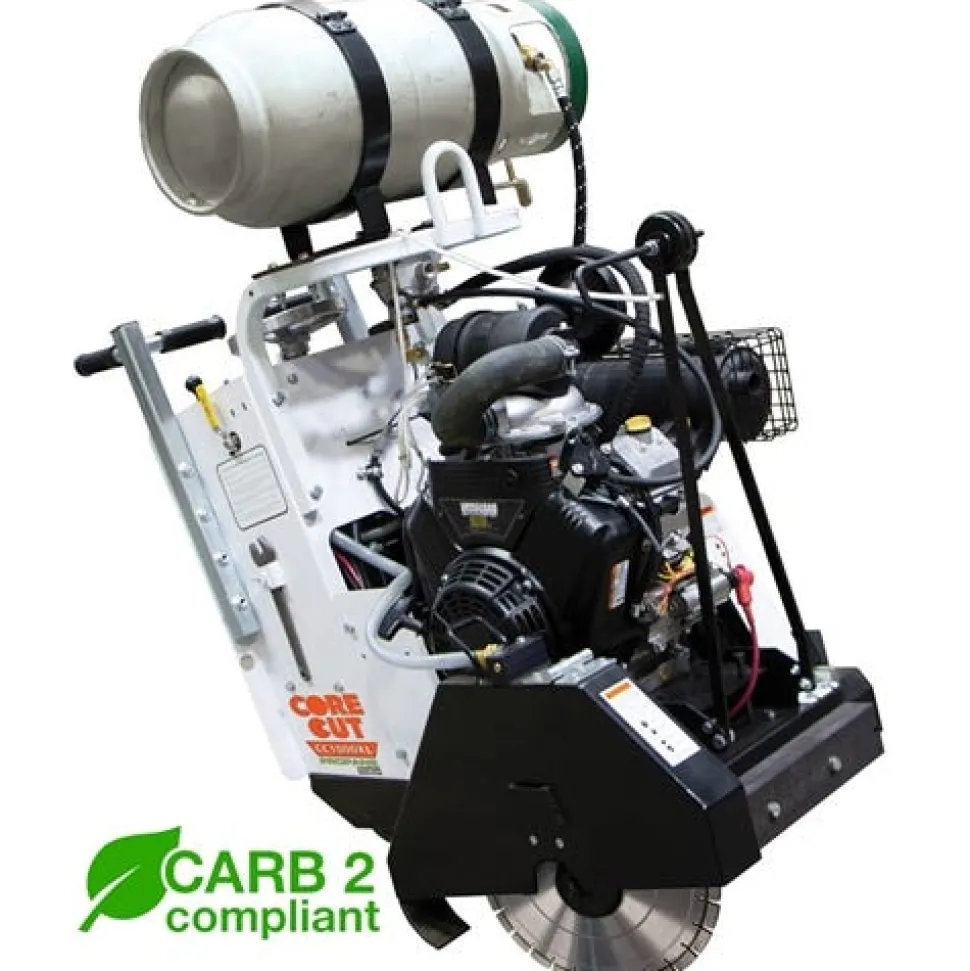

Propane 14 Concrete Walk Behind Saw CC1823BVXLP-14S

This electric start; propane walk behind saw is built with the 23 HP Briggs Vanguard engine converted to propane vapor draw. The 20 lb. propane tank is horizontally-mounted and includes a low oil alert feature. There is easy access to the battery with a heavy-duty isolator switch to prevent battery drain. Weighing in at 480 lbs.; the CC1823BVXLP-14 model features self-propelled travel for easy cutting. This saw is compatible with a 14″ blade.

FEATURES:

• Briggs Vanguard engine converted to propane vapor draw.
• Horizonally-mounted 20 lbs. propane tank.
• Self-propelled travel for easy cutting.
• Easy access to battery with a heavy-duty isolator switch to prevent battery drain.
• Screw feed raise and lower system.
• Lifting hook standard on all models.
• Self-aligning blade shaft bearings.
• Includes: electric start; low oil alert; and hour meter.

SPECIFICATIONS:

Max Depth of Cut with 14″ Blade	4-4/8″
Blade Shaft RPM	2;600
Blade Shaft Diameter	1-1/4″
Arbor Size	1″ with single drive pin
Blade Shaft Drive	4 belts
Blade Mounting	Right or left
Transmission	Eaton Model 6
Drive Speed	0-80 feet per minute
Fuel Tank Size	20 pound
Wheel Dimension	5″ x 1-1/2″ x 3/4″ (Front); 6″ x 1/-1/2″ x 5/8″ (Back)
Engine Power	23 HP
Weight (lbs.)	480

“
