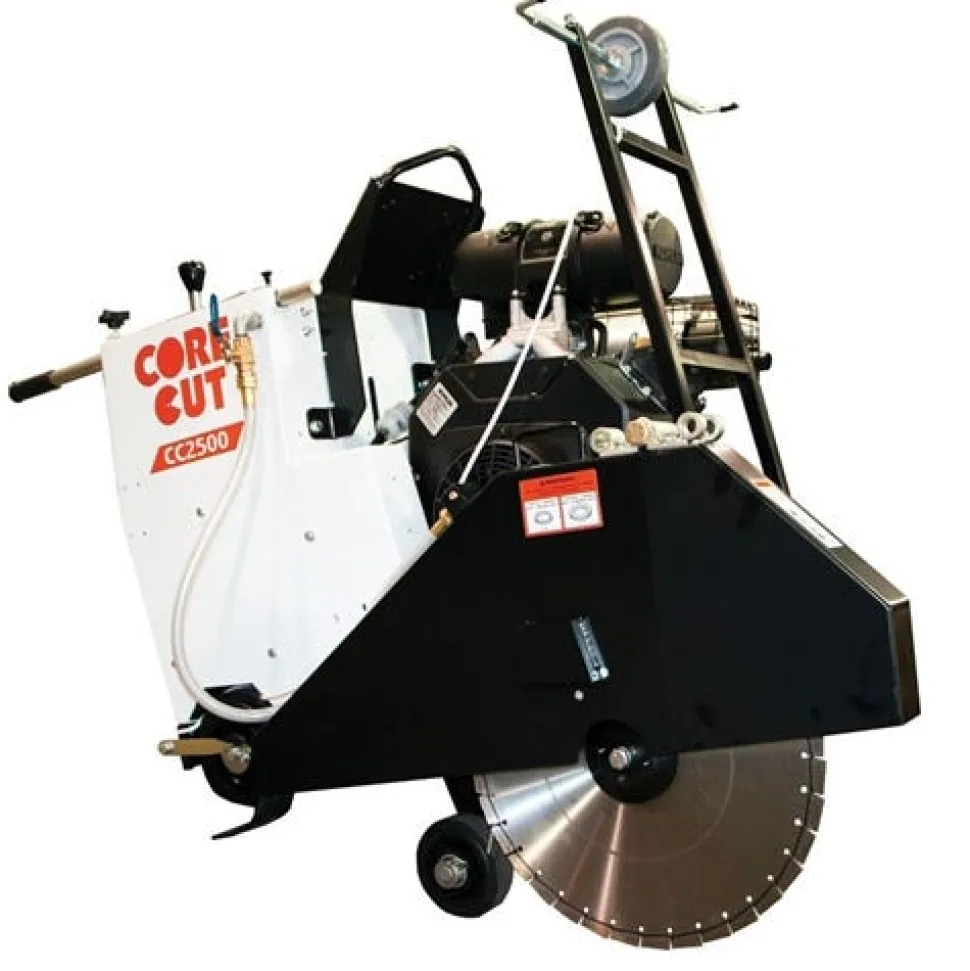

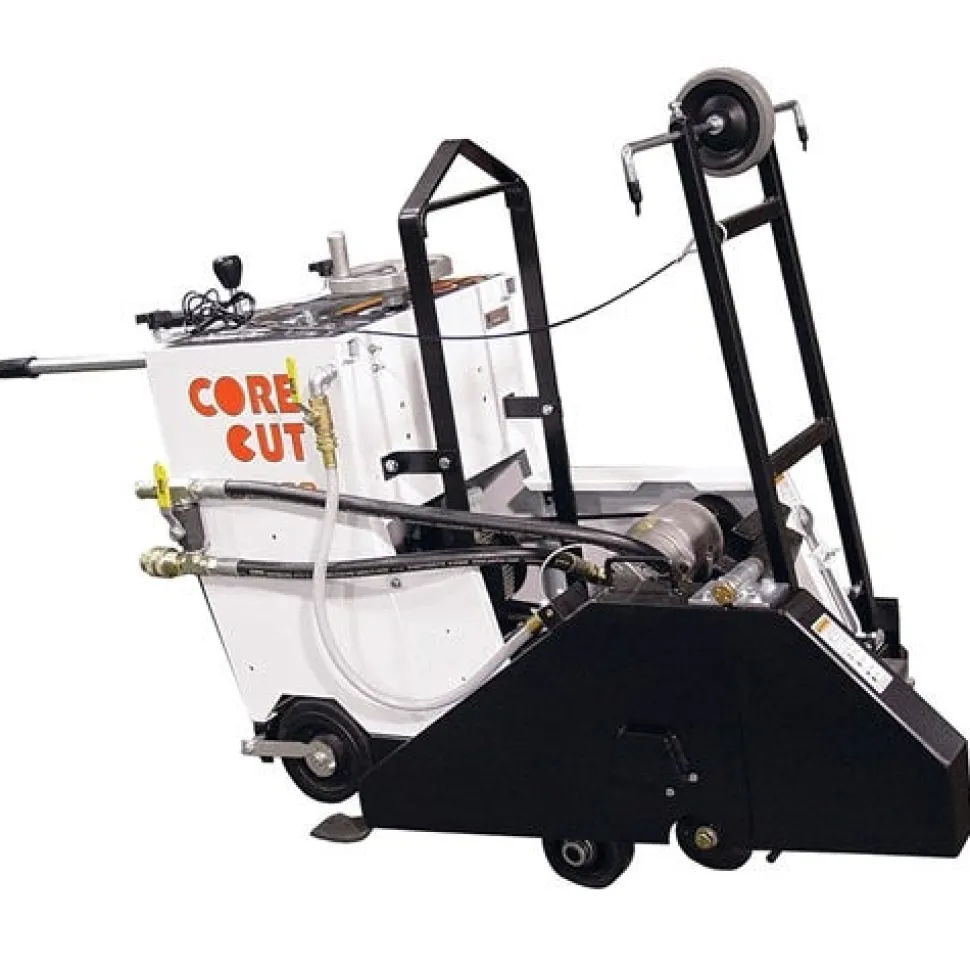

Diamond Products Core Cut 26″ Concrete Saw 25HP Kohler Command CC2525KC-26 Gas Walk-Behind 78816

Diamond Products

26 Core Cut 25HP Kohler Command CC2525KC-26 Gas Walk Behind Saw 78816

Delivers the Power of a Large Saw with a Compact Size & a 14″ – 26″ Blade Capacity.

FEATURES:

• Rigid high strength 3/16” steel box frame with heavy bar reinforcement.
• 2 position tilt handle bars.
• Self propelled drive.
• Screw feed raise and lower with optional power raise and lower.
• Cyclone air filter on gas models.
• Positive gear drive to rear axle via Eaton hydrostatic transmission.

SPECIFICATIONS:

Maximum depth of cut with 14” blade	4-5/8”
Maximum depth of cut with 20” blade	7-3/8”
Maximum depth of cut with 26” blade	10-3/8”
Blade shaft RPM	Varies
Blade shaft diameter	1-1/2”
Arbor size	1” w/drive pin
Blade shaft drive	4 belt up to 20.8HP; 5 belt for 25HP
Blade mounting	Right or Left
Transmission (self propelled only)	Eaton Model 6
Drive Speed	0-130 feet/min
Fuel Capacity (gas models)	5 gallons

INCLUDES:

• Electric Start (20-25 HP models) Low Oil Alert Tach/Hour Meter (20-25 HP models) Frame Lift Quick Disconnect Blade Flanges Cutting Depth Indicator Telescoping front pointer.

“
