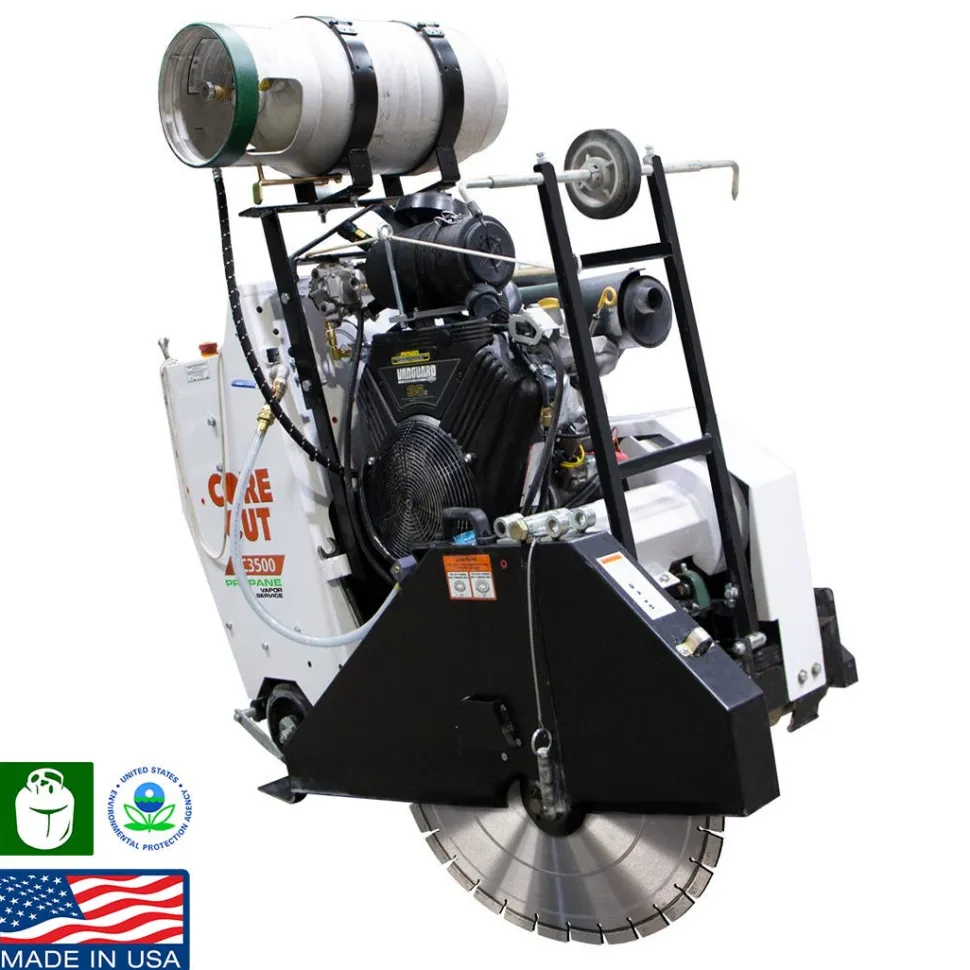

30″ Propane CORE CUT 35HP Walk-Behind Concrete Saw CC3535JBVP-30
The CC3535JBVP-30 features a 35 HP Briggs Vanguard engine converted to propane vapor draw and is a great mid-size saw for service, utility work, and rental. The jackshaft allows full engine power and 30% more torque. This model boasts the strongest frame on the market and an engine adjustment mechanism for belt tightening and maintenance. Weighing 1,095 pounds, this saw also features self-propelled drive for easy cutting and still fits through a 30″ door frame. This saw is compatible with a 30″ blade.
FEATURES:
- Briggs Vanguard engine converted to propane vapor draw
- Great mid-size saw for service, utility work, and rental
- Jackshaft allows full engine power
- Easy to maneuver self-propelled drive
- Engine adjustment mechanism for belt tightening and maintenance
- Strongest frame on the market
- 30% more torque with jackshaft design
- Fits through a 30″ door frame
SPECIFICATIONS:
Max Depth of Cut: | 12-3/8″ |
Blade Shaft Diameter: | 1-3/4″ |
Arbor Size: | 1″ with Single Drive Pin |
Blade Shaft Drive: | 6 Belts |
Blade Mounting: | Right or Left |
Blade Raise/Lower: | Electro-hydraulic Pump |
Transmission: | Eaton Model 10 |
Drive Speed: | 0-200 Feet per Mintue |
Air Filter: | 4-Stage |
Fuel Tank Size: | 33.5 lbs |
Â
INCLUDES:
Hour Meter
Frame Lift
Cutting Depth Indicator
Quick Disconnect Blade Flanges
Telescoping Front Pointer
OPT SKU | DP101234 |
---|---|
MPN | CC3535JBVP-30 |
Product Type | Concrete & Masonry Saws |
Google Category | Hardware > Tools > Saws > Masonry & Tile Saws |
Diameter | 30″ |
Power Method | Gas |
Shipping Weight | 1,095.00 |
