Diamond Products First-Cut 6″ Early Entry Concrete Saw 4.8HP Honda CC148HXL-EE6 Walk-Behind 32739

Diamond Products

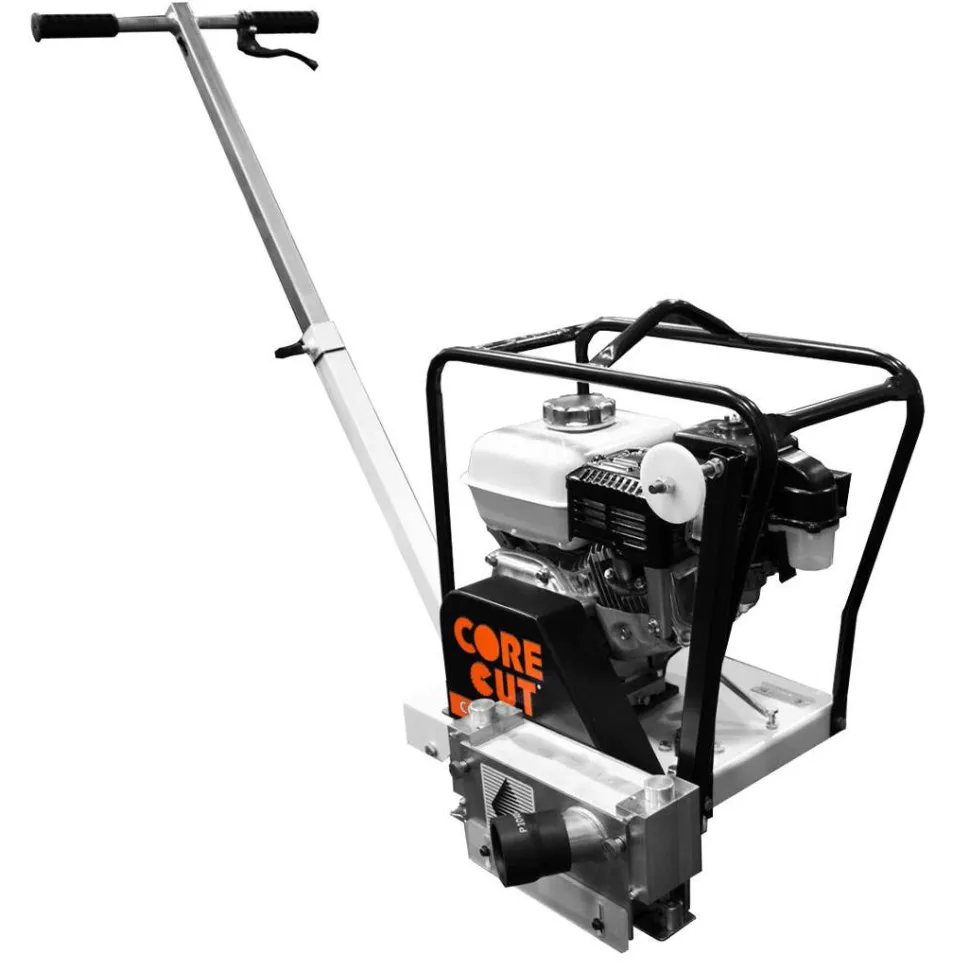

6″ First-Cut Early Entry 4.8HP Honda CC148HXL-EE6 GX160 Gas Walk-Behind Saw 32739

The CC148HXL-EE6 saw uses a 4.8 HP Honda gas engine rated at 3600 RPM. Diamond Product saws utlize a skid plate guard system that protects concrete spalling during the cut.

FEATURES:

• Maximum cutting depth of 1-3/16″.
• Reliable skid plate system for green concrete.
• Heavy duty design but light weight enough for two people to lift.
• Cyclone air filter for increased air flow.
• Up-cut design to keep debris from going back in the cut.
• Blade raise/lower mechanical mechanism with spring loaded release.
• Single ribbed drive belt.
• Made in the U.S.A

SPECIFICATIONS:

Blade shaft RPM	2,600
Blade shaft diameter	1-1/4”
Arbor Size	1″
Handle bars	Adjustable
Depth indicator	Standard
Motor/Engine Power	4.8 HP, 7.6 torque (lbs.-ft.)
Engine/Motor Make	Honda GX160

INCLUDES:

• (1) 6″ First-Cut Early Entry 4.8HP Honda CC148HXL-EE6 GX160 Gas Walk-Behind Saw (32739)
