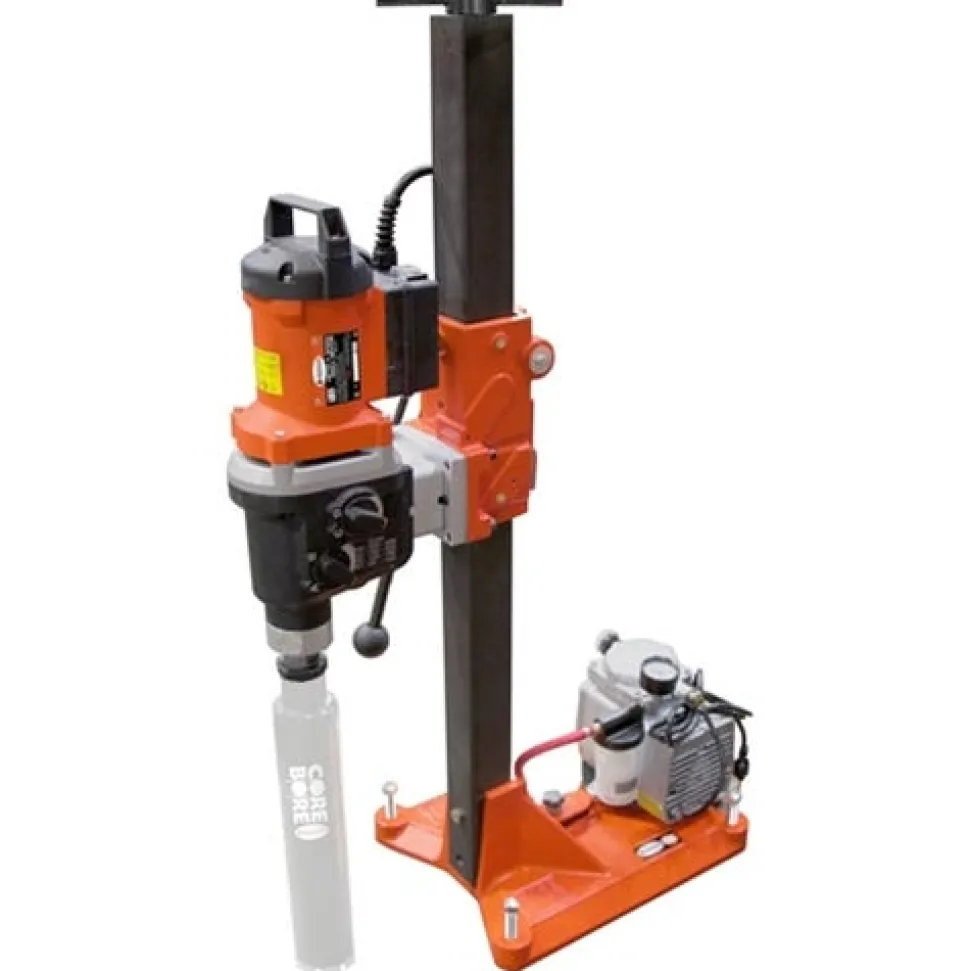

Diamond Products M-1 14″ Core Bore CB733 3 Speed 115V Complete Drill Rig 4245115

Diamond Products

M-1 14 Core Bore CB733 3 Speed 115V Complete Drill Rig 4245115

CB733 FEATURES:

• 115v/20 amp electric motor with on/off switch (no need for control panel)
• Motor up to 16 bit capacity (when mounted on M-2; M-5 or M-5 PRO)
• Sturdy 3 speed gearbox with oil bath lubrication and mechanical slip clutch
• Extra high efficiency 3000W motor in aluminum housing for better cooling and durability
• Advanced motor protection electronics that include soft-start; overheat and overload protection
• LED light lets the operator easily know that the motor is near overload conditions
• 1.250-7 threaded spindle with anti-sieze ring to keep Core Bore bits from getting stuck
• Quick-release water hose connection
• Built-in bubble levels
• Conveinent carrying handle
• Voltage / Power Input 115 Volt; 20 Amp
• No Load Speed RPM 550/1000/1600
• Load Speed RPM 345/0/1000
• Spindle Thread 1.250-7 male / 1/2 BSP female
• Clutch Slip Clutch
• Gear Oil Type/Capacity Shell Spirax S2 A 80W-90 / 650ml
• LED Overload Protection Light to start blinking at 20.5 amps; then go solid at 23.5 amps.
• Shut down after 6-8 seconds.
• Mount Weka Pattern
• Switch On/Off
• Motor Dimensions 21.65 x 6.10 x 8.26
• Motor Weight 28.4 lbs.

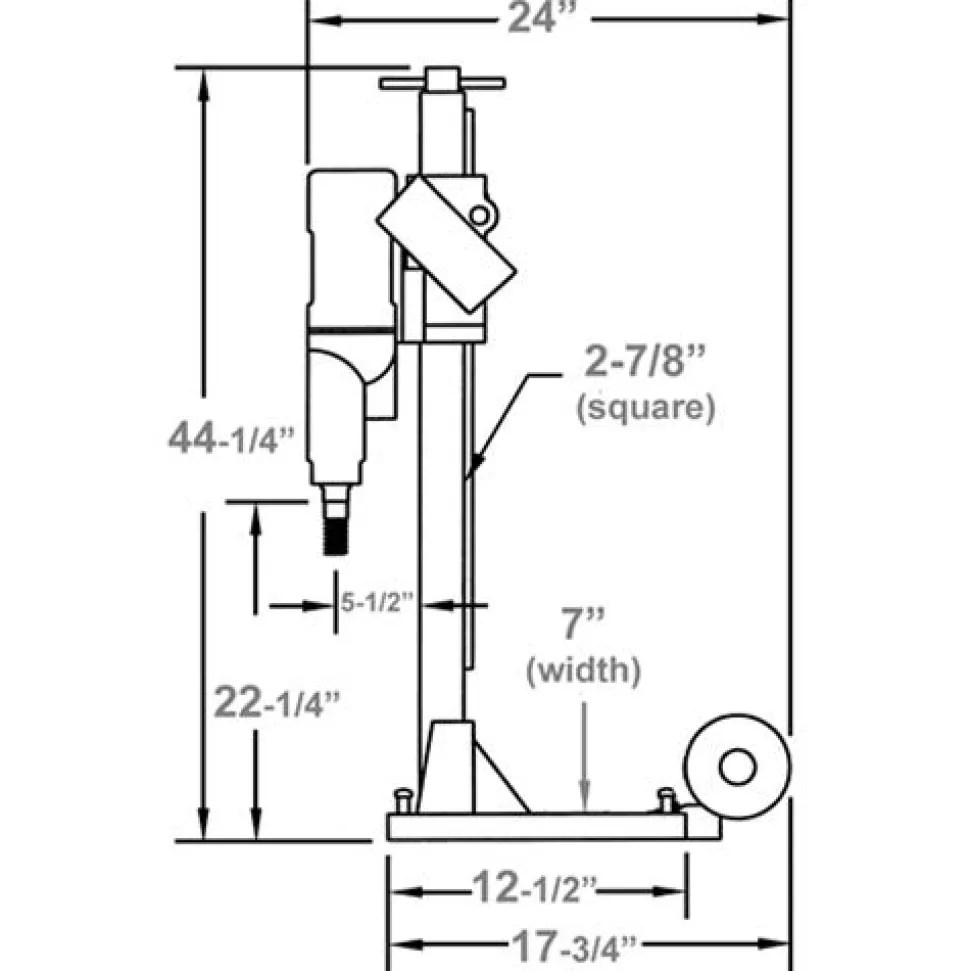

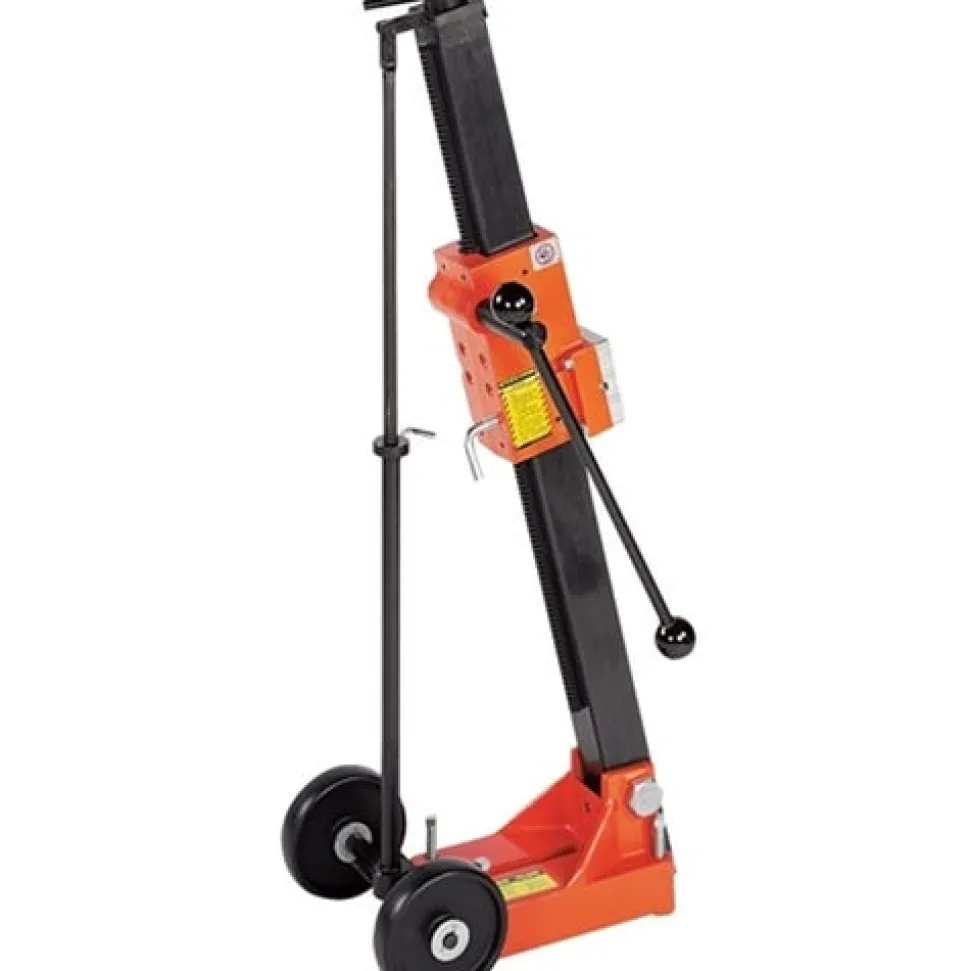

M1 Core Drill Stand FEATURES:

• Up to 14″ bit capacity
• Combination stand with vacuum pump
• No control panel required with CB733
• 6″ wheels for easy transport

***Bits not included“
