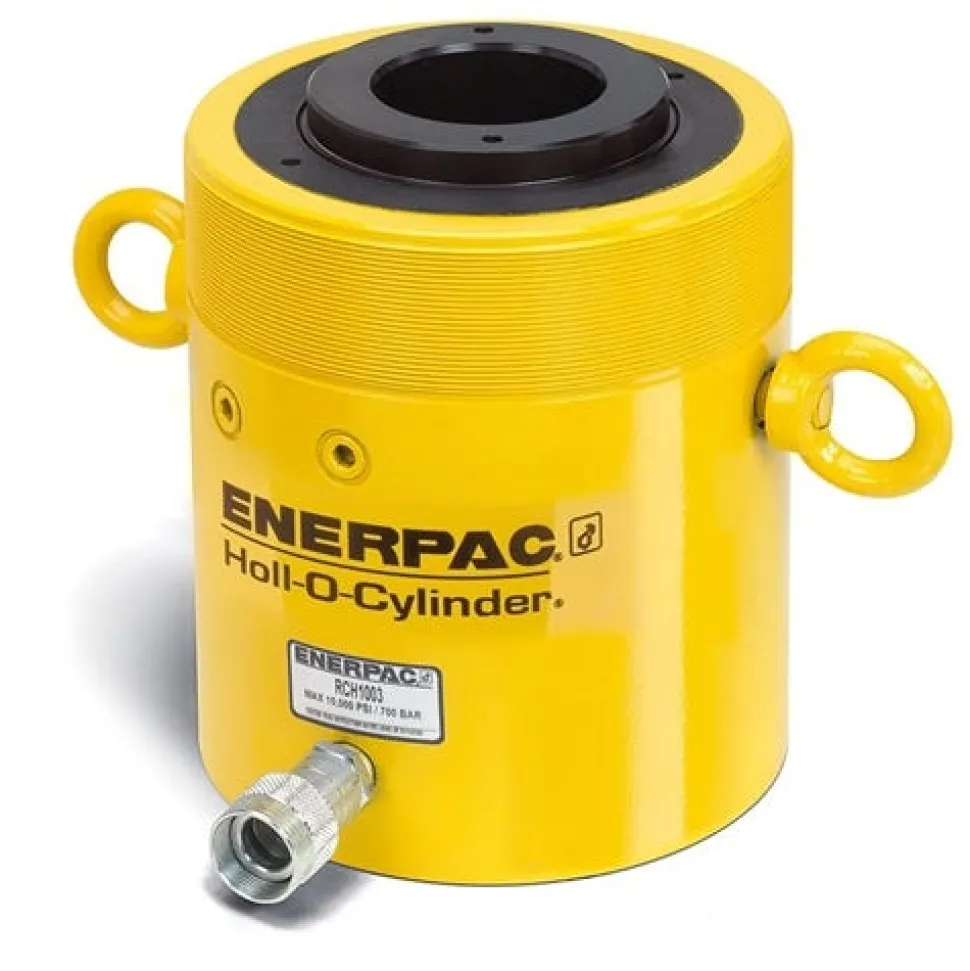

Enerpac 103.1 Ton Hydraulic 3″ Stroke Single-Acting Hollow Plunger Cylinder RCH1003

Enerpac

103.1 Ton Hydraulic 3 Stroke Single-Acting Hollow Plunger Cylinder RCH1003

This Enerpac RCH1003 single-acting hollow-plunger hydraulic cylinder with 100-ton capacity and 3.00″ stroke has a one port; spring return of the single piston rod; and a hollow plunger for use in applications where the need for push and pull forces might alternate; such as testing; maintenance; and tensioning applications. The single-acting hydraulic cylinder uses liquid pumped through its single port for rod extension and an internal spring for rod retraction to produce continued movement.

FEATURES:

• Hollow plunger design allows for both pull and push forces.
• Single-acting spring return.
• Nickel-plated; floating center tube on models over 20 tons increases product life.
• Baked enamel finish for increased corrosion resistance.
• Collar threads for easy fixturing.
• Features CR400 Coupler.

SPECIFICATIONS:

Maximum Operating Pressure (psi)	10;000
Capacity Class (tonnage)	100
Maximum Cylinder Capacity Advance (tons)	103.1
Stroke (in)	3
Collapsed Height A (in)	10
Extended Height B (in)	13
Return Type	Single-Acting; Spring Return
Plunger Type	Hollow
Material	Steel
Cylinder Effective Area Advance (in2)	20.63
Oil Capacity Advance (in3)	61.88
Surface Treatment	Paint

“
