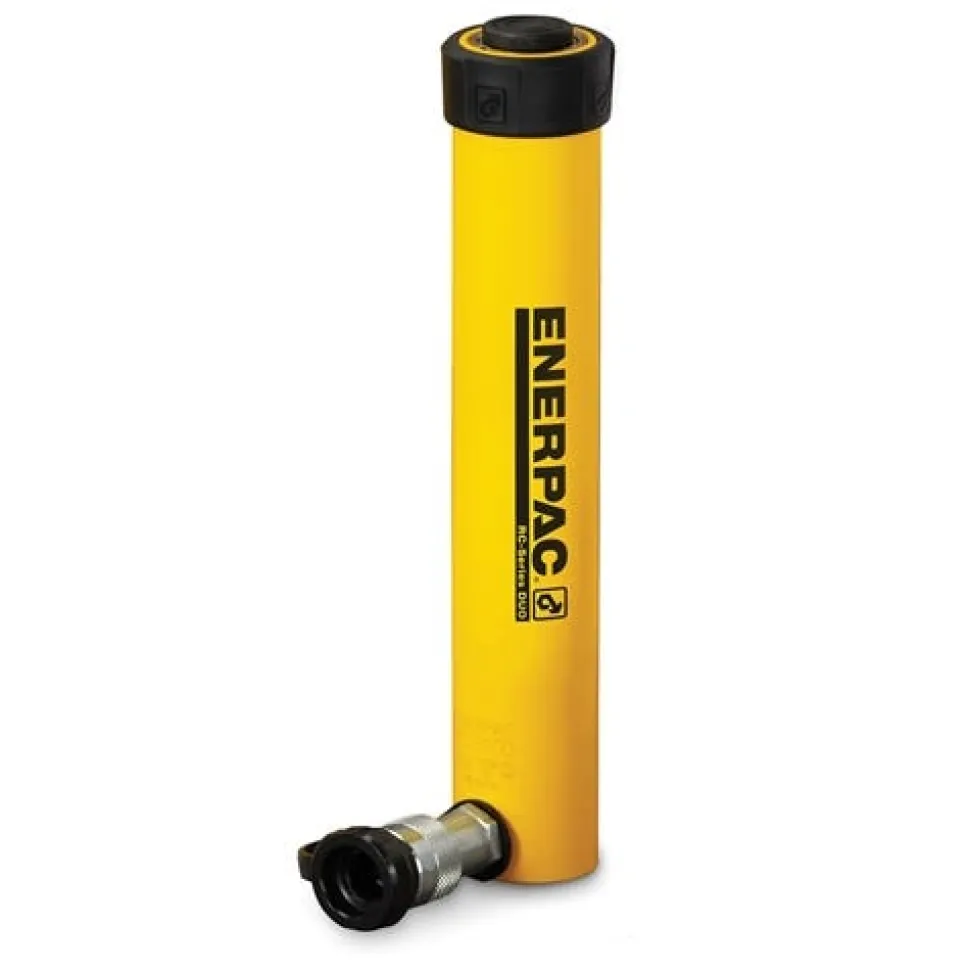

Enerpac 11.2 ton Capacity, 10.13 in Stroke, General Purpose Hydraulic Cylinder RC1010
$138.89
Enerpac
11.2 ton Capacity, 10.13 in Stroke, General Purpose Hydraulic Cylinder RC1010
RC-Series Hydraulic Cylinders are incredibly durable and versatile. These single acting hydraulic cylinders are suitable for a wide range of applications; lifting, pushing, or pressing.
FEATURES:
- Bearing system with composite wear bands for optimal sideload resistance
- Strengthened stop ring improves durability and side load resistance
- Trio Hybrid pre-tensioned spring system provides faster retraction
- High-grade polyethylene seals for low wear and long service life
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Maximum Cylinder Capacity Advance (short tons) | 11.2 |
| Stroke (in) | 10.13 |
INCLUDES:
(1) Hydraulic Cylinder
| Shipping Weight | 14 lbs |
|---|---|
| Collar Thread W | 2 1/4″ – 14 UN in | 2 1/4″ – 14 un mm |
| Collar Thread Length X | 1.13 in | 27 mm |
| Plunger internal Threadin O | 1″ – 8 in |
| Cylinder Bore Diameter E | 1.69 in | 42,8 mm |
| Product Line | Industrial Tools |
| Maximum Cylinder Capacity Advance | 11.2 Imperial Tons | 101 kN |
| News Feed Product Group | Cylinders and Jacks |
| Stroke Ranges | 10.0 – 11.99 in | 240 – 289 mm |
| Upsell item | SCR1010TB,RAC2010,RR1010 |
| Saddle Protrusionfrom Plunger K | 0.25 in |
| Plunger Thread Length P | 0.75 in | 19 mm |
| Oil Capacity Advance | 22.65 in³ | 373 cm³ |
| Base Mounting Holes Bolt Circle U | 1.56 in | 40 mm |
| Collapsed Height A Ranges | 10.0 – 14.99 in | 255 – 381 mm |
| Saddle Diameter J1 | 35 mm |
| Collapsed Height A | 13.75 in | 349 mm |
| Maximum Operating Pressure Ranges psi | 10000 |
| Baseto Advance Port H | 0.75 in | 19 mm |
| Type | Hydraulic Cylinders |
| Base Mounting Holes Thread V | 5/16″- 18 un | 5/16″ – 18un in |
| Saddle Diameter J | 1.38 in | 35 mm |
| Plunger Diameter F | 1.5 in | 38,1 mm |
| Extended Height B | 23.88 in | 606 mm |
| Cylinder Effective Area Advance | 2.24 in² | 14,4 cm² |
| Country of Origin | China |
| Surface Treatment | Paint |
| Cylinder Class | 10 Imperial Tons |
| Return Type | Single-Acting, Spring Return |
| Optional Tilt Saddle Addition To Collapsed Height A 1 | 0.55 in | 14 mm |
| Saddle Protrusion From Plunger K | 6 mm |
| Plunger Type | Solid |
| Sub Types | General Purpose Cylinder |
| Saddle Maximum Tilt Angle Radius Degrees | 5 |
| Base Mounting Holes Thread Depth Z | 0.5 in | 12 mm |
| Saddle Protrusionfrom Plunger K1 | 6 mm |
| Plunger internal Thread O | 1″ – 8 in |
| Weight | 14 lbs | 6,4 kgs |
| Optional Tilt Saddle Diameter J1 | 1.38 in |
| Outside Diameter D | 2.25 in | 57 mm |
| Cylinder Material | Steel |
| OPT SKU | ENP-RC1010 |
|---|---|
| MPN | RC1010 |
| UPC/GTIN | 662005300860 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 10″ |
| Tonnage | 10-Ton |
| Shipping Weight | 14.00 |
