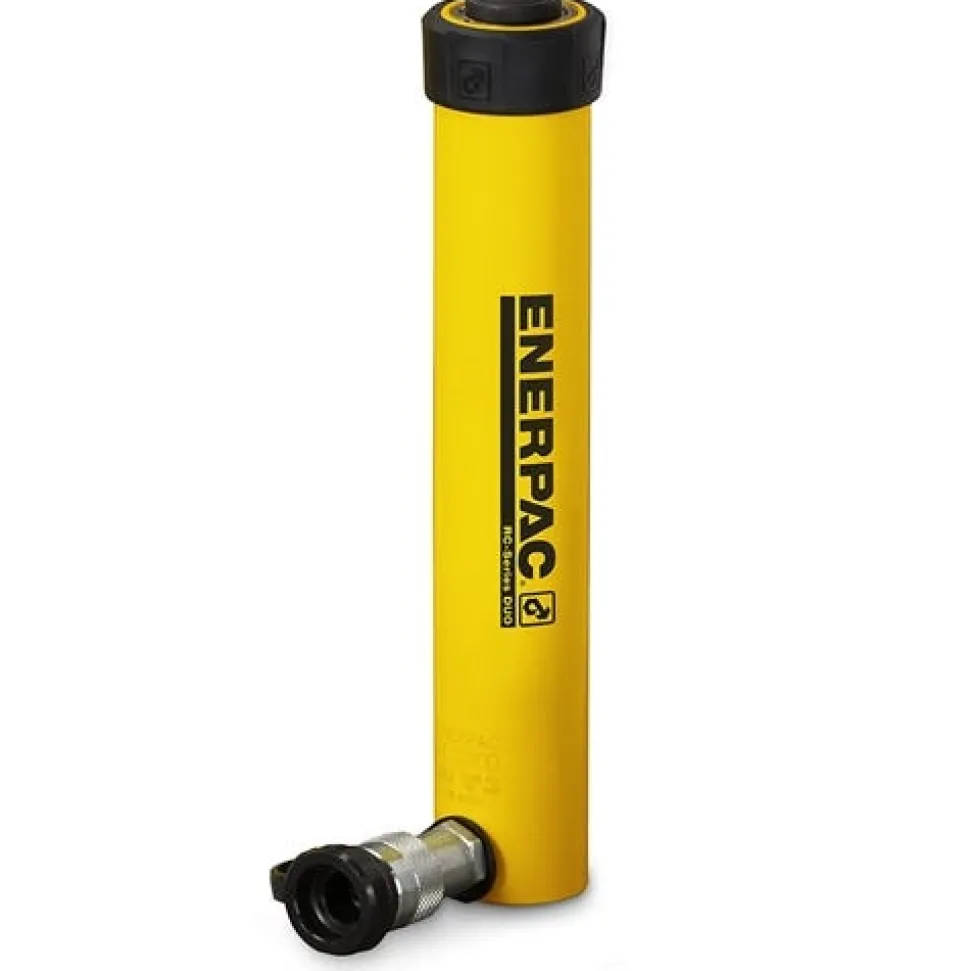

Enerpac 11.2 ton Capacity, 14.00 in Stroke, General Purpose Hydraulic Cylinder RC1014

$122.89

SKU: SKUoEUCKdGPFN Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Enerpac Brand: Enerpac

Description
Reviews (0)

Additional Details

Enerpac

11.2 ton Capacity, 14.00 in Stroke, General Purpose Hydraulic Cylinder RC1014

RC-Series Hydraulic Cylinders are incredibly durable and versatile. These single acting hydraulic cylinders are suitable for a wide range of applications; lifting, pushing, or pressing.

FEATURES:

Bearing system with composite wear bands for optimal sideload resistance
Strengthened stop ring improves durability and side load resistance
Trio Hybrid pre-tensioned spring system provides faster retraction
High-grade polyethylene seals for low wear and long service life

SPECIFICATIONS:

Maximum Operating Pressure (psi)	10,000
Maximum Cylinder Capacity Advance (short tons)	11.2
Stroke (in)	14

INCLUDES:

(1) Hydraulic Cylinder

Manufacturer Specifications

Saddle Diameter J1	35 mm
Saddle Protrusionfrom Plunger K	0.25 in
Cylinder Effective Area Advance	2.24 inÂ² \| 14,4 cmÂ²
Stroke Ranges	12.0 – 14.99 in \| 290 – 379 mm
News Feed Product Group	Cylinders and Jacks
Shipping Weight	18.1 lbs
Surface Treatment	Paint
Optional Tilt Saddle Diameter J1	1.38 in
Maximum Cylinder Capacity Advance	11.2 Imperial Tons \| 101 kN
Saddle Protrusionfrom Plunger K1	6 mm
Cylinder Class	10 Imperial Tons
Baseto Advance Port H	0.75 in \| 19 mm
Base Mounting Holes Bolt Circle U	1.56 in \| 40 mm
Cylinder Material	Steel
Weight	18 lbs \| 8,2 kgs
Sub Types	General Purpose Cylinder
Type	Hydraulic Cylinders
Collar Thread Length X	1.06 in \| 27 mm
Saddle Maximum Tilt Angle Radius Degrees	5
Country of Origin	China
Product Line	Industrial Tools
Extended Height B	31.75 in \| 807 mm
Collar Thread W	2 1/4″ – 14 UN in \| 2 1/4″ – 14 un mm
Outside Diameter D	2.25 in \| 57 mm
Saddle Protrusion From Plunger K	6 mm
Saddle Diameter J	1.38 in \| 35 mm
Base Mounting Holes Thread V	5/16″- 18 un \| 5/16″ – 18un in
Plunger internal Threadin O	1″ – 8 in
Plunger Type	Solid
Optional Tilt Saddle Addition To Collapsed Height A 1	0.55 in \| 14 mm
Collapsed Height A	17.75 in \| 451 mm
Plunger internal Thread O	1″ – 8 in
Plunger Diameter F	1.5 in \| 38,1 mm
Maximum Operating Pressure Ranges psi	10000
Collapsed Height A Ranges	15.0 – 19.99 in \| 382 – 508 mm
Base Mounting Holes Thread Depth Z	0.5 in \| 12 mm
Upsell item	RR1012
Cylinder Bore Diameter E	1.69 in \| 42,8 mm
Oil Capacity Advance	31.31 inÂ³ \| 516 cmÂ³
Return Type	Single-Acting, Spring Return
Plunger Thread Length P	0.75 in \| 19 mm

Specifications

More Information
OPT SKU	ENP-RC1014
MPN	RC1014
UPC/GTIN	662005300907
Product Type	Cylinder Rams Single Acting
Google Category	Business & Industrial > Material Handling
Stroke	14″
Tonnage	10-Ton
Shipping Weight	18.00
