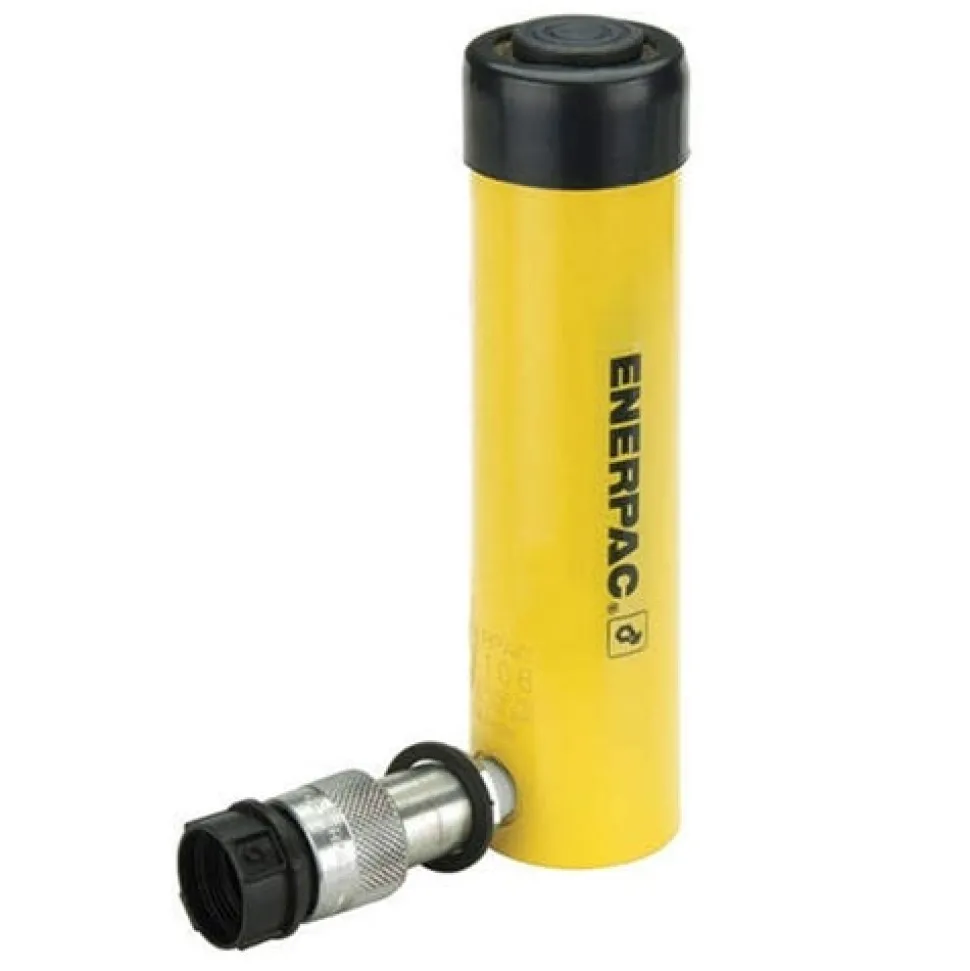

Enerpac 11.2 ton Capacity, 6.13 in Stroke, General Purpose Hydraulic Cylinder RC106
Original price was: $775.00.$132.99Current price is: $132.99.
Enerpac
11.2 ton Capacity, 6.13 in Stroke, General Purpose Hydraulic Cylinder RC106
RC-Series Hydraulic Cylinders are incredibly durable and versatile. These single acting hydraulic cylinders are suitable for a wide range of applications; lifting, pushing, or pressing.
FEATURES:
- Bearing system with composite wear bands for optimal sideload resistance
- Strengthened stop ring improves durability and side load resistance
- Trio Hybrid pre-tensioned spring system provides faster retraction
- High-grade polyethylene seals for low wear and long service life
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Return Type | Single-Acting, Spring Return |
| Maximum Cylinder Capacity Advance (short tons) | 11.2 |
INCLUDES:
(1) Hydraulic Cylinder
| Upsell item | SCR106TB,RAC206,RR1010 |
|---|---|
| Baseto Advance Port H | 0.75 in | 19 mm |
| Maximum Operating Pressure Ranges psi | 10000 |
| Weight | 9.8 lbs | 4,4 kgs |
| Outside Diameter D | 2.25 in | 57 mm |
| Plunger Thread Length P | 0.75 in | 19 mm |
| Cylinder Effective Area Advance | 2.24 in² | 14,4 cm² |
| Plunger internal Thread O | 1″ – 8 in |
| Collapsed Height A | 9.75 in | 248 mm |
| Surface Treatment | Paint |
| Cylinder Bore Diameter E | 1.69 in | 42,8 mm |
| Shipping Weight | 10.4 lbs |
| Oil Capacity Advance | 13.7 in³ | 226 cm³ |
| Collar Thread Length X | 1.13 in | 27 mm |
| Type | Hydraulic Cylinders |
| Base Mounting Holes Thread Depth Z | 0.5 in | 12 mm |
| Cylinder Material | Steel |
| News Feed Product Group | Cylinders and Jacks |
| Saddle Diameter J1 | 35 mm |
| Plunger internal Threadin O | 1″ – 8 in |
| Sub Types | General Purpose Cylinder |
| Cylinder Class | 10 Imperial Tons |
| Saddle Protrusion From Plunger K | 6 mm |
| Collar Thread W | 2 1/4″ – 14 UN in | 2 1/4″ – 14 un mm |
| Collapsed Height A Ranges | 5.0 – 9.99 in | 128 – 254 mm |
| Saddle Diameter J | 1.38 in | 35 mm |
| Plunger Type | Solid |
| Product Line | Industrial Tools |
| Saddle Maximum Tilt Angle Radius Degrees | 5 |
| Return Type | Single-Acting, Spring Return |
| Maximum Cylinder Capacity Advance | 11.2 Imperial Tons | 101 kN |
| Base Mounting Holes Bolt Circle U | 1.56 in | 40 mm |
| Base Mounting Holes Thread V | 5/16″- 18 un | 5/16″ – 18un in |
| Saddle Protrusionfrom Plunger K | 0.25 in |
| Saddle Protrusionfrom Plunger K1 | 6 mm |
| Plunger Diameter F | 1.5 in | 38,1 mm |
| Country of Origin | China |
| Optional Tilt Saddle Diameter J1 | 1.38 in |
| Stroke Ranges | 4.5 – 6.99 in | 120 – 174 mm |
| Extended Height B | 15.88 in | 404 mm |
| Optional Tilt Saddle Addition To Collapsed Height A 1 | 0.55 in | 14 mm |
| OPT SKU | ENP-RC106 |
|---|---|
| MPN | RC106 |
| UPC/GTIN | 662005300822 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 6″ |
| Tonnage | 10-Ton |
| Shipping Weight | 10.00 |
