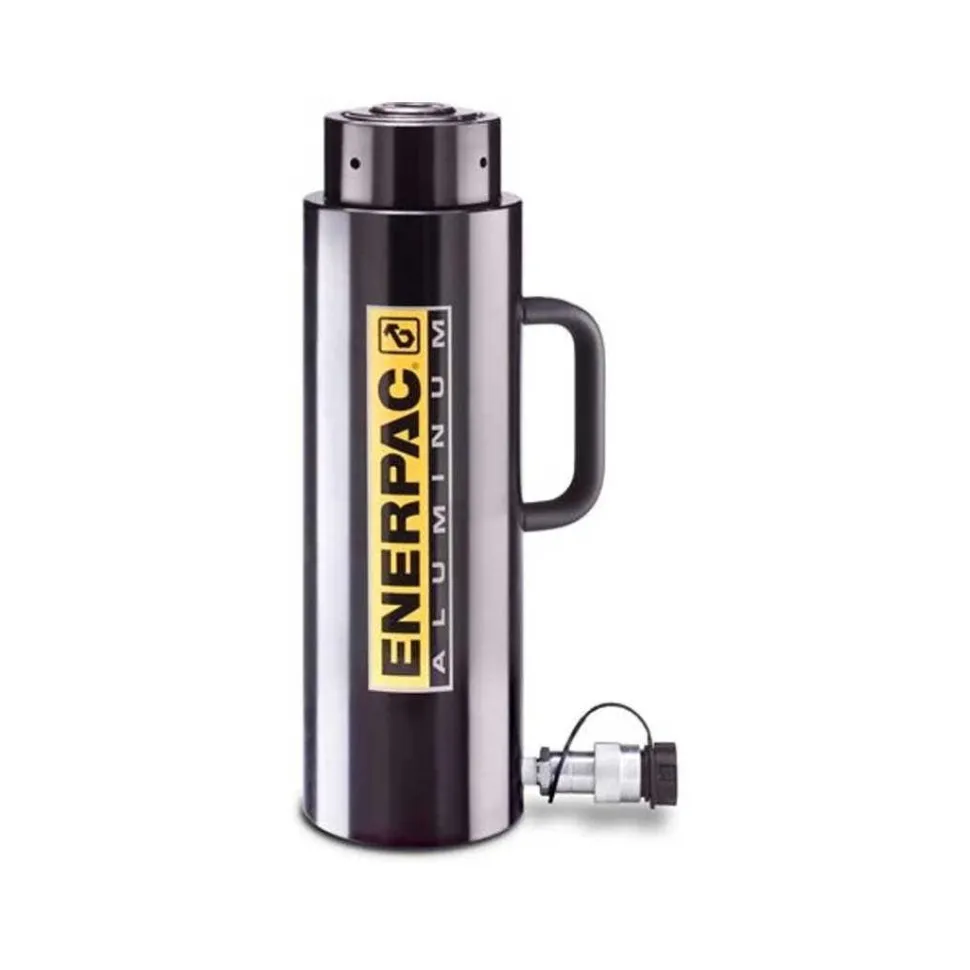

Enerpac 1109 ton Capacity, 5.91 in Stroke, Aluminum Lock Nut Hydraulic Cylinder RACL1006

$124.99

SKU: SKUns83lui2F0 Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Enerpac Brand: Enerpac

Description
Reviews (0)

Additional Details

Enerpac

110.9 ton Capacity, 5.91 in Stroke, Aluminum Lock Nut Hydraulic Cylinder RACL1006

FEATURES:

Hollow plunger design allows for both pull and push forces
Composite bearings increase cylinder life and side load resistance
Hard coat finish on all surfaces resists damage and extends cylinder life
Handles included on all models

SPECIFICATIONS:

Maximum Operating Pressure (psi)	10,000
Maximum Cylinder Capacity Advance (short tons)	110.9
Return Type	Single-Acting, Spring Return
Stroke (in)	5.91

INCLUDES:

(1) Hydraulic Cylinder

Manufacturer Specifications

Collapsed Height A Ranges	15.0 – 19.99 in \| 382 – 508 mm
Saddle Maximum Tilt Angle Radius Degrees	5
Plunger Diameter F	4.33 in \| Tr 110 x 6 mm
Extended Height B	21.5 in \| 546 mm
Maximum Cylinder Capacity Advance	110.9 Imperial Tons \| 1002 kN
Oil Capacity Advance	131.14 inÂ³ \| 2147 cmÂ³
Sub Types	Aluminum Lock Nut Cylinder
Shipping Weight	82.01 lbs
Product Line	Industrial Tools
Return Type	Single-Acting, Spring Return
Maximum Operating Pressure Ranges psi	10000
Saddle Diameter J1	97 mm
Optional Tilt Saddle Diameter J1	3.82 in
Base Mounting Holes Thread Depth Z	12 mm
Country of Origin	India
Upsell item	HCL1006,HCRL1006
Stroke Ranges	4.5 – 6.99 in \| 120 – 174 mm
Surface Treatment	Anodized
Cylinder Effective Area Advance	22.19 inÂ² \| 143,1 cmÂ²
Plunger Type	Solid
Baseto Advance Port H	1.82 in \| 46 mm
Type	Hydraulic Cylinders
Collapsed Height A	15.59 in \| 396 mm
Optional Tilt Saddle Addition To Collapsed Height A 1	0.75 in \| 19 mm
Base Mounting Holes Bolt Circle U	150 mm
Weight	58.4 lbs \| 26,5 kgs
Saddle Protrusionfrom Plunger K1	31 mm
Outside Diameter D	7.09 in \| 180 mm
Saddle Diameter J	3.7 in \| 94 mm
Lock Nut Height S	2.95 in \| 75 mm
News Feed Product Group	Cylinders and Jacks
Cylinder Bore Diameter E	5.32 in \| 135 mm
Base Mounting Holes Thread V	M10
Saddle Protrusionfrom Plunger K	0.12 in
Cylinder Material	Aluminum
Saddle Protrusion From Plunger K	3 mm
Cylinder Class	100 Imperial Tons

Specifications

More Information
OPT SKU	ENP-RACL1006
MPN	RACL1006
UPC/GTIN	662005125951
Product Type	Cylinder Rams Single Acting
Google Category	Business & Industrial > Material Handling
Stroke	6″
Tonnage	100-Ton
Shipping Weight	59.00
