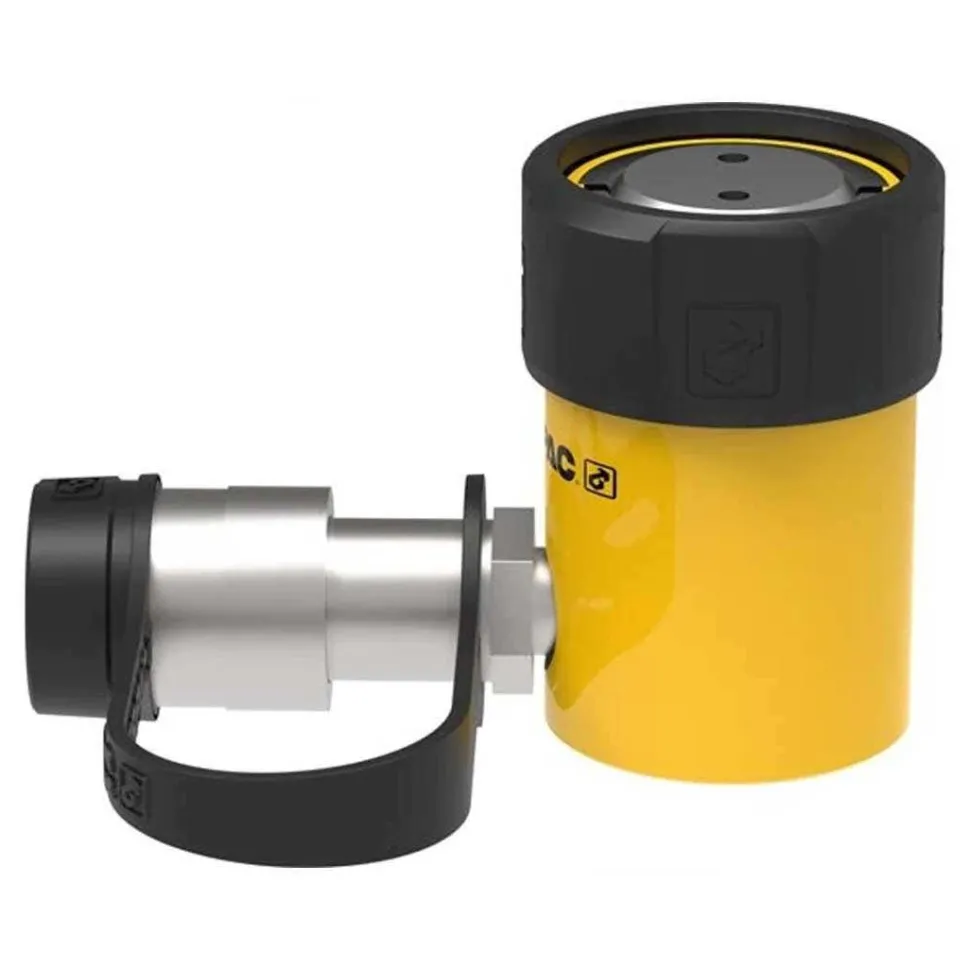

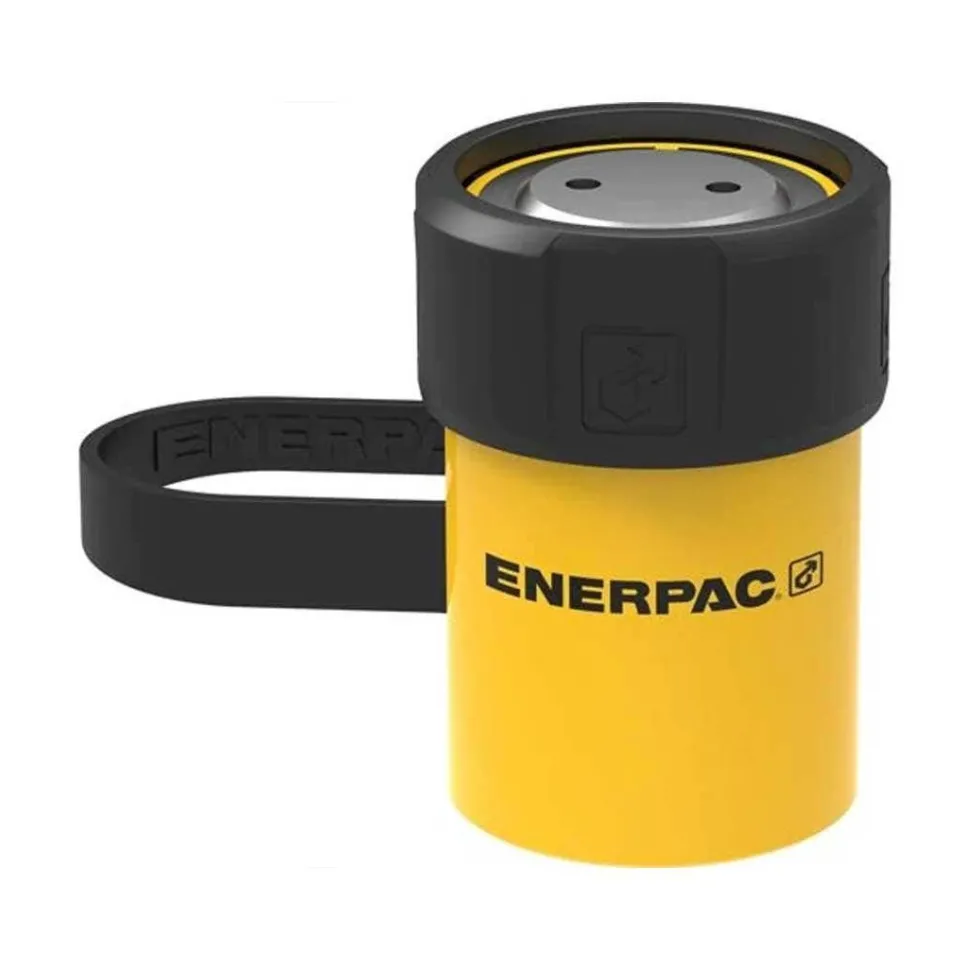

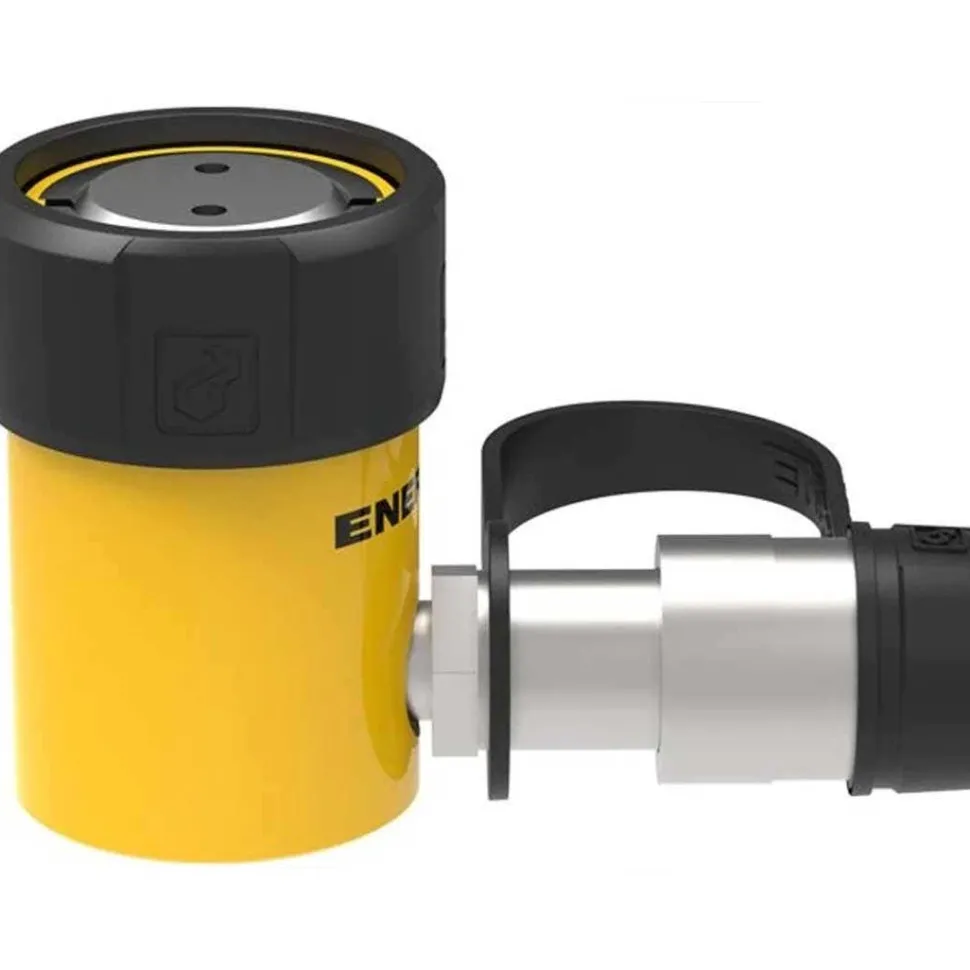

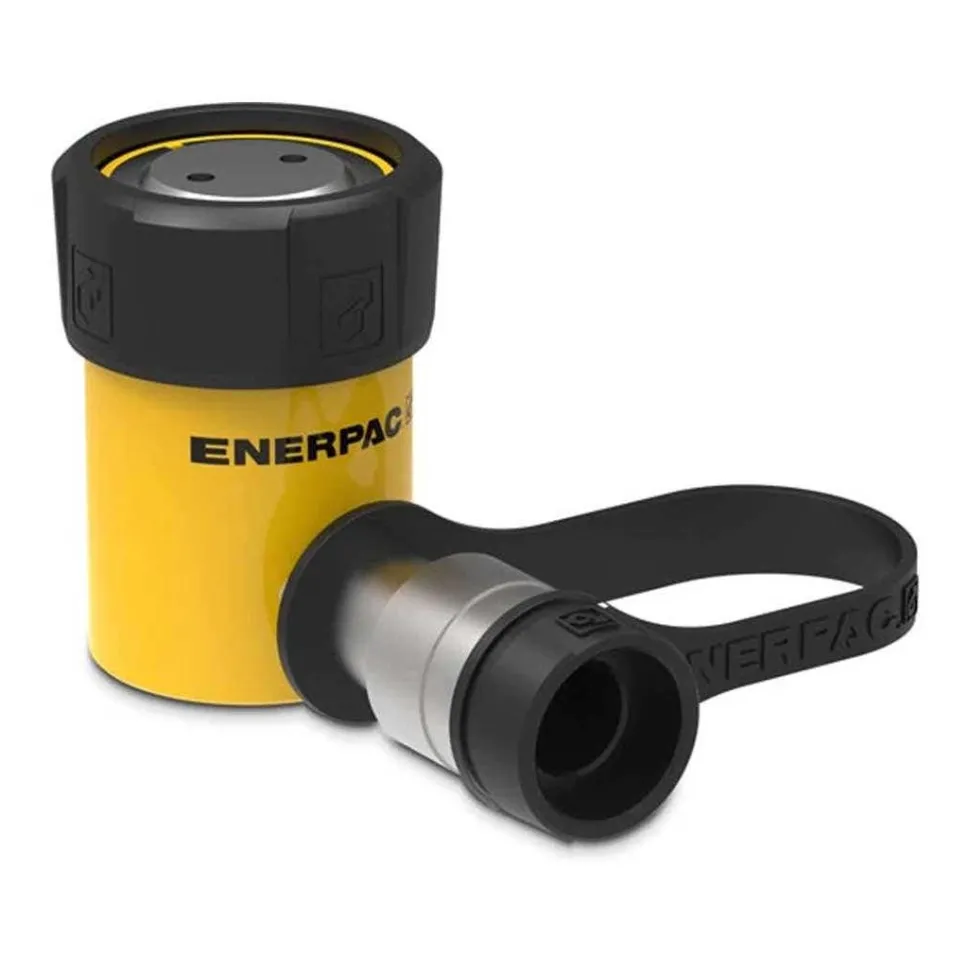

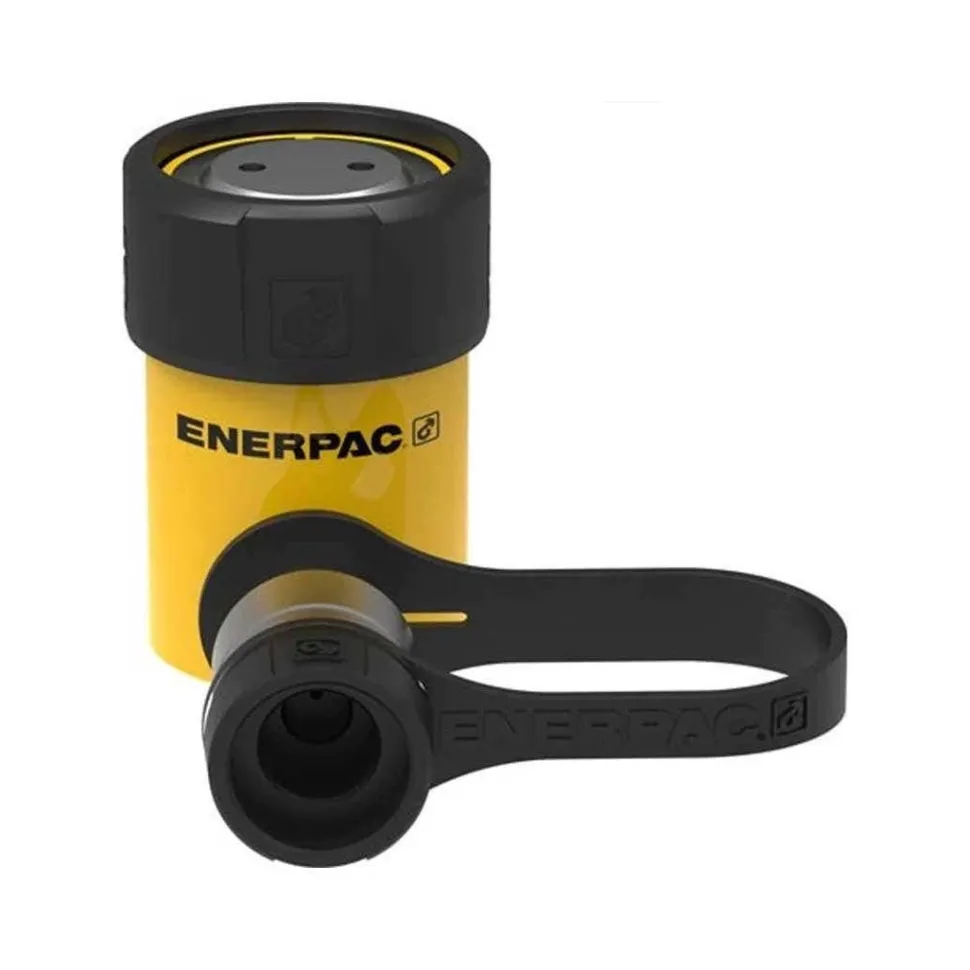

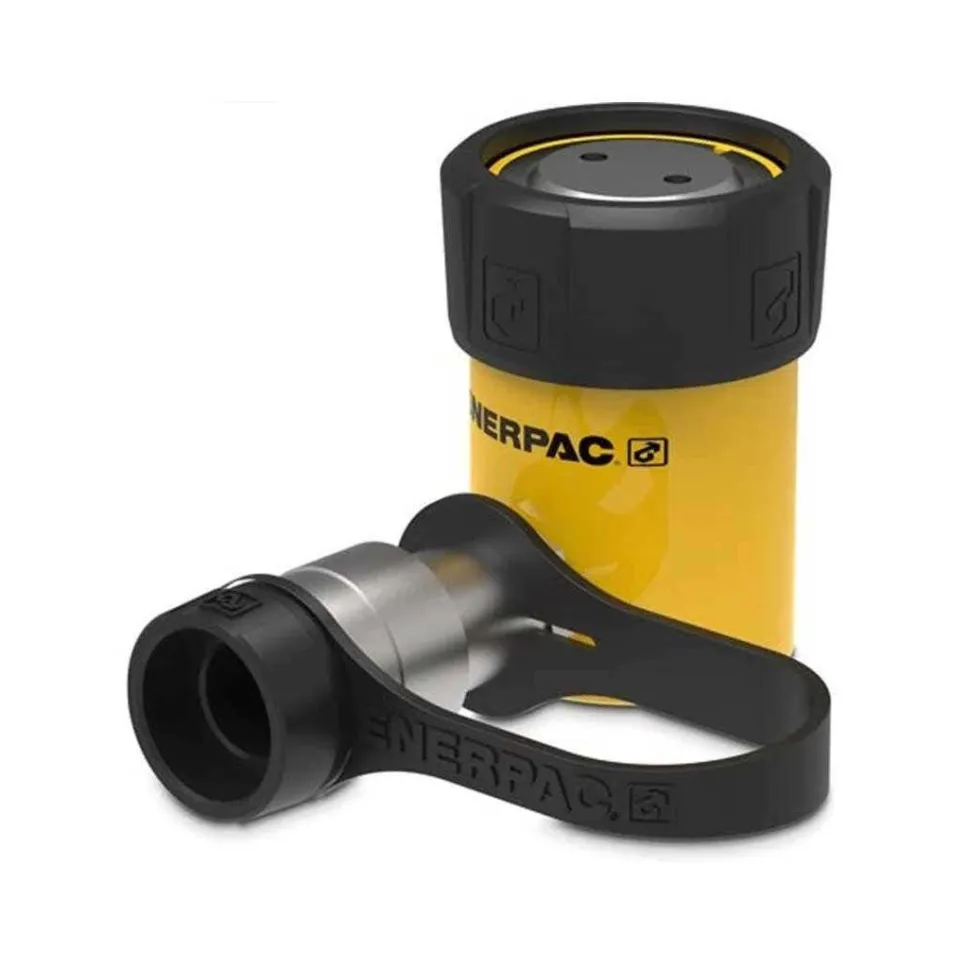

Enerpac 112 ton Capacity, 1.00 in Stroke, General Purpose Hydraulic Cylinder RC101
$134.99
Enerpac
11.2 ton Capacity, 1.00 in Stroke, General Purpose Hydraulic Cylinder RC101
RC-Series Hydraulic Cylinders are incredibly durable and versatile. These single acting hydraulic cylinders are suitable for a wide range of applications; lifting, pushing, or pressing.
FEATURES:
- Bearing system with composite wear bands for optimal sideload resistane
- Strengthened stop ring improves durability and side load resistance
- Trio Hybrid pre-tensioned spring system provides faster retraction
- High-grade polyethylene seals for low wear and long service life
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Stroke (in) | 1 |
| Maximum Cylinder Capacity Advance (short tons) | 11.2 |
INCLUDES:
(1) Hydraulic Cylinder
| Plunger Type | Solid |
|---|---|
| Saddle Protrusion From Plunger K | ‘- mm |
| Collar Thread W | 2 1/4″ – 14 UN in | 2 1/4″ – 14 un mm |
| Return Type | Single-Acting, Spring Return |
| Saddle Diameter J | ‘- mm |
| Country of Origin | China |
| Upsell item | RAC202,RR1010 |
| Weight | 4 lbs | 1,8 kgs |
| Shipping Weight | 4.25 lbs |
| Collapsed Height A | 3.53 in | 90 mm |
| Cylinder Bore Diameter E | 1.69 in | 42,8 mm |
| Plunger Thread Length P | 0.25 in | 6 mm |
| Maximum Operating Pressure Ranges psi | 10000 |
| Cylinder Class | 10 Imperial Tons |
| Cylinder Material | Steel |
| Outside Diameter D | 2.25 in | 57 mm |
| Extended Height B | 4.53 in | 116 mm |
| Plunger internal Thread O | #10 – 24un in |
| Base Mounting Holes Thread Depth Z | 0.5 in | 12 mm |
| Plunger Diameter F | 1.5 in | 38,1 mm |
| Base Mounting Holes Thread V | 5/16″- 18 un | 5/16″ – 18un in |
| Cylinder Effective Area Advance | 2.24 in² | 14,4 cm² |
| Collapsed Height A Ranges | 0 – 4.99 in | 0 – 127 mm |
| Stroke Ranges | 1.0 – 1.99 in | 24 – 47 mm |
| Collar Thread Length X | 1.06 in | 27 mm |
| Type | Hydraulic Cylinders |
| Product Line | Industrial Tools |
| Maximum Cylinder Capacity Advance | 11.2 Imperial Tons | 101 kN |
| Baseto Advance Port H | 0.75 in | 19 mm |
| Plunger internal Threadin O | #10 – 24un in |
| News Feed Product Group | Cylinders and Jacks |
| Base Mounting Holes Bolt Circle U | 1.56 in | 40 mm |
| Surface Treatment | Paint |
| Oil Capacity Advance | 2.24 in³ | 38 cm³ |
| Sub Types | General Purpose Cylinder |
| Bore Diameter | 1-1/4″ |
| Overall Dia. (D) | 2-1/4″ |
| OPT SKU | ENP-RC101 |
|---|---|
| MPN | RC101 |
| UPC/GTIN | 662005300747 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 1″ |
| Tonnage | 10-Ton |
| Shipping Weight | 4.00 |
