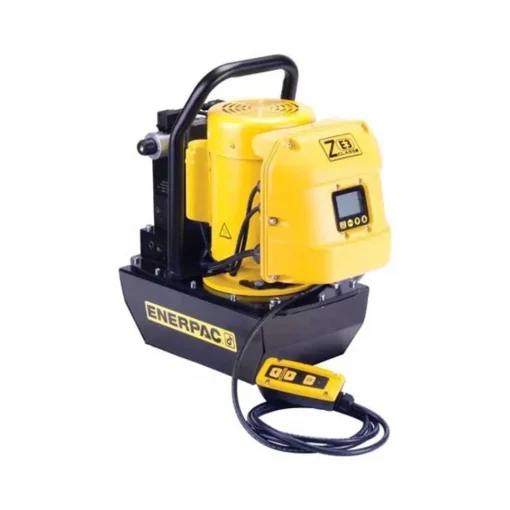

Enerpac 115V, 2.0 gallon Usable Oil, 4/3 Solenoid Valve Electric Hydraulic Pump ZE3408SB

$132.89

SKU: SKUpuNmWNcKfk Categories: Hydraulic Pumps High Pressure, Power Tools Tag: Enerpac Brand: Enerpac

Description
Reviews (0)

Additional Details

Enerpac

115V, 2.0 gallon Usable Oil, 4/3 Solenoid Valve Electric Hydraulic Pump ZE3408SB

FEATURES:

Features Z-Class high-efficiency pump design; higher oil flow and by-pass pressure, cooler running and requires 18% less current draw than comparable pumps
Totally enclosed, fan-cooled industrial electric motors supply extended life and stand up to harsh industrial environments
Low-voltage pendant, on certain models, provides additional safety for the operator
Multiple valve and reservoir configurations provide application specific models to match the most demanding industrial applications

SPECIFICATIONS:

Maximum Operating Pressure (psi)	10,000
Cylinder Compatability	Double-acting
Maximum Flow at Rated Pressure	40 in3/min
Valve Type	4-way, 3-position, Tandem Center

INCLUDES:

(1) Hydraulic Pump

Manufacturer Specifications

Output Flow Rate 100 psi	450 inÂ³/min
Cylinder Compatability	Double-acting
Dimension A	5.6 In \| 143 Mm
Reservoir Capacity	8000 cmÂ³ \| 416 inÂ³
Motor	50/60 Hz Hertz \| 1 Ph Phases
Pump Control	Pendant
Valve Operation	Solenoid
Soleniod Valve Voltage	24 VDC
News Feed Product Group	Pumps
Output Flow Rate 10000 Psi	40 inÂ³/min
Motor Electrical Specification	115 V, 1 Ph, 50/60 Hz
Output Flow Rate 50 bar	6,3 L/min
Weight	112 lbs \| 51 kgs
Motor Size	1 HP \| 1750 RPM
Sound Leveld Ba	75
Usable Oil Capacity	8,0 Litres
Pump Power Source	Electric
Relief Valve Adjustment Range bar	70 – 700
Valve Function	Advance / Hold / Retract
Maximum Flowat Rated Pressure	40 in3/min
Output Flow Rate 700 Psi	385 inÂ³/min
Output Flow Rate 7 bar	7,4 L/min
Product Line	Industrial Tools
Duty Cycle	Extended
Valve Model	VE43
Type	Hydraulic Pump
Maximum Flow Rate Rangesat Rated Pressure	40 – 59 inÂ³/min
Output Flow Rate 5000 Psi	42 inÂ³/min
Pump Valve Type	4-way, 3-position, Tandem Center
Output Flow Rate 700 bar	0,65 L/min
Motor Voltage	115 V
Relief Valve Adjustment Range Psi	1,000 – 10,000
Maximum Flow At Rated Pressure	40 inÂ³
Country of Origin	United States
Sub Types	Electric Pump – High Flow
Output Flow Rate 350 bar	0,68 L/min
Maximum Operating Pressure Ranges Psi	10000
Dimension C	8.1 In \| 152 Mm
Dimension H	20.2 In \| 513 Mm
Maximum Flow At Rated Pressure imperial	40 in3/min
Shipping Weight	136 lbs
Dimension B	11 In \| 279 Mm
Usable Oilcapacity	2 Gal

Specifications

More Information
OPT SKU	ENP-ZE3408SB
MPN	ZE3408SB
UPC/GTIN	662005130511
Product Type	Electric Hydraulic Pump
Google Category	Hardware > Hardware Pumps
Power Method	Corded/Electric
Voltage	110V/120V
Shipping Weight	112.00
