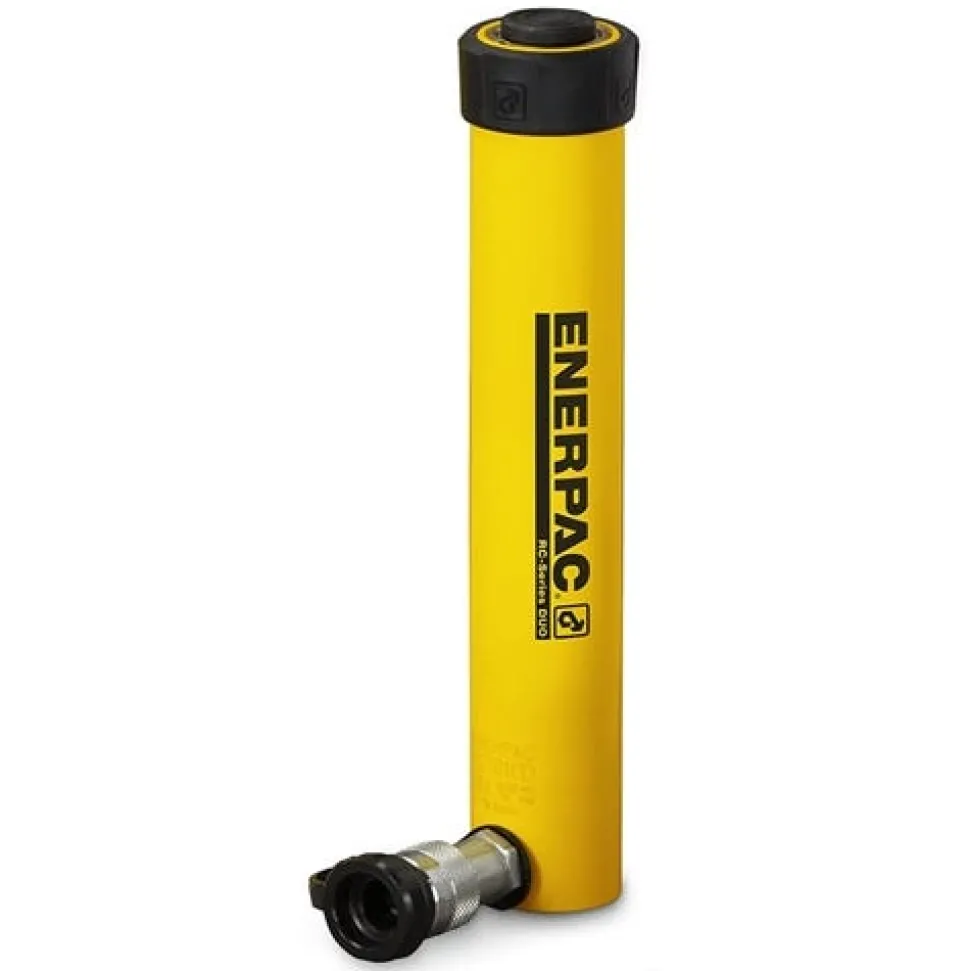

Enerpac 15.7 Ton Hydraulic 10″ Stroke Single-Acting General Purpose Cylinder RC1510

Enerpac

15.7 Ton Hydraulic 10 Stroke Single-Acting General Purpose Cylinder RC1510

This Enerpac RC1510 single-acting alloy steel hydraulic cylinder with 15-ton capacity has a round body with one port and spring-return of the single piston rod with 10″ stroke for use in general-purpose applications in any position. The single-acting hydraulic cylinder uses liquid pumped through its single port for rod extension and a pretensioned internal spring for expedited rod retraction to produce continued movement.

FEATURES:

• Unique GR2 Bearing Design; reduces wear; extending life.
• Base mounting holes enable easy fixturing.
• Designed for use in all positions.
• High strength alloy steel for durability.
• Redesigned cylinder thread protector for ease of use.
• Heavy-duty; pretensioned spring improves retraction speed.
• Baked enamel finish for increased corrosion resistance.
• CR-400 coupler and dust cap included on all models.
• Plunger wiper reduces contamination; extending.

SPECIFICATIONS:

Maximum Operating Pressure (psi)	10;000
Capacity Class (tonnage)	15
Maximum Cylinder Capacity Advance (tons)	15.7
Stroke (in)	10
Collapsed Height A (in)	14.69
Extended Height B (in)	24.69
Return Type	Single-Acting; Spring Return
Plunger Type	Solid
Material	Steel
Cylinder Effective Area Advance (in2)	3.14
Oil Capacity Advance (in3)	31.42
Surface Treatment	Paint

“
