Enerpac

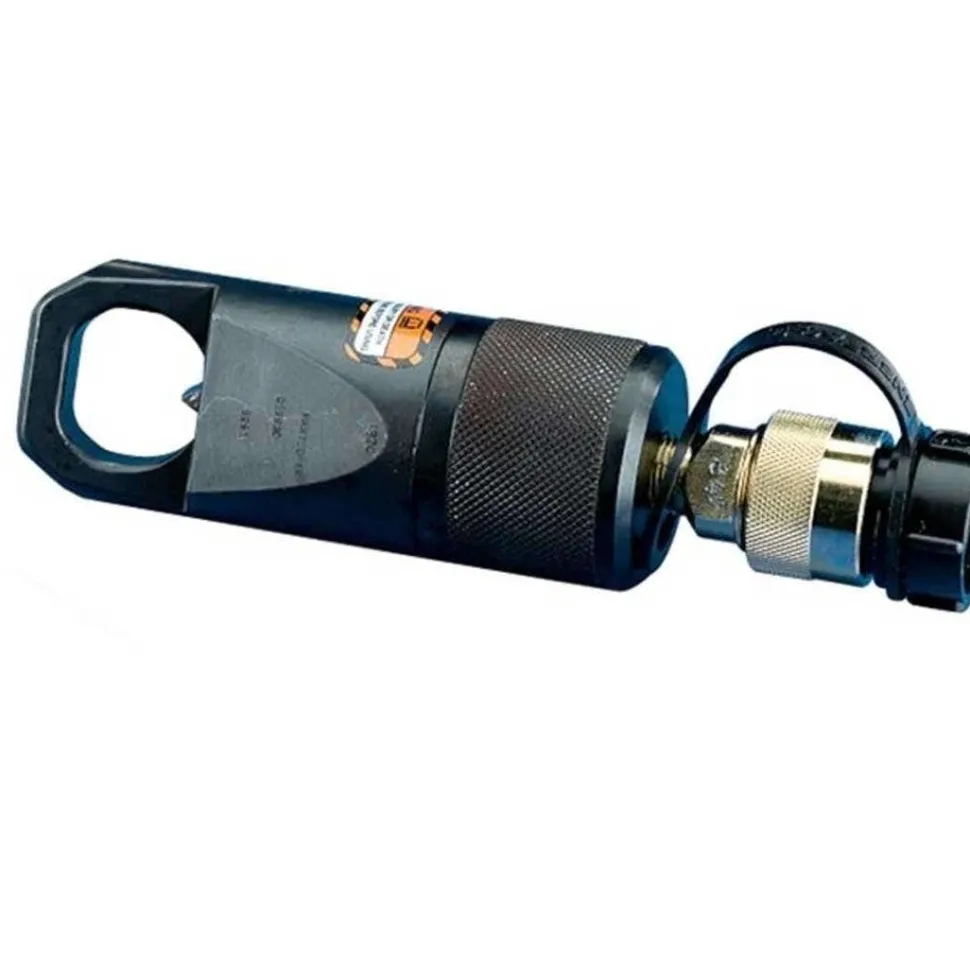

20 Ton Capacity Hydraulic Nut Cutter NC3241
FEATURES:
- Compact and ergonomic design, easy to use
- Unique angled head allows flush access
- Single-acting, spring return cylinder
- Heavy-duty chisels can be reground
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Capacity (imperial tons) | 20 |
| Cutter Head Return Type | Single-Acting, Spring Return |
| Hexagon Nut Range (in) | 1.13 – 1.56 |
INCLUDES:
(1) Nut Cutter
| Width | 2.95 in | 75 mm |
|---|---|
| Dimension B | 9.61 In | 244 Mm |
| Product Line | Industrial Tools, Bolting Tools |
| Oil Capacity | 4.88 in³ | 80 cm³ |
| Dimension F | 2.6 In | 66 Mm |
| Bolt Range | .88 – 1.13 in | M22 – M27 mm |
| Dimension J | 43 Mm |
| Type | Cutter |
| Capacity | 196 kN |
| Shipping Weight | 17.1 lbs |
| Country of Origin | Taiwan |
| Capacity Imperialtons | 20 |
| Length | 11.26 in | 286 mm |
| Replacement Chisel Model Number | NCB3241 |
| Dimension D | 36 Mm |
| Dimension A | 2.95 In | 75 Mm |
| Hexagon Nut Range | 1.13 – 1.56 in | 32 – 41 mm |
| Replacement Chisel Model Number Moving | NCB3241 |
| Cutter Head Return Type | Single-Acting, Spring Return |
| Dimension H | 3.46 In | 88 Mm |
| Height | 3.5 in | 89 mm |
| News Feed Product Group | Cutters |
| Maximum Allowable Hardnessto Split | HRC 44 |
| Weight | 9.7 lbs | 4.4 kgs |
| Sub Types | Nut Cutter |
| Dimension C | 0.67 In | 17 Mm |
| OPT SKU | ENP-NC3241 |
|---|---|
| MPN | NC3241 |
| UPC/GTIN | 662005850150 |
| Product Type | Hydraulic Pullers & Spreaders |
| Google Category | Business & Industrial > Material Handling |
| Shipping Weight | 10.00 |
