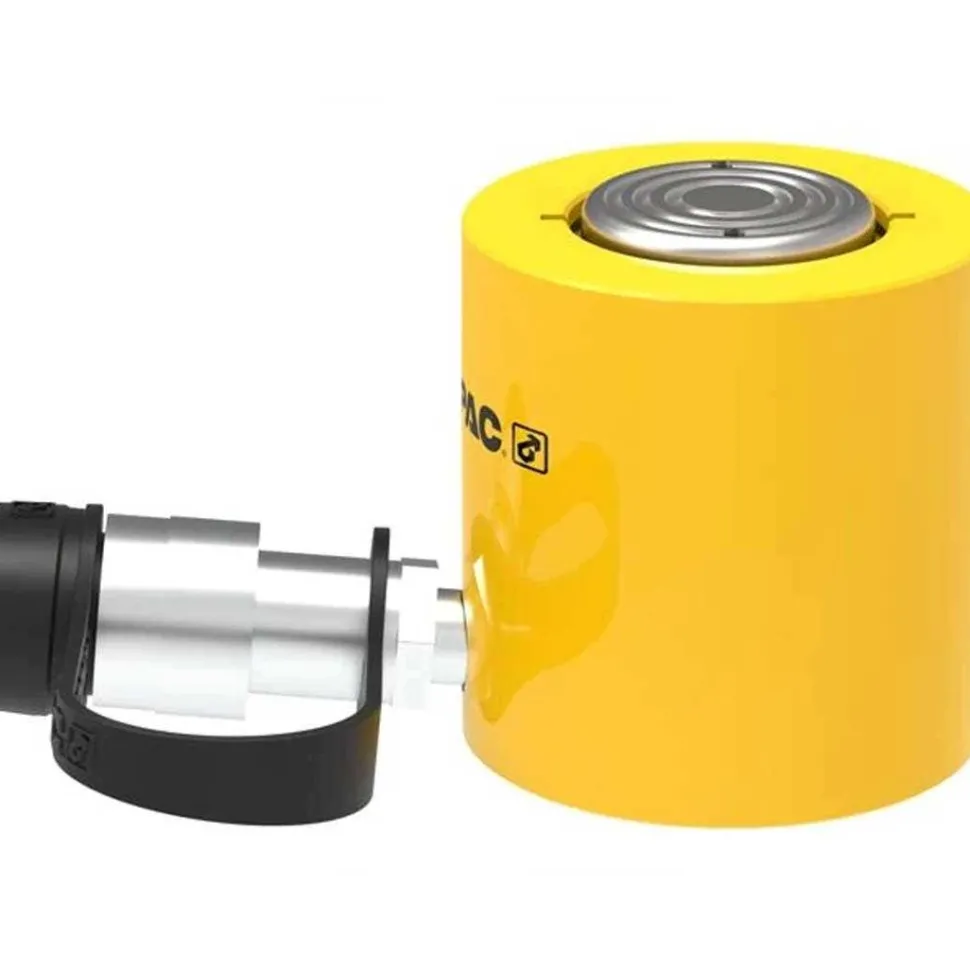

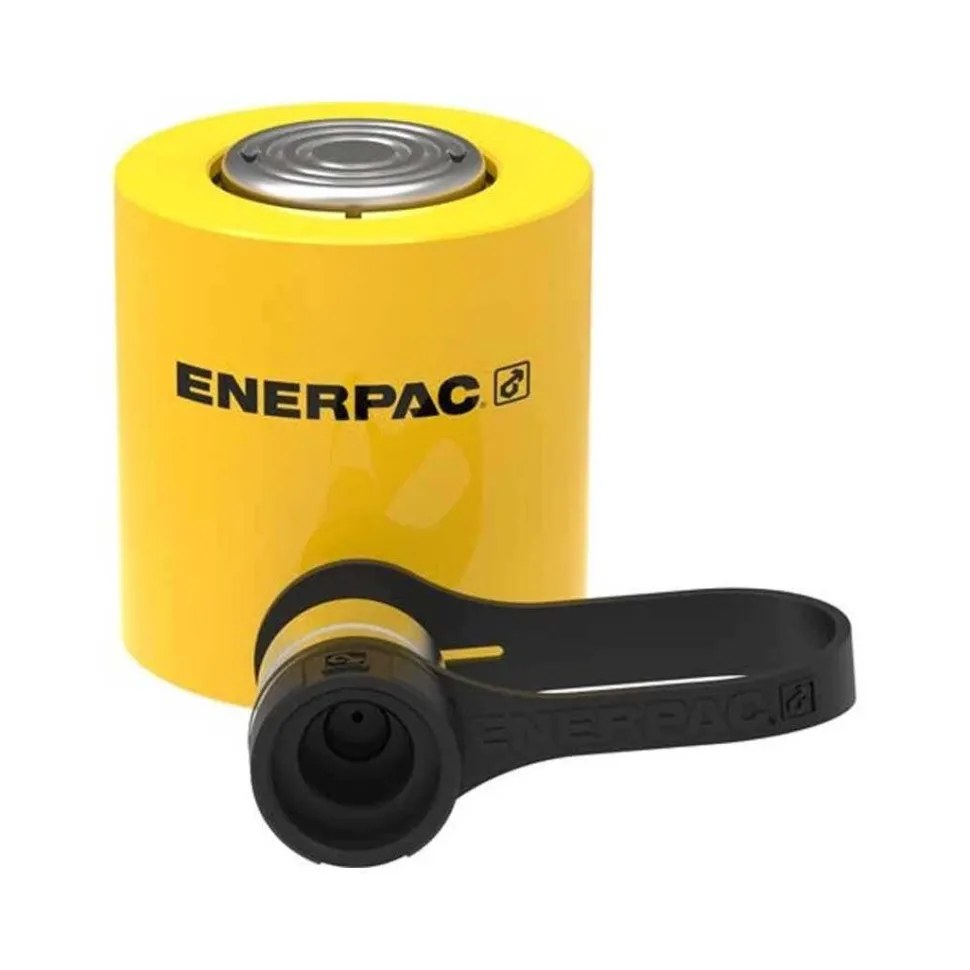

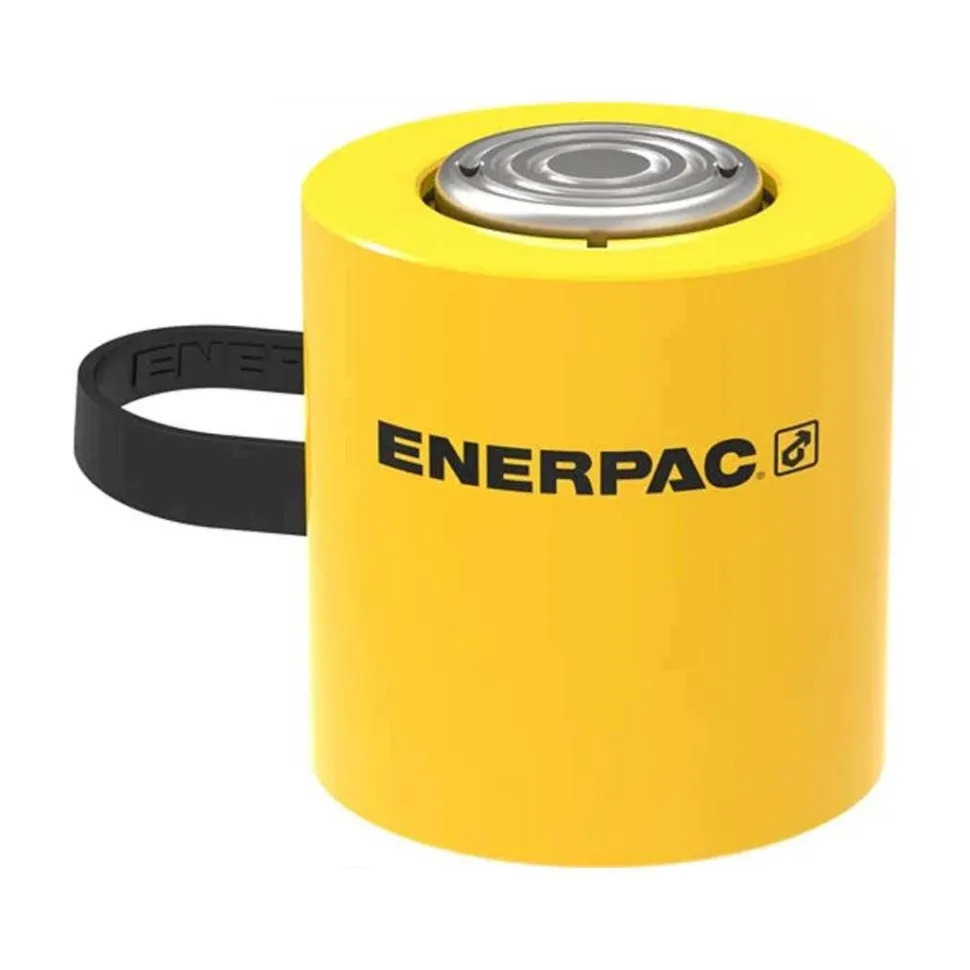

Enerpac 221 ton Capacity, 1.75 in Stroke, Low Height Hydraulic Cylinder RCS201
$134.89
Enerpac
22.1 ton Capacity, 1.75 in Stroke, Low Height Hydraulic Cylinder RCS201
RCS-Series Low Profile Hydraulic Cylinders feature a short-collapsed height, which is ideal for applications with limited space. These Low Profile Jacks are commonly used to lift or jack a load.
FEATURES:
- Lightweight, low profile design for use in confined spaces
- Plunger wiper reduces contamination, extending cylinder life
- Grooved plunger end with threaded holes for mounting tilt saddles
- Baked enamel finish for increased corrosion resistance
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Stroke (in) | 1.75 |
| Maximum Cylinder Capacity Advance (short tons) | 22.1 |
INCLUDES:
(1) Hydraulic Cylinder
| Product Line | Industrial Tools |
|---|---|
| Stroke Ranges | 1.0 – 1.99 in | 24 – 47 mm |
| Baseto Advance Port H | 0.69 in | 17 mm |
| Saddle Diameter J | 1.97 in | 50 mm |
| Shipping Weight | 11.05 lbs |
| Cylinder Class | 20 Imperial Tons |
| Weight | 11 lbs | 5,0 kgs |
| Plunger internal Thread O | M5 in |
| Cylinder Effective Area Advance | 4.43 in² | 28,7 cm² |
| Collapsed Height A | 3.88 in | 98 mm |
| Saddle Protrusion From Plunger K | 3 mm |
| Oil Capacity Advance | 7.75 in³ | 129 cm³ |
| Plunger internal Threadin O | M5 in |
| Cylinder Bore Diameter E | 2.38 in | 60,5 mm |
| Saddle Protrusionfrom Plunger K1 | 3 mm |
| News Feed Product Group | Cylinders and Jacks |
| Optional Tilt Saddle Addition To Collapsed Height A 1 | 1.02 in | 26 mm |
| Upsell item | SCL201TB,CUSP20 |
| Return Type | Single-Acting, Spring Return |
| Saddle Protrusionfrom Plunger K | 0.13 in |
| Saddle Diameter J1 | 50 mm |
| Plunger Diameter F | 2 in | 50,8 mm |
| Cylinder Material | Steel |
| Maximum Operating Pressure Ranges psi | 10000 |
| Base Mounting Holes Bolt Circle U | 1.57 in | 40 mm |
| Saddle Maximum Tilt Angle Radius Degrees | 5 |
| Surface Treatment | Paint |
| Country of Origin | China |
| Sub Types | Low Height Cylinder |
| Type | Hydraulic Cylinders |
| Extended Height B | 5.63 in | 143 mm |
| Maximum Cylinder Capacity Advance | 22.1 Imperial Tons | 201 kN |
| Plunger Thread Length P | 0.32 in | 8 mm |
| Collapsed Height A Ranges | 0 – 4.99 in | 0 – 127 mm |
| Outside Diameter D | 3.63 in | 92 mm |
| Plunger Type | Solid |
| OPT SKU | ENP-RCS201 |
|---|---|
| MPN | RCS201 |
| UPC/GTIN | 662005302109 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 1″ |
| Tonnage | 20-Ton |
| Shipping Weight | 11.00 |
