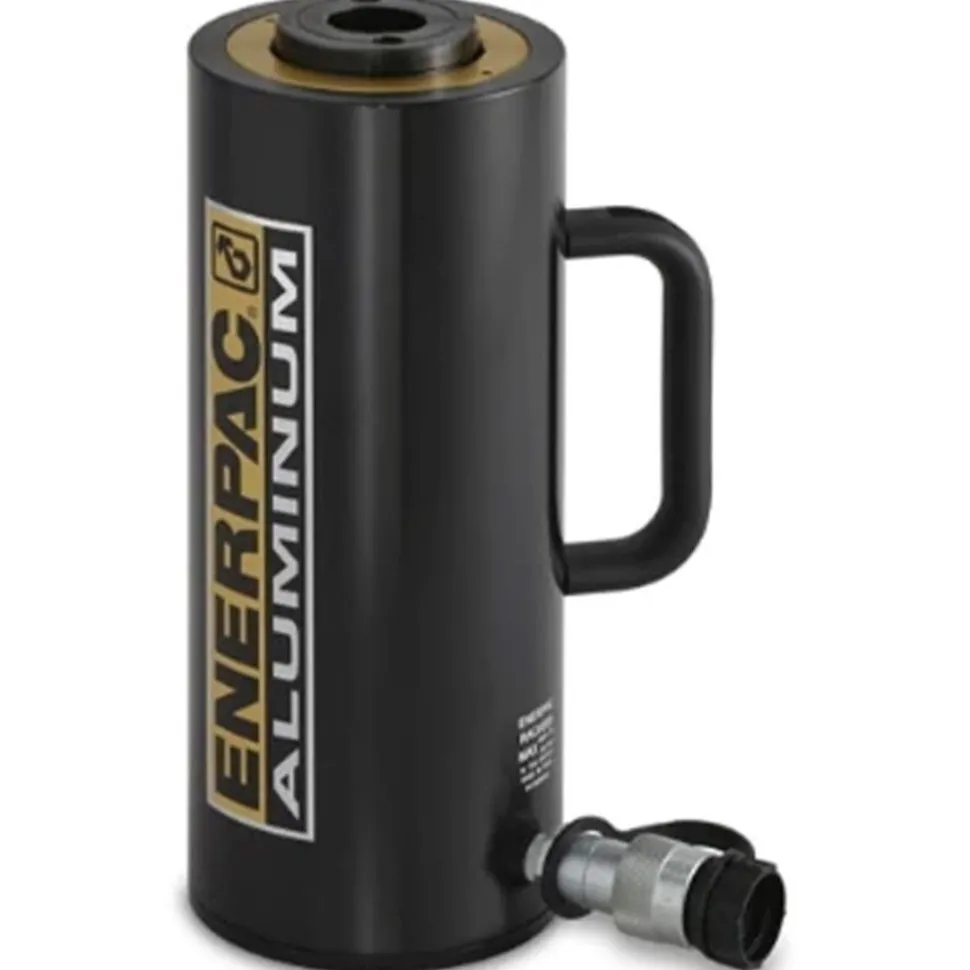

Enerpac 25.4 Ton Hydraulic 5.91″ Stroke Single-Acting Hollow Plunger Cylinder RACH-206
Original price was: $3,321.00.$138.89Current price is: $138.89.
Enerpac
25.4 Ton Hydraulic 5.91″ Stroke Single-Acting Hollow Plunger Cylinder RACH206
FEATURES:
- Hollow plunger design allows for both pull and push forces.
- Composite bearings increase cylinder life and side load resistance.
- Hard coat finish on all surfaces resists damage and extends cylinder life.
- Handles included on all models.
- Floating center tube increases seal life.
- Steel baseplate and saddle for protection against load-induced damage.
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity.
- High-strength return spring for rapid cylinder retraction.
- CR-400 coupler and dustcap included on all models.
- All cylinders meet ASME B-30.1 standards.
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
|---|---|
| Capacity Class (tonnage) | 20 |
| Maximum Cylinder Capacity Advance (tons) | 25.4 |
| Stroke (in) | 5.91″ |
| Return Type | Single-Acting, Spring Return |
| Plunger Type | Hollow |
| Material | Aluminum |
| Cylinder Effective Area Advance (in2) | 5.07 |
| Oil Capacity Advance (in3) | 29.94 |
| Surface Treatment | Anodized |
| Coupler | CR400 Coupler |
| Baseto Advance Port H | 1.14 in | 29 mm |
|---|---|
| Plunger Diameter F | 2.17 in | 55 mm |
| News Feed Product Group | Cylinders and Jacks |
| Collapsed Height A Ranges | 10.0 – 14.99 in | 255 – 381 mm |
| Saddle Protrusionfrom Plunger K | 0.4 in |
| Return Type | Single-Acting, Spring Return |
| Base Mounting Holes Thread V | M6 |
| Cylinder Material | Aluminum |
| Saddle Diameter J1 | 55 mm |
| Product Line | Industrial Tools |
| Surface Treatment | Anodized |
| Cylinder Effective Area Advance | 5.07 in² | 32,7 cm² |
| Center Hole Diameter Y | 1.06 in | 27 mm |
| Stroke Ranges | 4.5 – 6.99 in | 120 – 174 mm |
| Collapsed Height A | 12.41 in | 315 mm |
| Cylinder Class | 20 Imperial Tons |
| Saddle Diameter J | 2.17 in | 55 mm |
| Shipping Weight | 14.69 lbs |
| Extended Height B | 18.32 in | 465 mm |
| Saddle Protrusionfrom Plunger K1 | 10 mm |
| Cylinder Bore Diameter E | 2.95 in | 75 mm |
| Outside Diameter D | 3.93 in | 100 mm |
| Maximum Cylinder Capacity Advance | 25.4 Imperial Tons | 229 kN |
| Base Mounting Holes Thread Depth Z | 12 mm |
| Sub Types | Aluminum Hollow Plunger Cylinder |
| Country of Origin | India |
| Weight | 15.6 lbs | 7,1 kgs |
| Saddle Protrusion From Plunger K | 10 mm |
| Type | Hydraulic Cylinders |
| Maximum Operating Pressure Ranges psi | 10000 |
| Base Mounting Holes Bolt Circle U | 80 mm |
| Plunger Type | Hollow |
| Oil Capacity Advance | 29.94 in³ | 491 cm³ |
| OPT SKU | ENP-RACH206 |
|---|---|
| MPN | RACH-206 |
| UPC/GTIN | 662005126385 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 6″ |
| Tonnage | 20-Ton |
| Shipping Weight | 17.00 |
