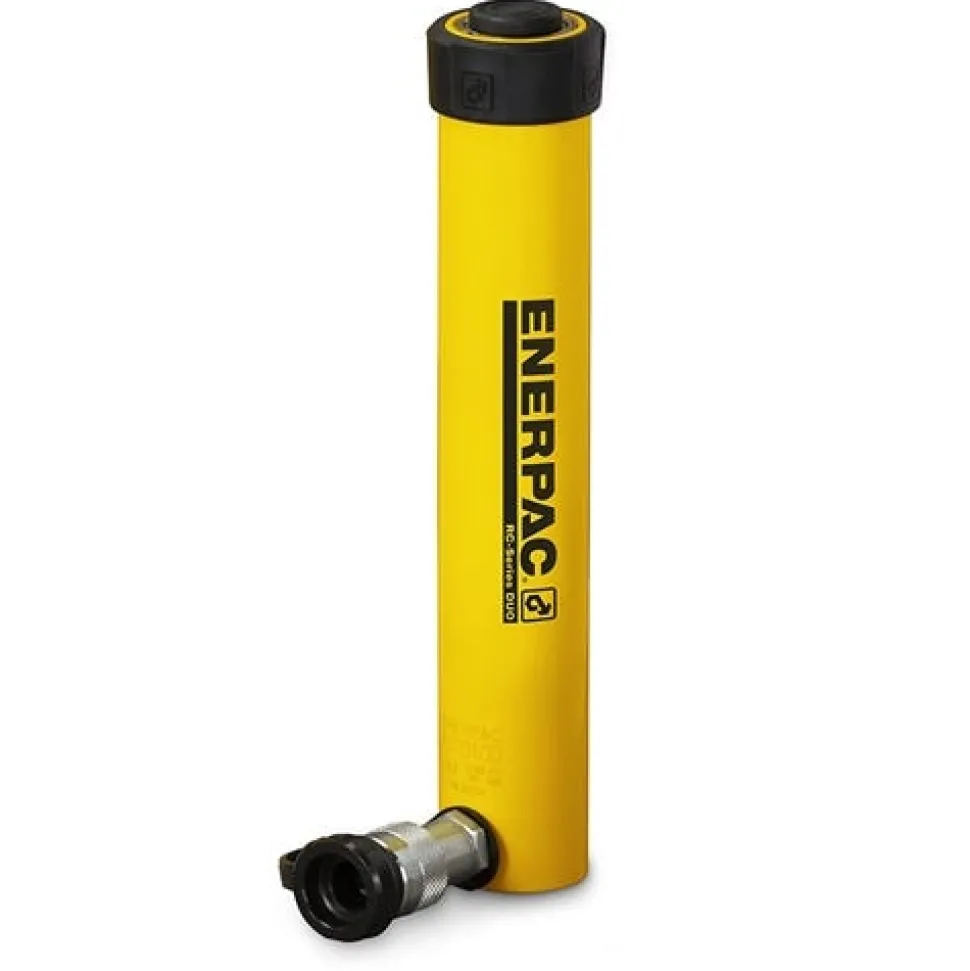

Enerpac 25.8 ton Capacity, 4.00 in Stroke, General Purpose Hydraulic Cylinder RC254
$130.89
Enerpac
25.8 ton Capacity, 4.00 in Stroke, General Purpose Hydraulic Cylinder RC254
RC-Series Hydraulic Cylinders are incredibly durable and versatile. These single acting hydraulic cylinders are suitable for a wide range of applications; lifting, pushing, or pressing.
FEATURES:
- Bearing system with composite wear bands for optimal sideload resistance
- Strengthened stop ring improves durability and side load resistance
- Trio Hybrid pre-tensioned spring system provides faster retraction
- High-grade polyethylene seals for low wear and long service life
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Maximum Cylinder Capacity Advance (short tons) | 25.8 |
| Stroke (in) | 4 |
INCLUDES:
(1) Hydraulic Cylinder
| Return Type | Single-Acting, Spring Return |
|---|---|
| Product Line | Industrial Tools |
| Surface Treatment | Paint |
| Saddle Protrusion From Plunger K | 10 mm |
| Saddle Maximum Tilt Angle Radius Degrees | 5 |
| Collar Thread W | 3 5/16″ – 12 UN in | 3 5/16″ – 12 un mm |
| Base Mounting Holes Thread V | 1/2″- 13 un | 1/2″ – 13un in |
| Saddle Diameter J1 | 50 mm |
| Sub Types | General Purpose Cylinder |
| Upsell item | RAC304,RR308 |
| Oil Capacity Advance | 20.63 in³ | 339 cm³ |
| Plunger Thread Length P | 1 in | 25 mm |
| Cylinder Class | 25 Imperial Tons |
| Base Mounting Holes Thread Depth Z | 0.75 in | 19 mm |
| Country of Origin | China |
| Saddle Protrusionfrom Plunger K | 0.41 in |
| Collapsed Height A Ranges | 5.0 – 9.99 in | 128 – 254 mm |
| Maximum Cylinder Capacity Advance | 25.8 Imperial Tons | 232 kN |
| Plunger Type | Solid |
| Saddle Diameter J | 1.97 in | 51 mm |
| Optional Tilt Saddle Addition To Collapsed Height A 1 | 0.59 in | 15 mm |
| Cylinder Effective Area Advance | 5.16 in² | 33,3 cm² |
| Plunger internal Threadin O | 1 1/2″ – 16 in |
| Outside Diameter D | 3.38 in | 86 mm |
| Base Mounting Holes Bolt Circle U | 2.31 in | 59 mm |
| Plunger Diameter F | 2.25 in | 57,2 mm |
| Extended Height B | 12.5 in | 318 mm |
| Cylinder Bore Diameter E | 2.56 in | 65,1 mm |
| Type | Hydraulic Cylinders |
| Stroke Ranges | 3.0 – 4.49 in | 95 – 119 mm |
| Weight | 18 lbs | 8,2 kgs |
| Collapsed Height A | 8.5 in | 216 mm |
| Cylinder Material | Steel |
| Baseto Advance Port H | 1 in | 25 mm |
| Plunger internal Thread O | 1 1/2″ – 16 in |
| Saddle Protrusionfrom Plunger K1 | 10 mm |
| Optional Tilt Saddle Diameter J1 | 1.97 in |
| Maximum Operating Pressure Ranges psi | 10000 |
| Shipping Weight | 18.35 lbs |
| News Feed Product Group | Cylinders and Jacks |
| Collar Thread Length X | 1.94 in | 49 mm |
| OPT SKU | ENP-RC254 |
|---|---|
| MPN | RC254 |
| UPC/GTIN | 662005301362 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 4″ |
| Tonnage | 25-Ton |
| Shipping Weight | 18.00 |
