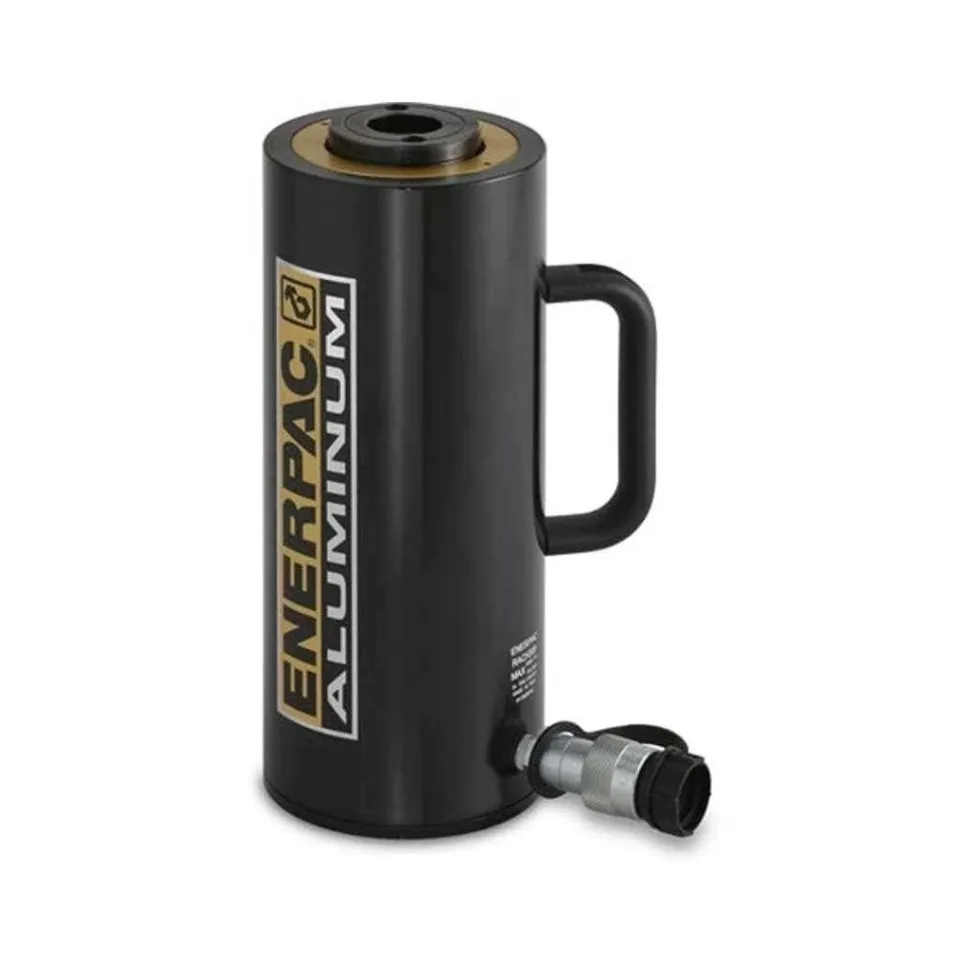

Enerpac 254 ton Capacity, 1.97 in Stroke, Aluminum Hollow Plunger Hydraulic Cylinder RACH202
Original price was: $2,862.00.$140.99Current price is: $140.99.
Enerpac
25.4 ton Capacity, 1.97 in Stroke, Aluminum Hollow Plunger Hydraulic Cylinder RACH202
FEATURES:
- Hollow plunger design allows for both pull and push forces
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles included on all models
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Maximum Cylinder Capacity Advance (short tons) | 25.4 |
| Return Type | Single-Acting, Spring Return |
| Stroke (in) | 1.97 |
INCLUDES:
(1) Hydraulic Cylinder
| Collapsed Height A Ranges | 5.0 – 9.99 in | 128 – 254 mm |
|---|---|
| Product Line | Industrial Tools |
| Collapsed Height A | 7.41 in | 188 mm |
| Cylinder Material | Aluminum |
| Center Hole Diameter Y | 1.06 in | 27 mm |
| Base Mounting Holes Thread Depth Z | 12 mm |
| Saddle Protrusionfrom Plunger K | 0.4 in |
| Return Type | Single-Acting, Spring Return |
| Cylinder Bore Diameter E | 2.95 in | 75 mm |
| Maximum Operating Pressure Ranges psi | 10000 |
| Base Mounting Holes Bolt Circle U | 80 mm |
| Type | Hydraulic Cylinders |
| News Feed Product Group | Cylinders and Jacks |
| Cylinder Class | 20 Imperial Tons |
| Country of Origin | India |
| Base Mounting Holes Thread V | M6 |
| Oil Capacity Advance | 9.98 in³ | 164 cm³ |
| Plunger Type | Hollow |
| Weight | 11.5 lbs | 5,2 kgs |
| Cylinder Effective Area Advance | 5.07 in² | 32,7 cm² |
| Shipping Weight | 12 lbs |
| Saddle Protrusionfrom Plunger K1 | 10 mm |
| Extended Height B | 9.38 in | 238 mm |
| Sub Types | Aluminum Hollow Plunger Cylinder |
| Outside Diameter D | 3.93 in | 100 mm |
| Maximum Cylinder Capacity Advance | 25.4 Imperial Tons | 229 kN |
| Saddle Diameter J1 | 55 mm |
| Saddle Protrusion From Plunger K | 10 mm |
| Stroke Ranges | 1.0 – 1.99 in | 48 – 94 mm |
| Baseto Advance Port H | 1.14 in | 29 mm |
| Surface Treatment | Anodized |
| Saddle Diameter J | 2.17 in | 55 mm |
| Plunger Diameter F | 2.17 in | 55 mm |
| OPT SKU | ENP-RACH202 |
|---|---|
| MPN | RACH202 |
| UPC/GTIN | 662005126378 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 2″ |
| Tonnage | 20-Ton |
| Shipping Weight | 12.00 |
