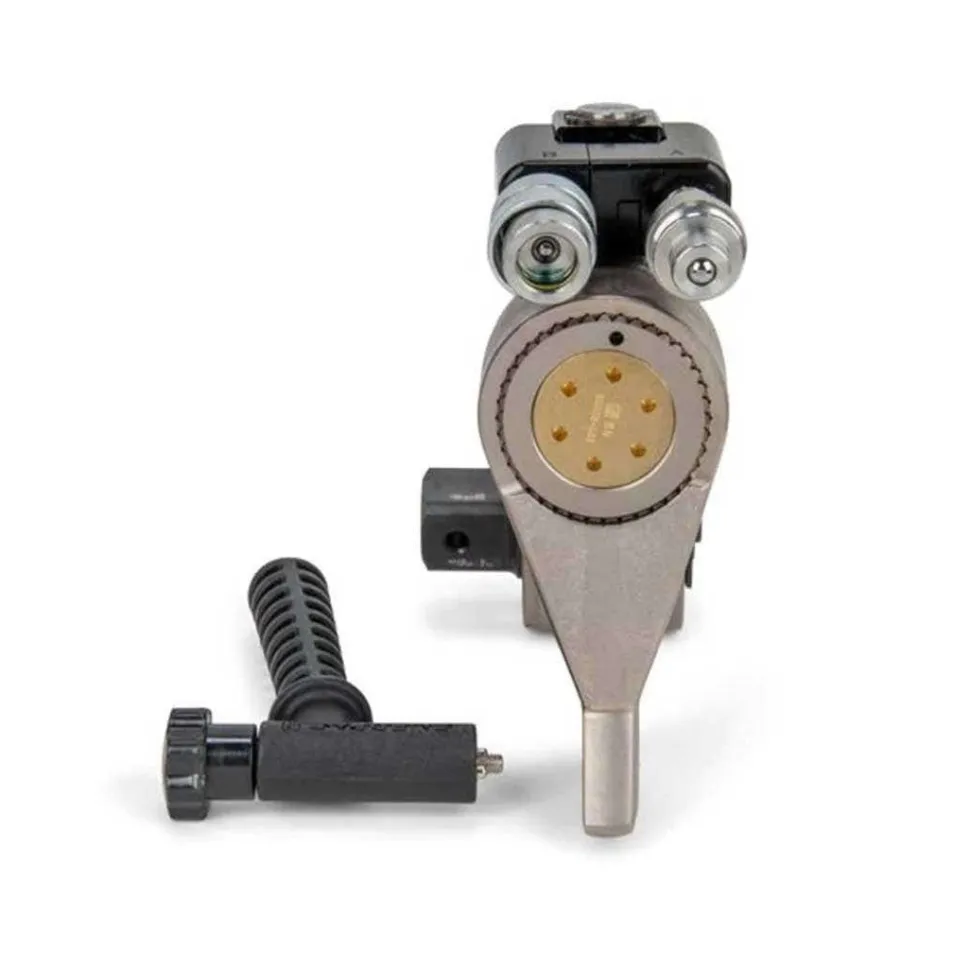

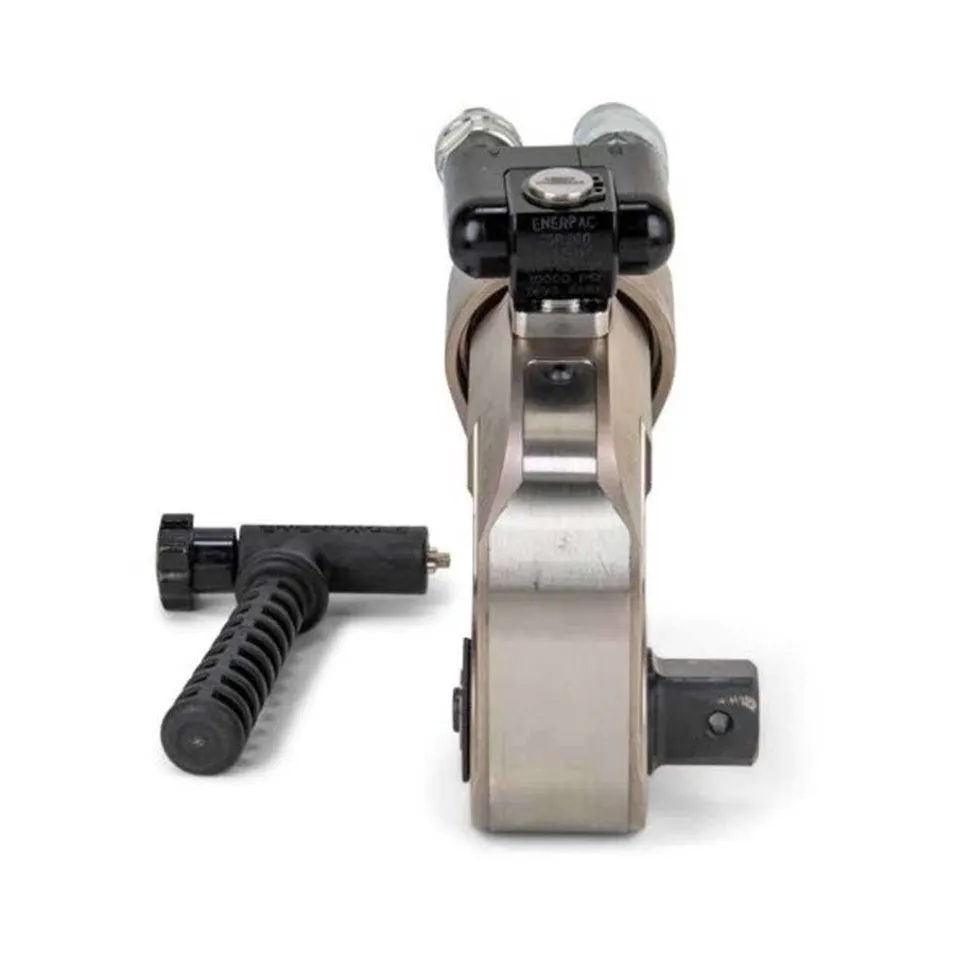

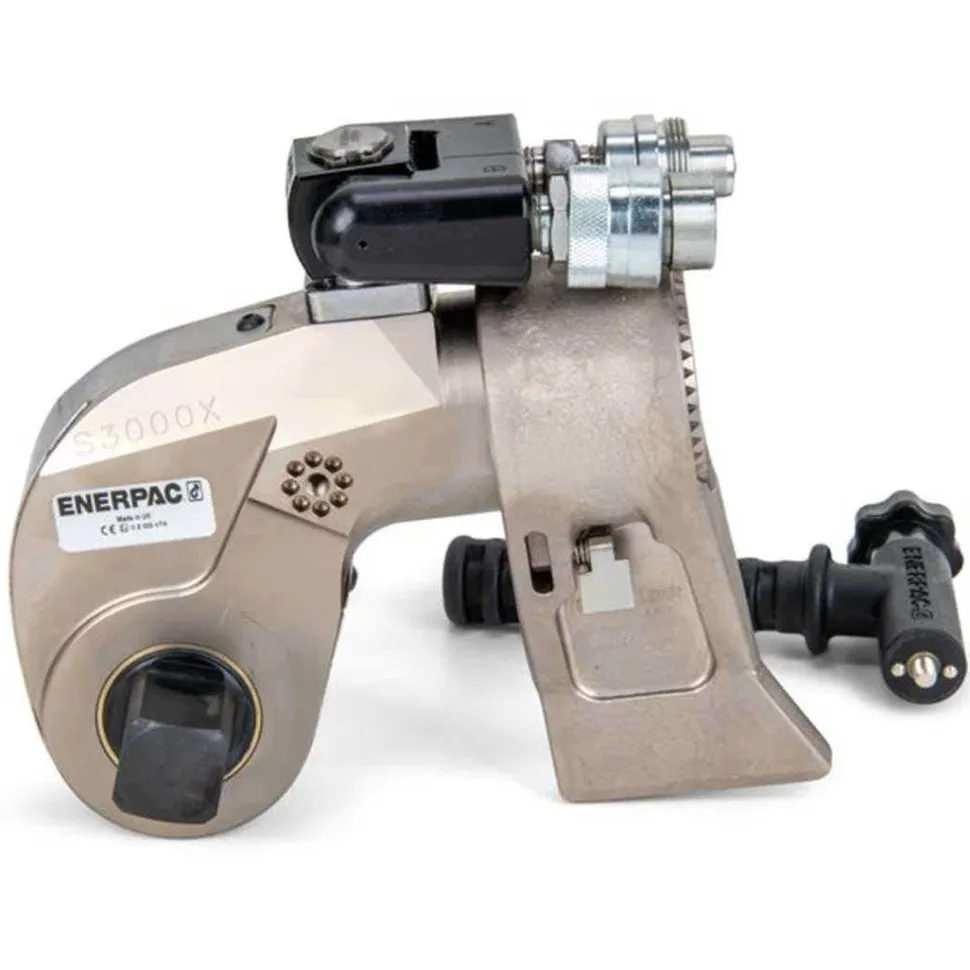

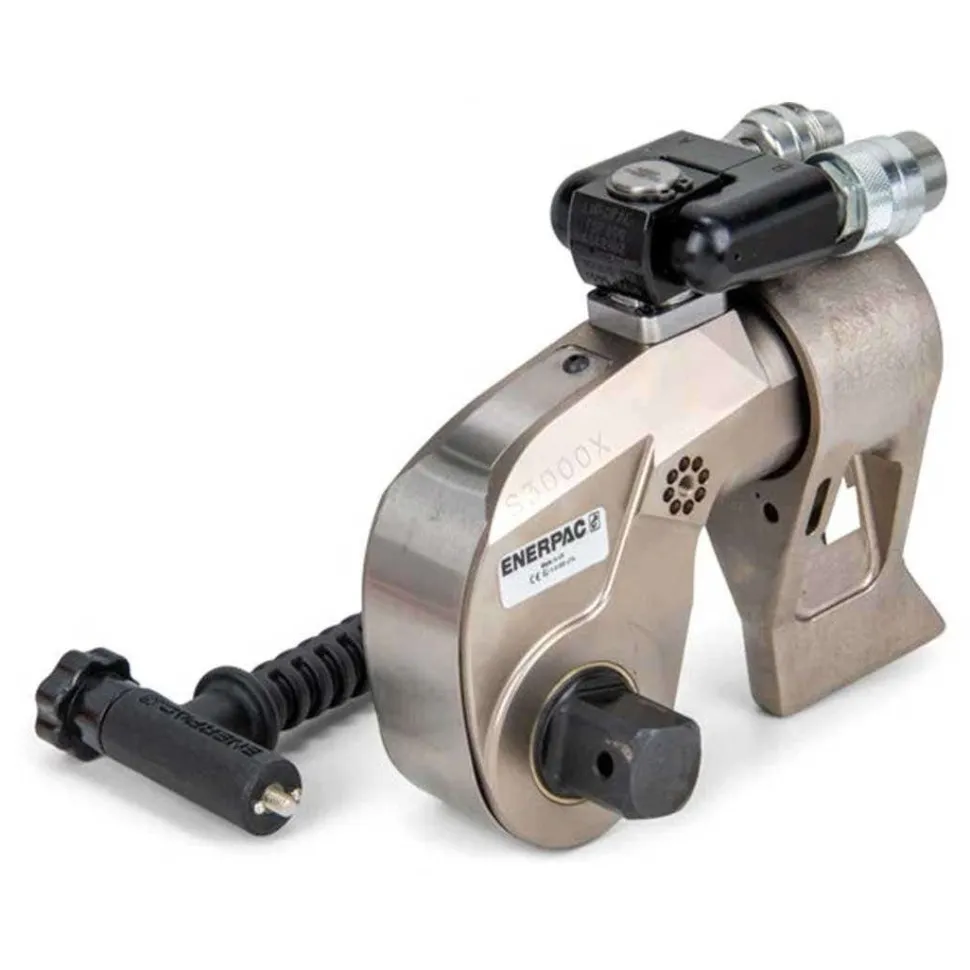

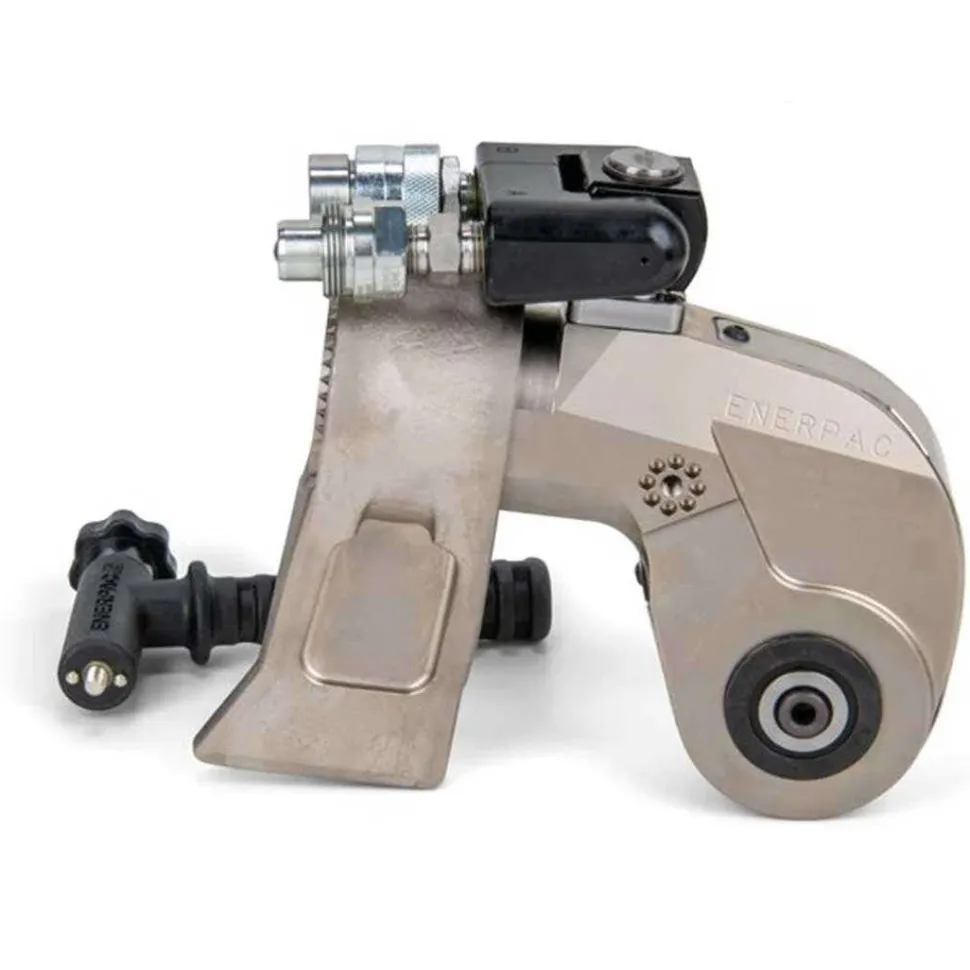

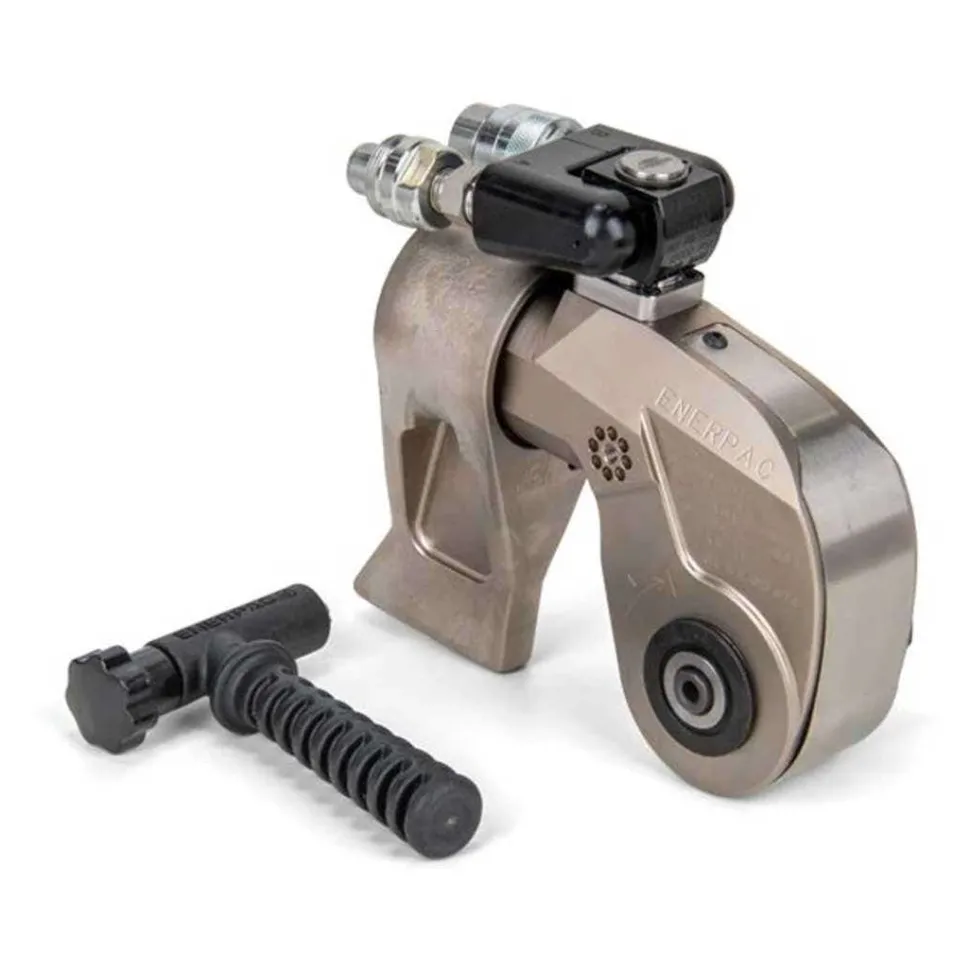

Enerpac 3225' lbs Torque, 1" Square Drive Hydraulic Torque Wrench with Pro Series Swivel S3000PX

Enerpac 3225′ lbs Torque, 1″ Square Drive Hydraulic Torque Wrench with Pro Series Swivel S3000PX

$138.99

SKU: SKUa70nOwnRHa Categories: Power Tools, Torque Wrenches & Multipliers Tag: Enerpac Brand: Enerpac

Description
Reviews (0)

Additional Details

Enerpac

3225 ft. lbs. Torque, 1 in. Square Drive Hydraulic Torque Wrench with Pro Series Swivel S3000PX

FEATURES:

Compact, high-strength uni-body construction provides a small operating radius without sacrificing endurance
35° rotation angle and rapid return stroke for fast operation
Tough manifold design with added safety feature for enhanced operator safety
360° click-on reaction arm with quick release lever provides easier handling, even when wearing gloves

SPECIFICATIONS:

Maximum Torque Output (Ft.lbs)	3225
Minimum Torque (Ft.lbs)	323
Maximum Operating Pressure (psi)	10,000
Square Drive (in)	1

INCLUDES:

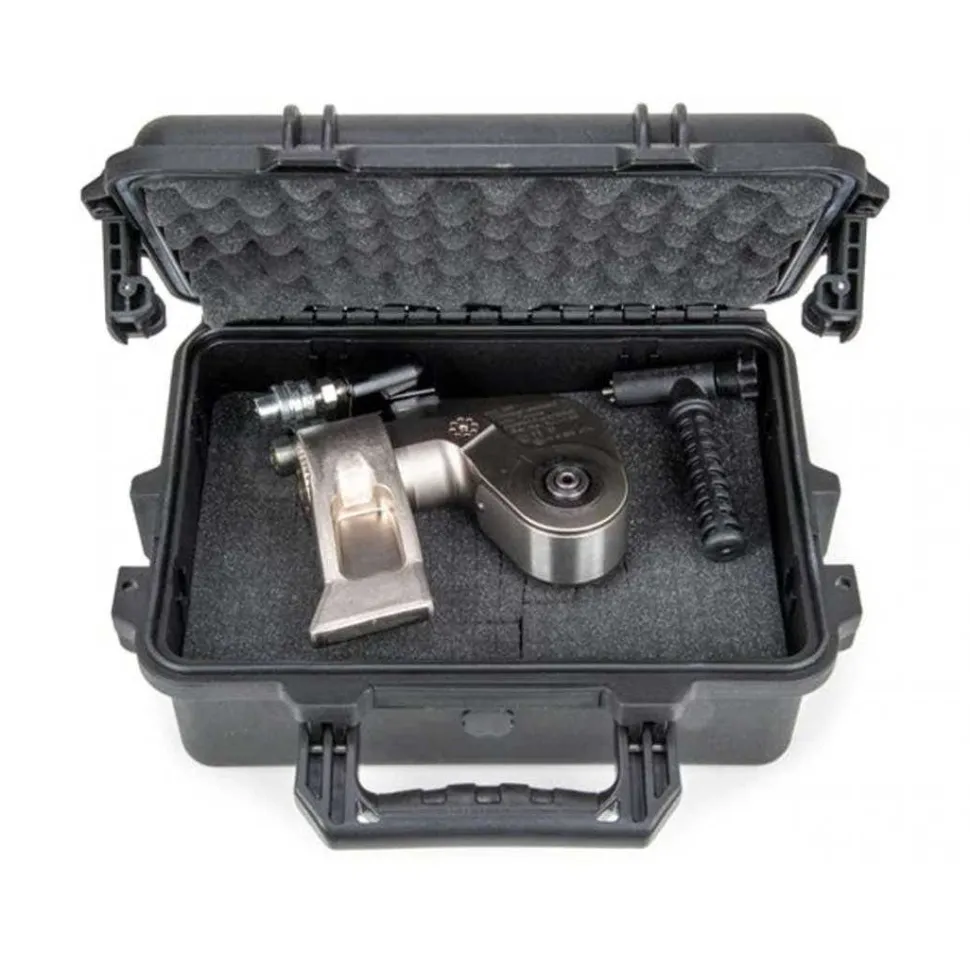

(1) Torque Wrench

Manufacturer Specifications

News Feed Product Group	Torque Wrenches, Torque Wrench Pumps
Dimension C	5.31 In \| 135 Mm
Shipping Weight	21.4 lbs
Type	Torque Wrench
Minimum Torque Rated At	1000 psi 69 bar
Dimension B	3.15 In \| 78 Mm
Country of Origin	United Kingdom
Square Drivein	1
Weight	12.3 lbs \| 5.6 kgs
Nominal Torque Rated At	10,000 psi 690 bar
Width	3.07 in \| 78 mm
Height	6.04 in \| 153 mm
Dimension H	6.34 In \| 161 Mm
Upsell item	S6000X,S11000X,S25000X,DSX1500,DSX3000,DSX5000,DSX11000,DSX25000,RSL3000,RSL5000,RSL8000,RSL11000,RSL19000,RSL28000
Maximum Torque Output	3225 ft lbs \| 4373 Nm
Sub Types	Square Drive Torque Wrench
Model type	with swivel manifold
Minimum Torque	323 ft lbs \| 437 Nm
Dimension G	3.54 In \| 90 Mm
Dimension E	6.81 In \| 173 Mm
Dimension D	5.04 In \| 128 Mm
Length	6.81 in \| 173 mm
Nominal Torque	3225 ft lbs \| 4373 Nm
Dimension A	1.89 In \| 48 Mm
Bundle Product Ids	SWH6A,TSP300,SD30100
Dimension F	1.3 In \| 33 Mm
Product Line	Bolting Tools
Material type	Steel
