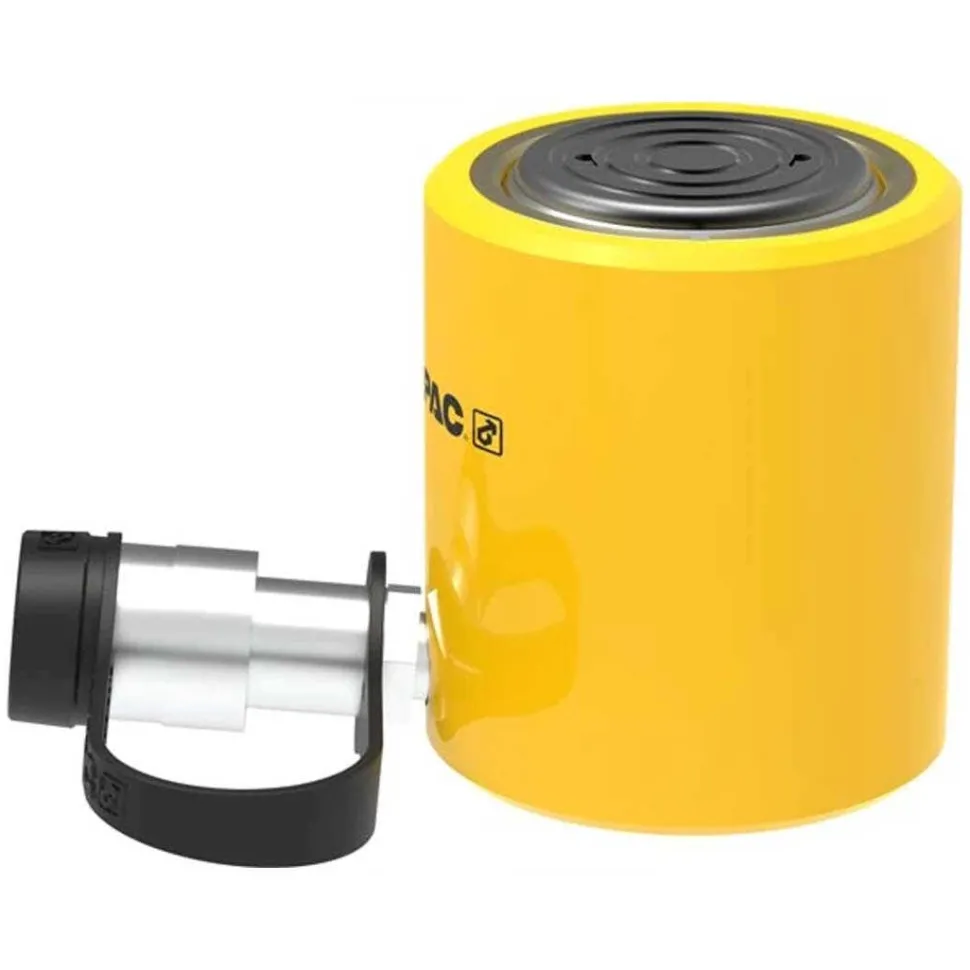

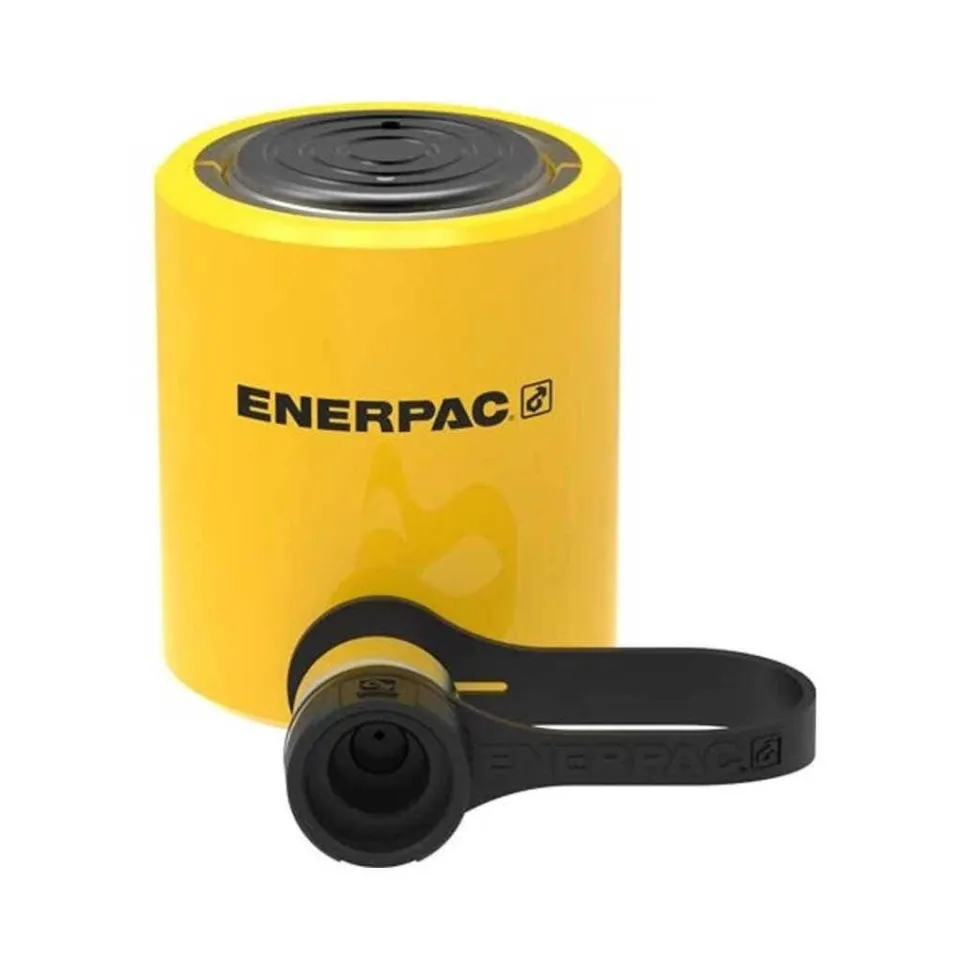

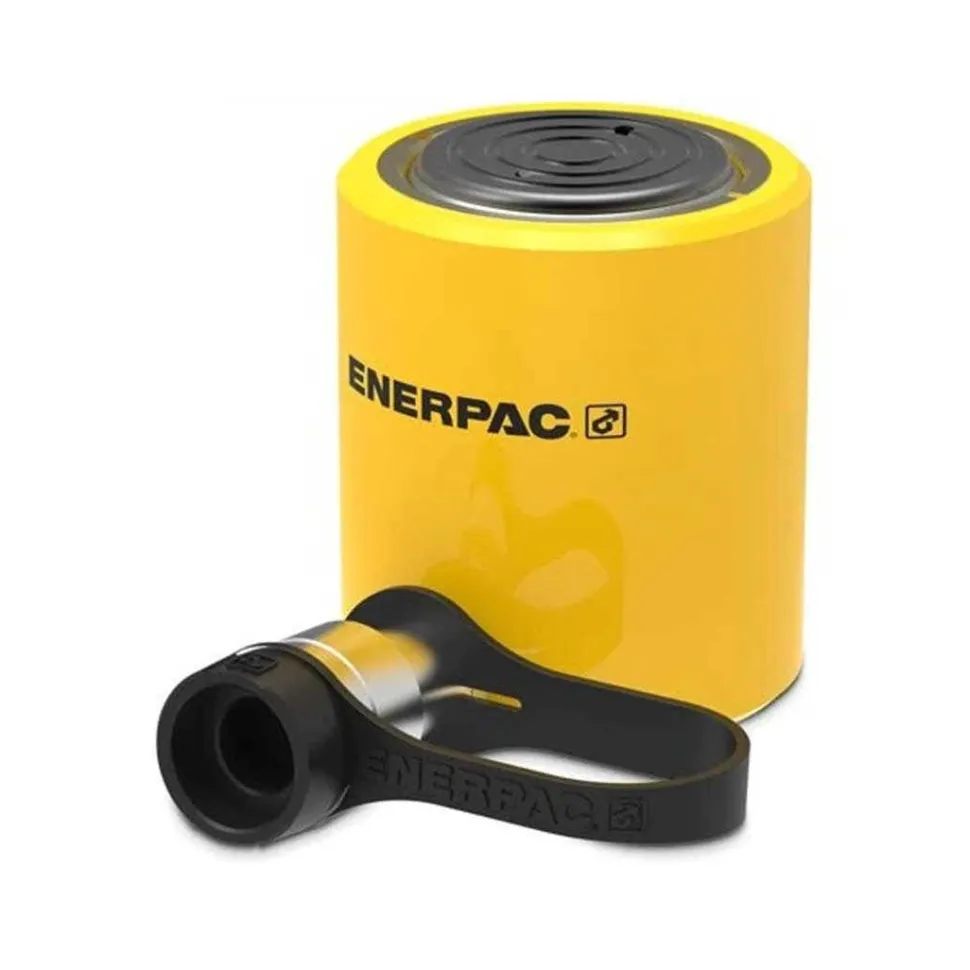

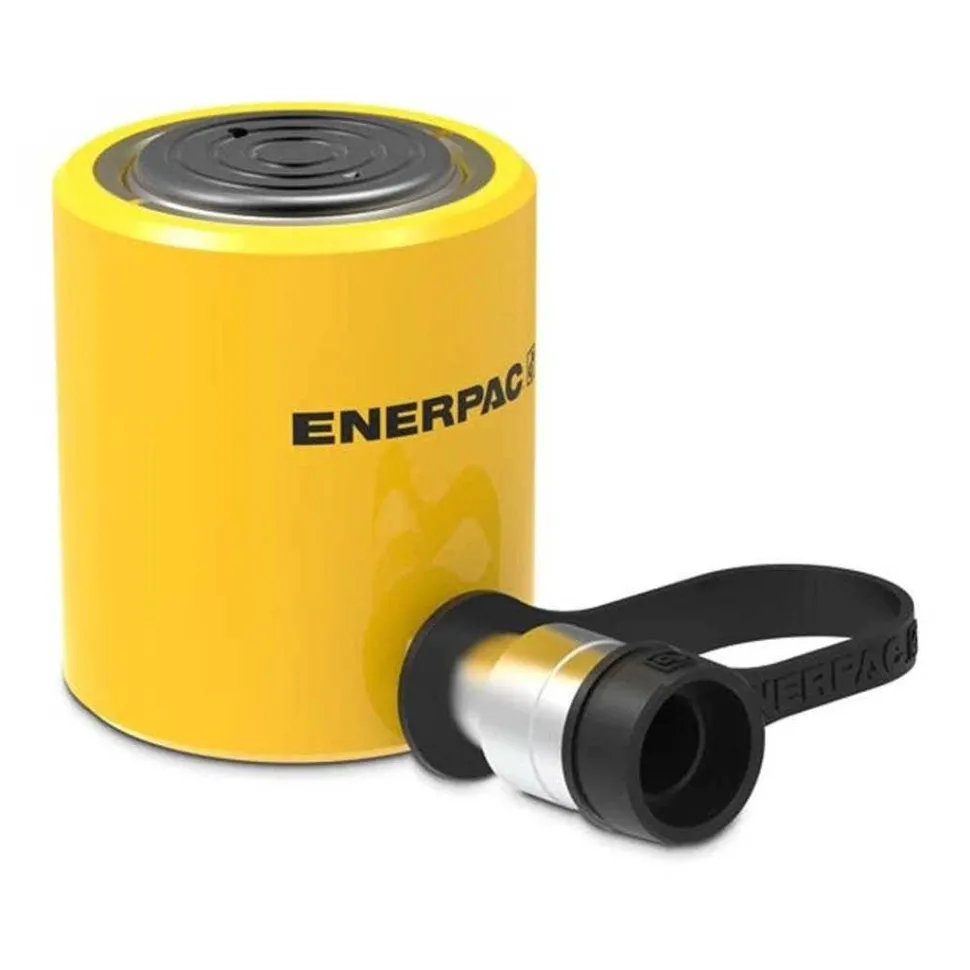

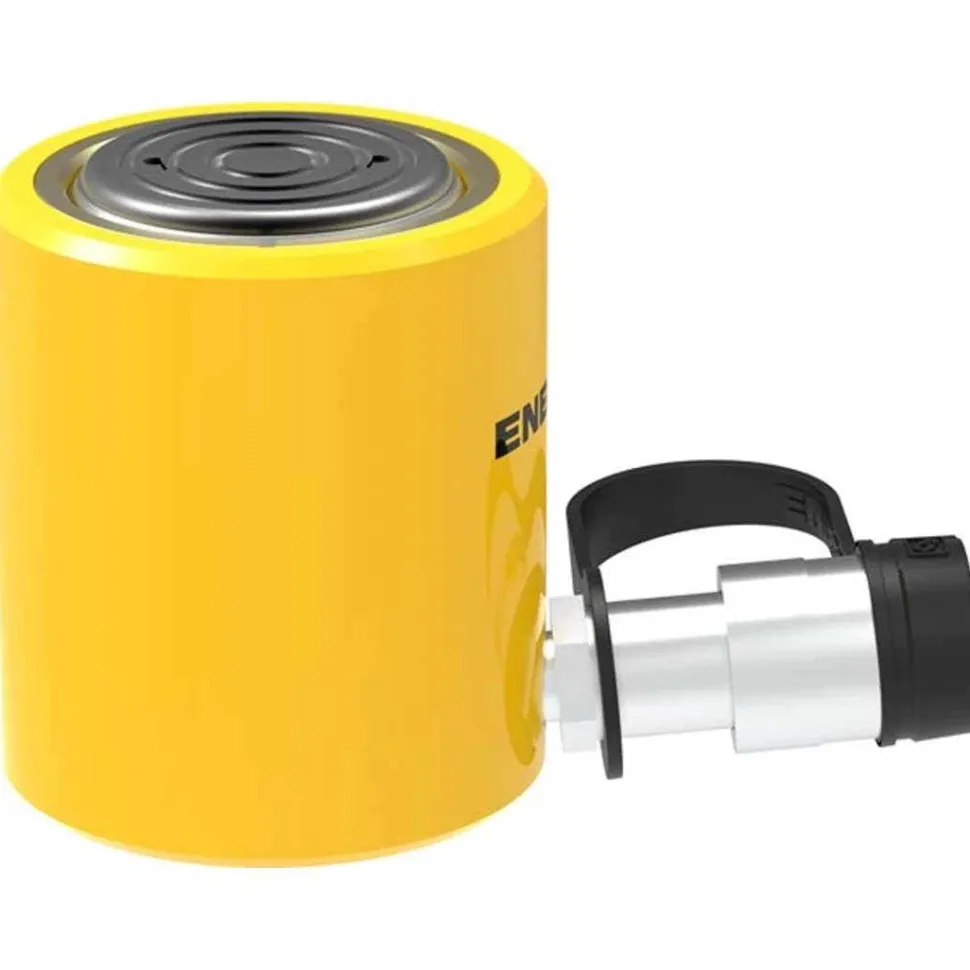

Enerpac 324 ton Capacity, 2.44 in Stroke, Low Height Hydraulic Cylinder RCS302
$120.89
Enerpac
32.4 ton Capacity, 2.44 in Stroke, Low Height Hydraulic Cylinder RCS302
RCS-Series Low Profile Hydraulic Cylinders feature a short-collapsed height, which is ideal for applications with limited space. These Low Profile Jacks are commonly used to lift or jack a load.
FEATURES:
- Lightweight, low profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- Grooved plunger end with threaded holes for mounting tilt saddles
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Maximum Cylinder Capacity Advance (short tons) | 32.4 |
| Stroke (in) | 2.44 |
| Return Type | Single-Acting, Spring Return |
INCLUDES:
(1) Hydraulic Cylinder
| Shipping Weight | 14.9 lbs |
|---|---|
| Outside Diameter D | 4 in | 101 mm |
| News Feed Product Group | Cylinders and Jacks |
| Saddle Diameter J1 | 50 mm |
| Maximum Cylinder Capacity Advance | 32.4 Imperial Tons | 295 kN |
| Collapsed Height A Ranges | 0 – 4.99 in | 0 – 127 mm |
| Base Mounting Holes Bolt Circle U | 1.57 in | 40 mm |
| Saddle Protrusion From Plunger K | 3 mm |
| Baseto Advance Port H | 0.75 in | 19 mm |
| Cylinder Class | 30 Imperial Tons |
| Optional Tilt Saddle Addition To Collapsed Height A 1 | 1.02 in | 26 mm |
| Plunger internal Threadin O | M5 in |
| Oil Capacity Advance | 15.82 in³ | 261 cm³ |
| Plunger Diameter F | 2.62 in | 66,5 mm |
| Cylinder Effective Area Advance | 6.49 in² | 42,1 cm² |
| Saddle Protrusionfrom Plunger K | 0.13 in |
| Cylinder Material | Steel |
| Country of Origin | China |
| Plunger Thread Length P | 0.32 in | 8 mm |
| Saddle Maximum Tilt Angle Radius Degrees | 5 |
| Maximum Operating Pressure Ranges psi | 10000 |
| Sub Types | Low Height Cylinder |
| Saddle Protrusionfrom Plunger K1 | 3 mm |
| Type | Hydraulic Cylinders |
| Surface Treatment | Paint |
| Collapsed Height A | 4.63 in | 117 mm |
| Extended Height B | 7.06 in | 179 mm |
| Plunger Type | Solid |
| Upsell item | SCL302TB,CUSP30 |
| Stroke Ranges | 2.0 – 2.99 in | 48 – 94 mm |
| Return Type | Single-Acting, Spring Return |
| Product Line | Industrial Tools |
| Plunger internal Thread O | M5 in |
| Saddle Diameter J | 1.97 in | 50 mm |
| Weight | 15 lbs | 6,8 kgs |
| Cylinder Bore Diameter E | 2.88 in | 73,2 mm |
| OPT SKU | ENP-RCS302 |
|---|---|
| MPN | RCS302 |
| UPC/GTIN | 662005302123 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 2″ |
| Tonnage | 30-Ton |
| Shipping Weight | 15.00 |
