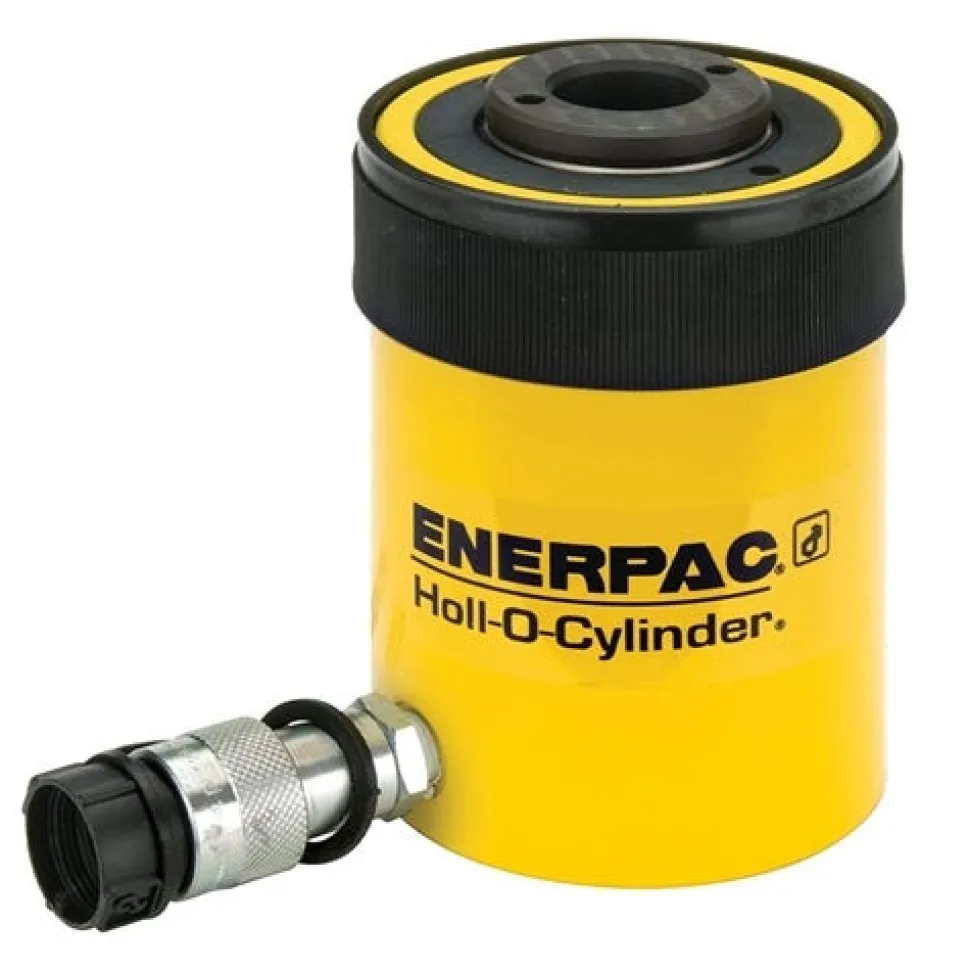

Enerpac 36.1 ton Capacity, 2.50 in Stroke, Hollow Plunger Single-Acting Hydraulic Cylinder RCH302
$138.99
Enerpac
36.1 ton Capacity, 2.50 in Stroke, Hollow Plunger Single-Acting Hydraulic Cylinder RCH302
RCH-Series Single-Acting, Hollow Plunger Hydraulic Cylinders feature a hollow bore to apply both pull and push forces. A threaded steel rod can be run through the hollow bore of the cylinder and attached to a load to either push or pull the load, or to apply tension.
FEATURES:
- Hollow plunger design allows for both pull and push forces
- Single-acting spring return
- Nickel-plated, floating center tube on models over 20 tons increases product life
- Baked enamel finish for increased corrosion resistance
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Stroke (in) | 2.5 |
| Maximum Cylinder Capacity Advance (short tons) | 36.1 |
INCLUDES:
(1) Hydraulic Cylinder
| Collapsed Height A Ranges | 5.0 – 9.99 in | 128 – 254 mm |
|---|---|
| Plunger Type | Hollow |
| Plunger internal Thread O | 1 13/16″ – 16 un in |
| Oil Capacity Advance | 18.05 in³ | 298 cm³ |
| Maximum Operating Pressure Ranges psi | 10000 |
| Base Mounting Holes Bolt Circle U | 3.63 in | 92,2 mm |
| Weight | 24 lbs | 10,9 kgs |
| Sub Types | Hollow Plunger Cylinder |
| Stroke Ranges | 2.0 – 2.99 in | 48 – 94 mm |
| Plunger Diameter F | 2.5 in | 63,5 mm |
| Outside Diameter D | 4.5 in | 114 mm |
| Saddle Protrusion From Plunger K | 9,0 mm |
| Baseto Advance Port H | 0.85 in | 21 mm |
| Plunger Thread Length P | 0.88 in | 22 mm |
| Return Type | Single-Acting, Spring Return |
| Country of Origin | China |
| Type | Hydraulic Cylinders |
| Extended Height B | 9.53 in | 242 mm |
| Plunger internal Threadin O | 1 13/16″ – 16 un in |
| Shipping Weight | 23.5 lbs |
| Center Hole Diameter Y | 1.31 in | 33,3 mm |
| News Feed Product Group | Cylinders and Jacks |
| Cylinder Material | Steel |
| Collapsed Height A | 7.03 in | 178 mm |
| Saddle Diameter J | 2.5 in | 63 mm |
| Saddle Protrusionfrom Plunger K | 0.38 in |
| Collar Thread Length X | 1.66 in | 42 mm |
| Maximum Cylinder Capacity Advance | 36.1 Imperial Tons | 326 kN |
| Product Line | Industrial Tools |
| Cylinder Class | 30 Imperial Tons |
| Base Mounting Holes Thread Depth Z | 0.55 in | 14,0 mm |
| Base Mounting Holes Thread V | 3/8″-16 unc | 3/8″-16 unc in |
| Upsell item | RACH302 |
| Surface Treatment | Paint |
| Saddle Diameter J1 | 63 mm |
| Collar Thread W | 4 1/2″ – 12 in | 4 1/2″ – 12 mm |
| Cylinder Effective Area Advance | 7.22 in² | 46,6 cm² |
| Cylinder Bore Diameter E | 3.5 in | 88,9 mm |
| Bundle Product Ids | CR400 |
| Saddle Protrusionfrom Plunger K1 | 9,0 mm |
| OPT SKU | ENP-RCH302 |
|---|---|
| MPN | RCH302 |
| UPC/GTIN | 662005302758 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 2″ |
| Tonnage | 30-Ton |
| Shipping Weight | 24.00 |
