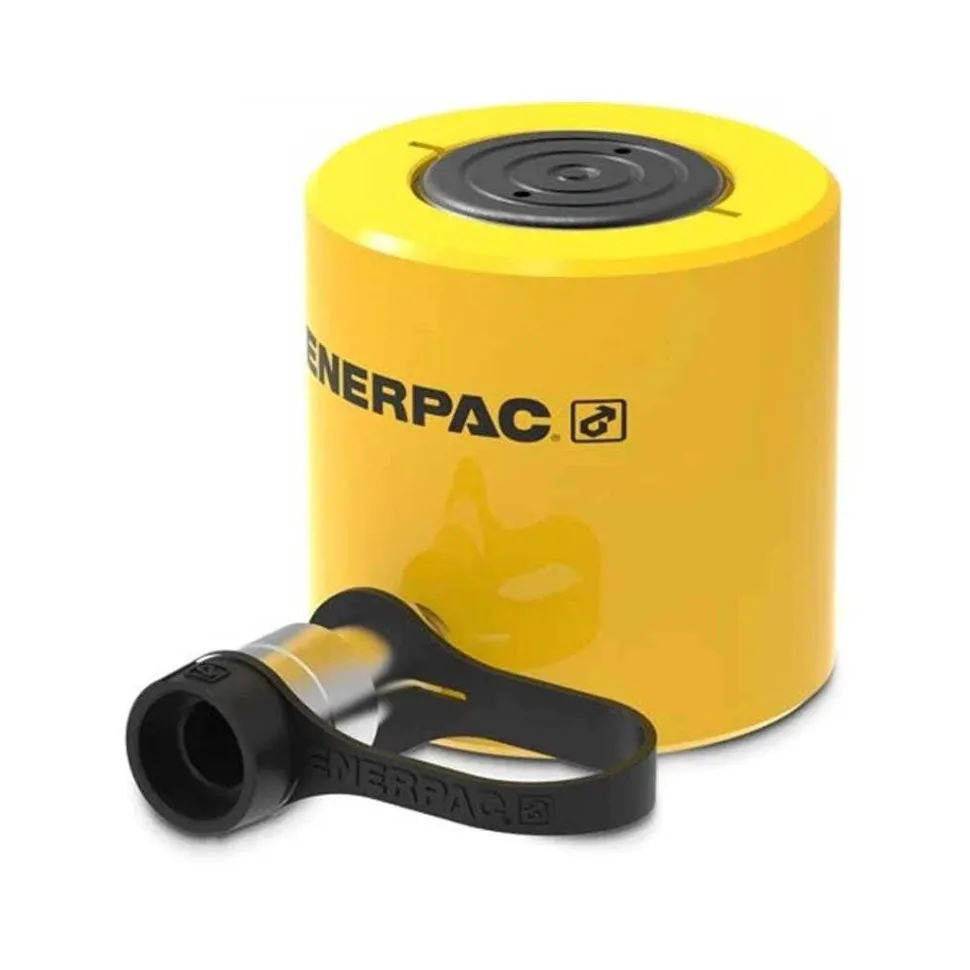

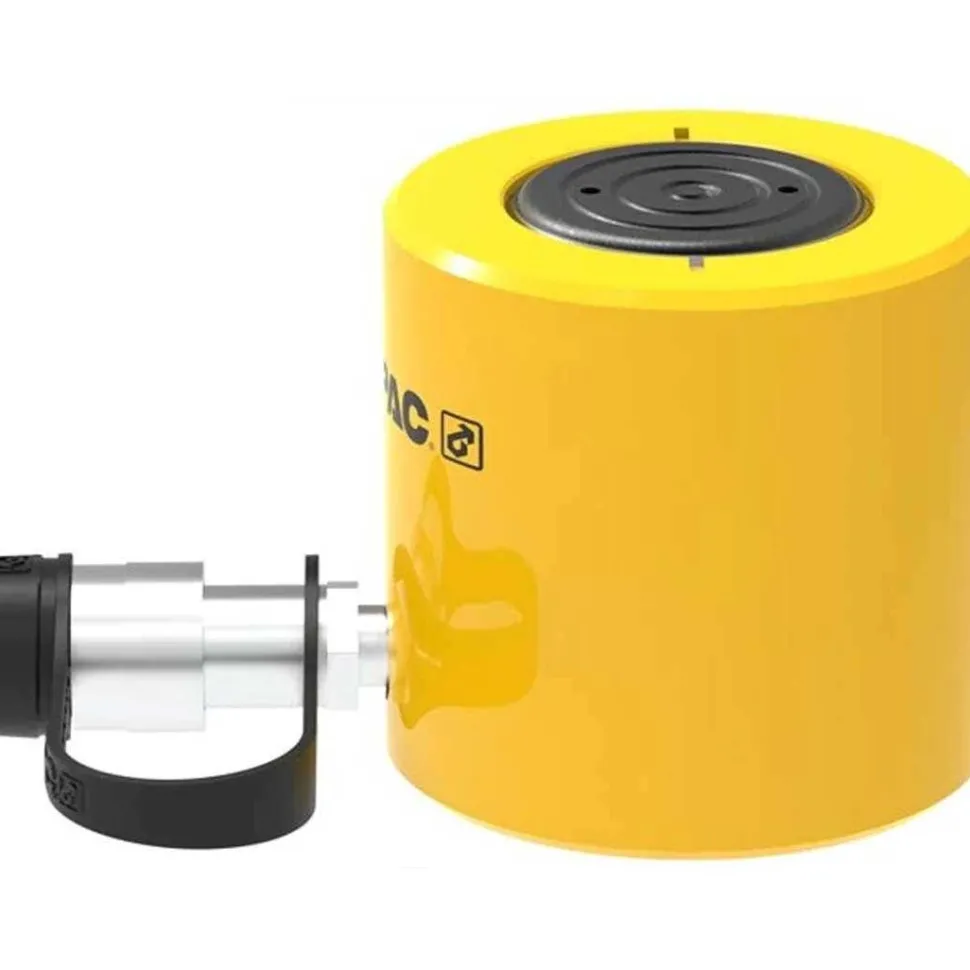

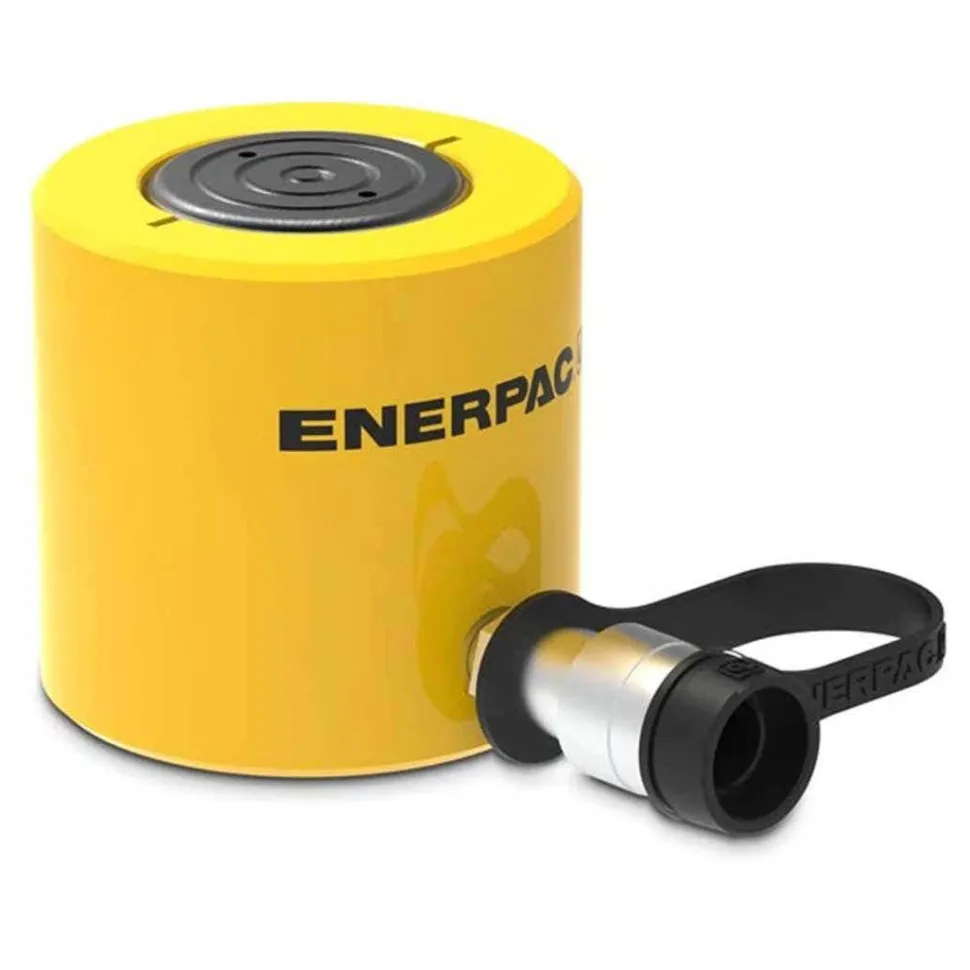

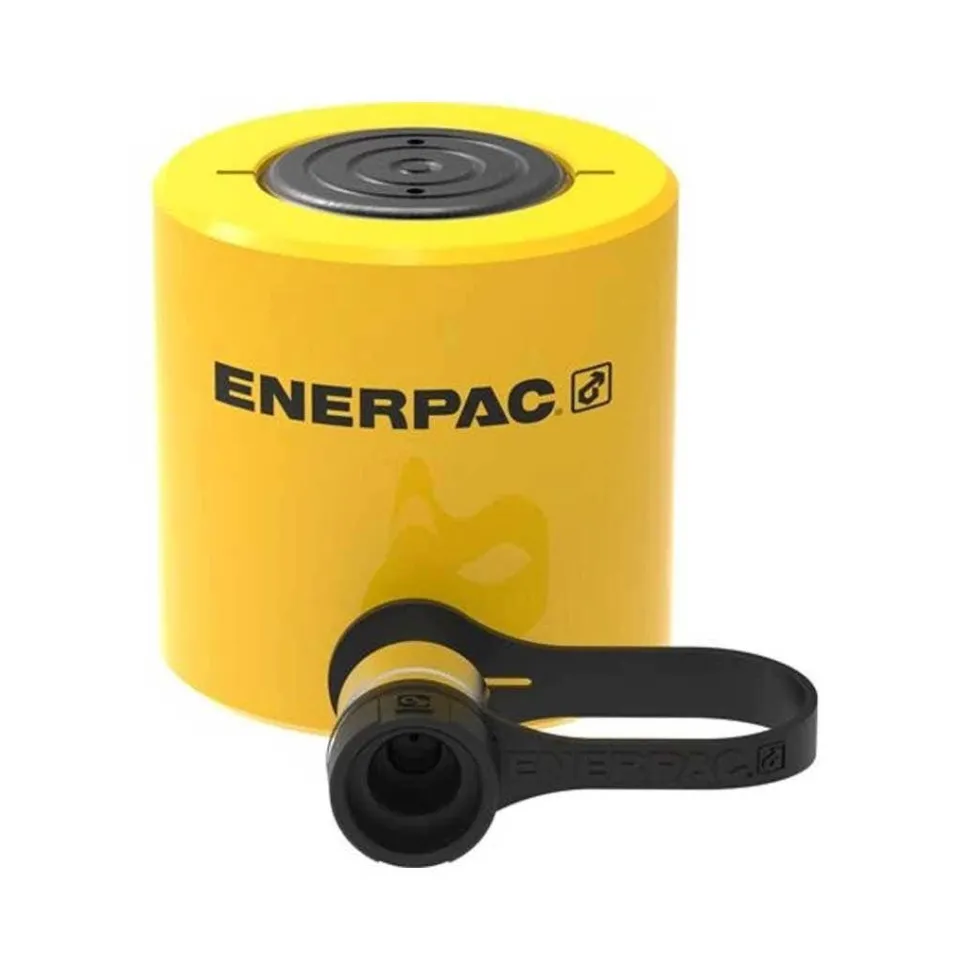

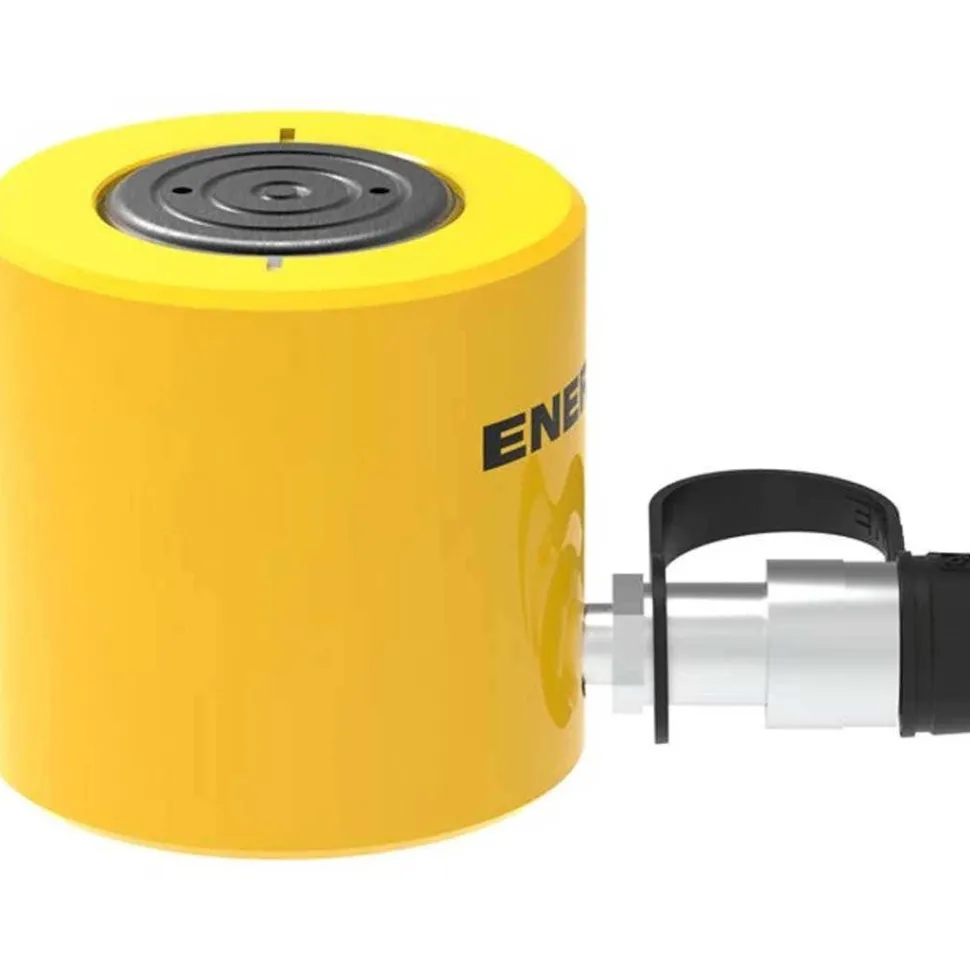

Enerpac 481 ton Capacity, 2.38 in Stroke, Low Height Hydraulic Cylinder RCS502
Original price was: $1,571.00.$128.89Current price is: $128.89.
Enerpac
48.1 ton Capacity, 2.38 in Stroke, Low Height Hydraulic Cylinder RCS502
RCS-Series Low Profile Hydraulic Cylinders feature a short-collapsed height, which is ideal for applications with limited space. These Low Profile Jacks are commonly used to lift or jack a load.
FEATURES:
- Lightweight, low profile design for use in confined spaces
- Plunger wiper reduces contamination, extending cylinder life
- Grooved plunger end with threaded holes for mounting tilt saddles
- Baked enamel finish for increased corrosion resistance
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Stroke (in) | 2.38 |
| Maximum Cylinder Capacity Advance (short tons) | 48.1 |
INCLUDES:
(1) Hydraulic Cylinder
| Maximum Cylinder Capacity Advance | 48.1 Imperial Tons | 435 kN |
|---|---|
| Upsell item | SCL502TB,CUSP50 |
| Product Line | Industrial Tools |
| Type | Hydraulic Cylinders |
| Base Mounting Holes Bolt Circle U | 1.57 in | 40 mm |
| Stroke Ranges | 2.0 – 2.99 in | 48 – 94 mm |
| Collapsed Height A Ranges | 0 – 4.99 in | 0 – 127 mm |
| Plunger Type | Solid |
| Plunger Thread Length P | 0.32 in | 8 mm |
| Extended Height B | 7.19 in | 182 mm |
| Saddle Diameter J | 1.97 in | 50 mm |
| Baseto Advance Port H | 0.94 in | 23 mm |
| Plunger internal Threadin O | M5 in |
| Cylinder Material | Steel |
| Collapsed Height A | 4.81 in | 122 mm |
| Saddle Protrusionfrom Plunger K1 | 2 mm |
| Maximum Operating Pressure Ranges psi | 10000 |
| Oil Capacity Advance | 22.85 in³ | 373 cm³ |
| Cylinder Class | 50 Imperial Tons |
| Cylinder Bore Diameter E | 3.5 in | 88,9 mm |
| Outside Diameter D | 4.88 in | 124 mm |
| Saddle Protrusion From Plunger K | 2 mm |
| Return Type | Single-Acting, Spring Return |
| Cylinder Effective Area Advance | 9.62 in² | 62,1 cm² |
| Optional Tilt Saddle Addition To Collapsed Height A 1 | 1.02 in | 26 mm |
| Country of Origin | China |
| Weight | 22 lbs | 10,0 kgs |
| Shipping Weight | 22.1 lbs |
| Saddle Diameter J1 | 50 mm |
| Saddle Protrusionfrom Plunger K | 0.08 in |
| Plunger internal Thread O | M5 in |
| Surface Treatment | Paint |
| News Feed Product Group | Cylinders and Jacks |
| Sub Types | Low Height Cylinder |
| Plunger Diameter F | 2.75 in | 69,8 mm |
| Saddle Maximum Tilt Angle Radius Degrees | 5 |
| OPT SKU | ENP-RCS502 |
|---|---|
| MPN | RCS502 |
| UPC/GTIN | 662005302147 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 2″ |
| Tonnage | 50-Ton |
| Shipping Weight | 22.00 |
