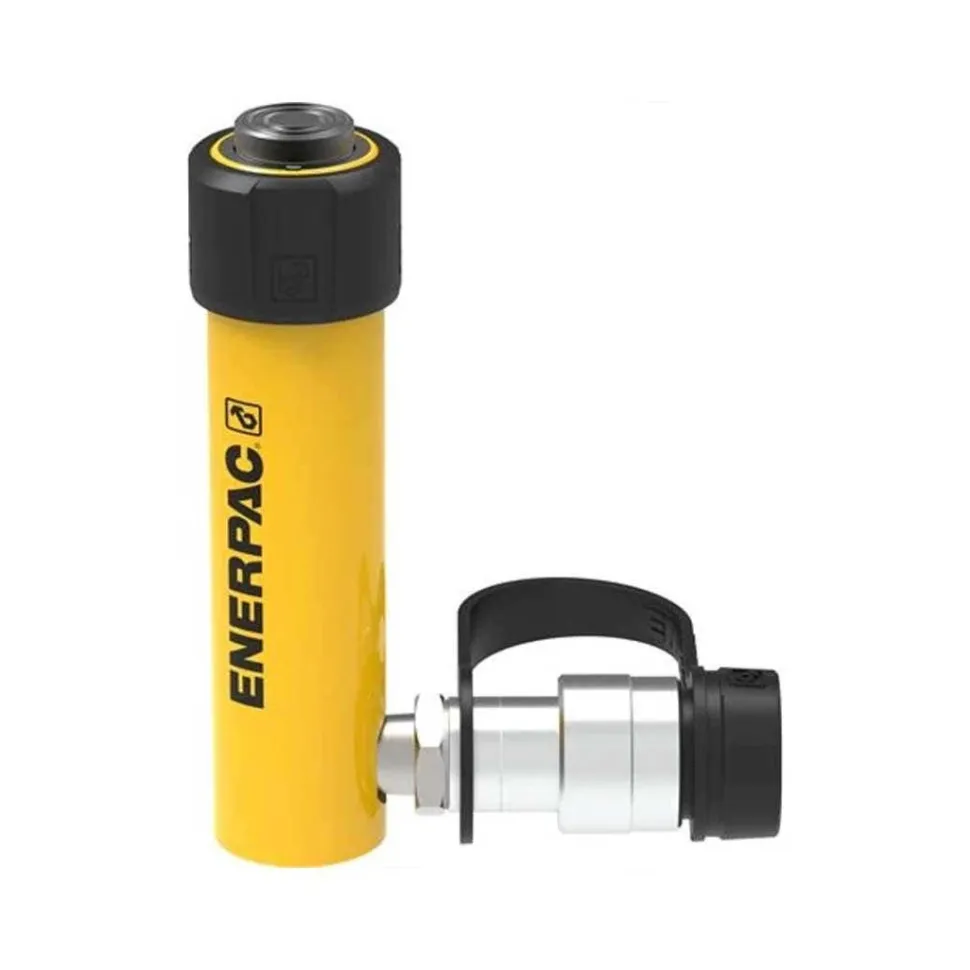

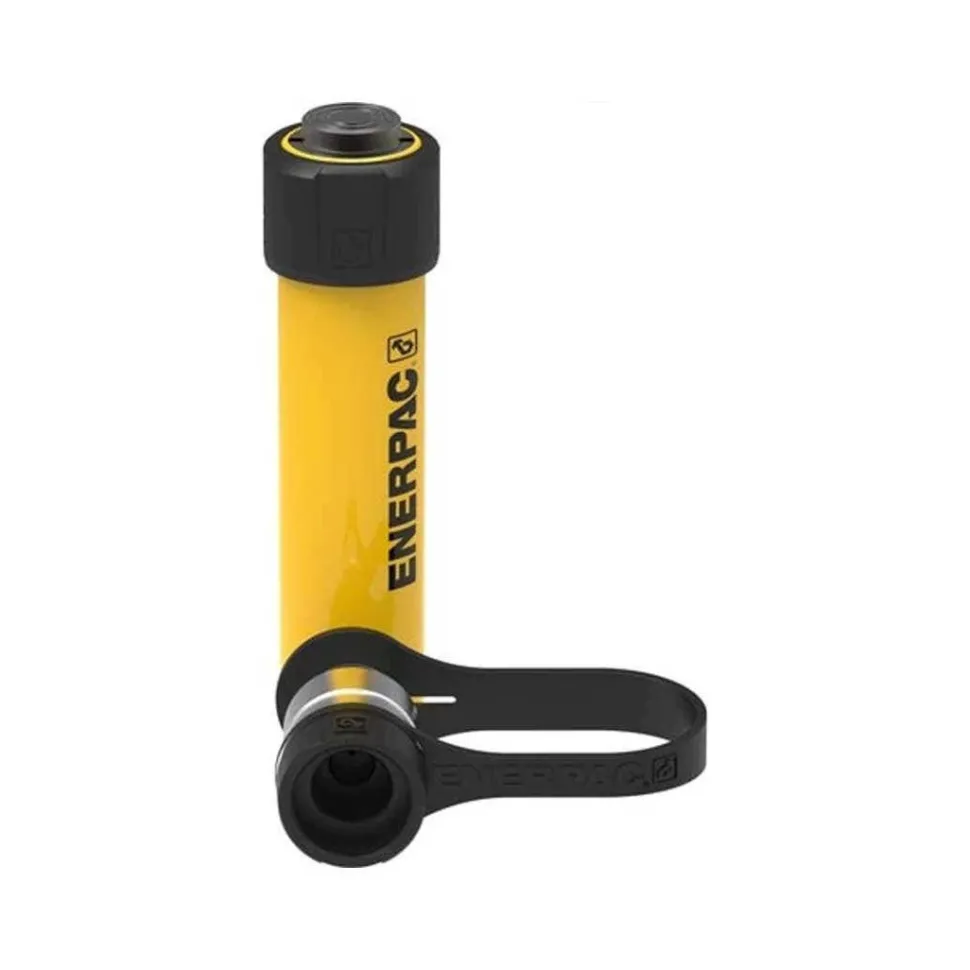

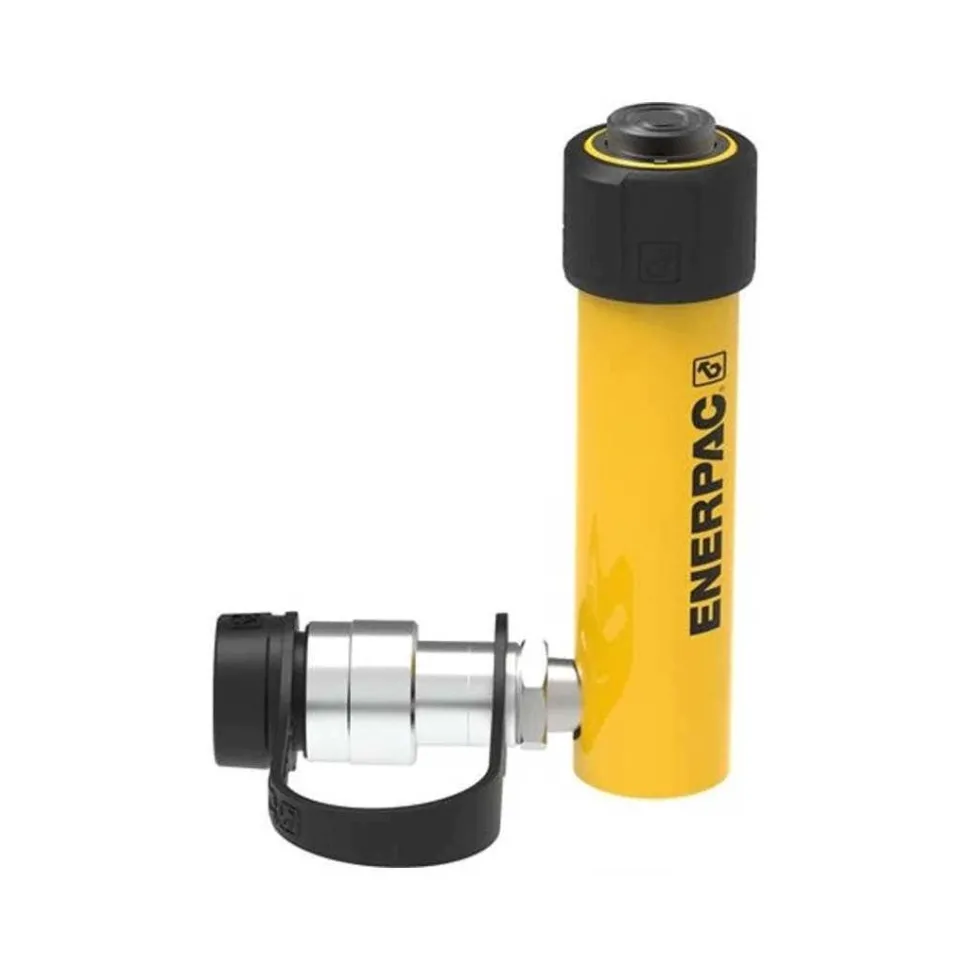

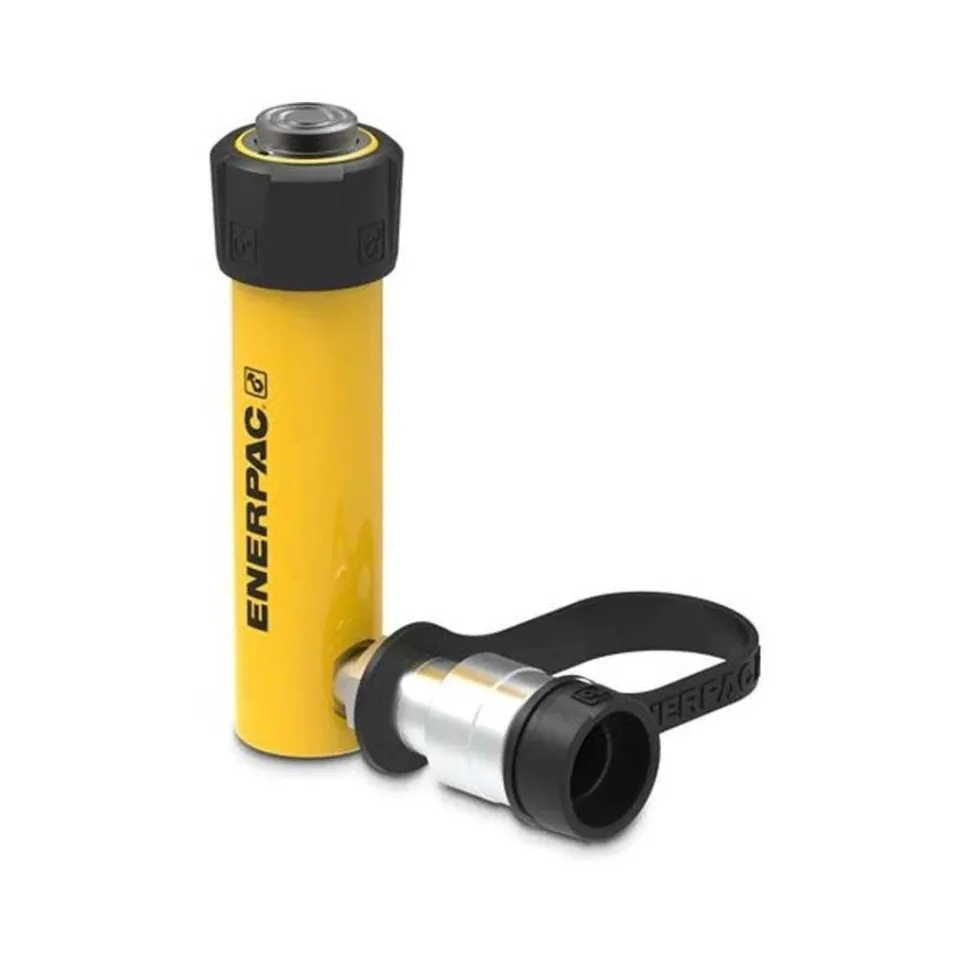

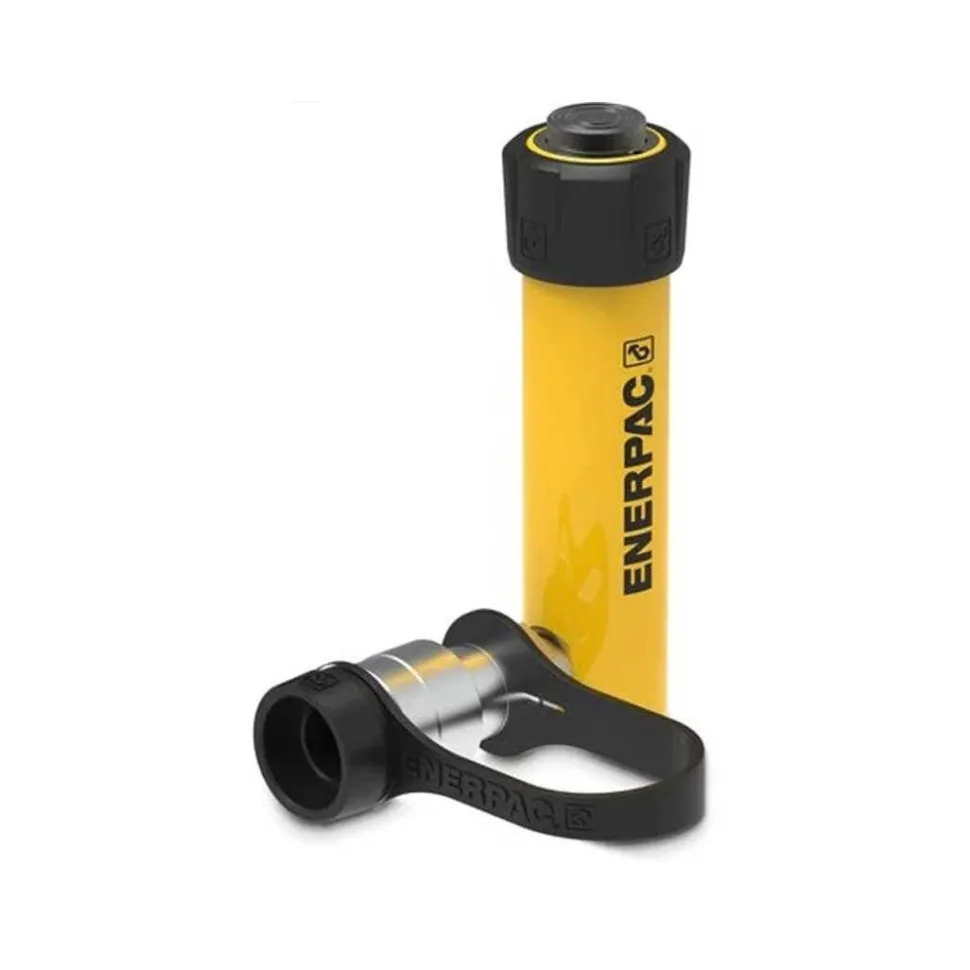

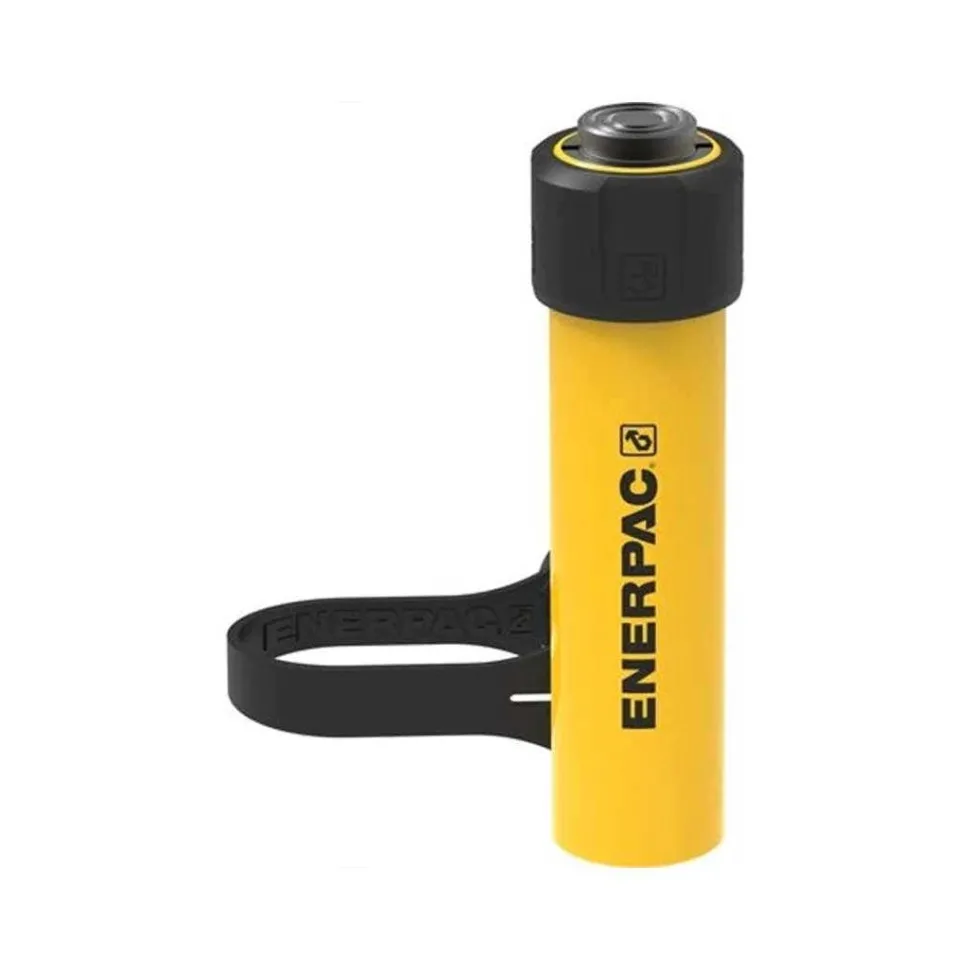

Enerpac 49 ton Capacity, 3.11 in Stroke, General Purpose Hydraulic Cylinder RC53
$140.89
Enerpac
4.9 ton Capacity, 3.11 in Stroke, General Purpose Hydraulic Cylinder RC53
RC-Series Hydraulic Cylinders are incredibly durable and versatile. These single acting hydraulic cylinders are suitable for a wide range of applications; lifting, pushing, or pressing.
FEATURES:
- Bearing system with composite wear bands for optimal sideload resistance
- Strengthened stop ring improves durability and side load resistance
- Trio Hybrid pre-tensioned spring system provides faster retraction
- High-grade polyethylene seals for low wear and long service life
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Maximum Cylinder Capacity Advance (short tons) | 4.9 |
| Stroke (in) | 3.11 |
INCLUDES:
(1) Hydraulic Cylinder
| Plunger internal Threadin O | 3/4″ – 16 in |
|---|---|
| Surface Treatment | Paint |
| Saddle Diameter J | 1 in | 25 mm |
| Plunger internal Thread O | 3/4″ – 16 in |
| Shipping Weight | 3.55 lbs |
| Product Line | Industrial Tools |
| Collar Thread W | 1 1/2″ – 16 UN in | 1 1/2″ – 16 un mm |
| Sub Types | General Purpose Cylinder |
| Return Type | Single-Acting, Spring Return |
| Base Mounting Holes Thread V | 1/4″- 20 un | 1/4″ – 20un in |
| Stroke Ranges | 3.0 – 4.49 in | 48 – 94 mm |
| Outside Diameter D | 1.5 in | 38 mm |
| Oil Capacity Advance | 2.98 in³ | 50 cm³ |
| Baseto Advance Port H | 0.75 in | 19 mm |
| Collar Thread Length X | 1.13 in | 28 mm |
| Type | Hydraulic Cylinders |
| Extended Height B | 9.5 in | 244 mm |
| Plunger Diameter F | 1 in | 25,4 mm |
| Collapsed Height A Ranges | 5.0 – 9.99 in | 128 – 254 mm |
| Base Mounting Holes Bolt Circle U | 1 in | 25 mm |
| Saddle Protrusionfrom Plunger K | 0.25 in |
| Maximum Cylinder Capacity Advance | 4.9 Imperial Tons | 45 kN |
| Country of Origin | China |
| Maximum Operating Pressure Ranges psi | 10000 |
| Cylinder Material | Steel |
| Cylinder Effective Area Advance | 0.99 in² | 6,4 cm² |
| Weight | 3.3 lbs | 1,5 kgs |
| Plunger Thread Length P | 0.56 in | 14 mm |
| Collapsed Height A | 6.5 in | 165 mm |
| Cylinder Bore Diameter E | 1.13 in | 28,6 mm |
| Saddle Protrusionfrom Plunger K1 | 6 mm |
| Plunger Type | Solid |
| Upsell item | RR506 |
| Cylinder Class | 5 Imperial Tons |
| Base Mounting Holes Thread Depth Z | 0.56 in | 14 mm |
| News Feed Product Group | Cylinders and Jacks |
| Saddle Diameter J1 | 25 mm |
| Saddle Protrusion From Plunger K | 6 mm |
| OPT SKU | ENP-RC53 |
|---|---|
| MPN | RC53 |
| UPC/GTIN | 662005300587 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 3″ |
| Tonnage | 5-Ton |
| Shipping Weight | 4.00 |
