Enerpac

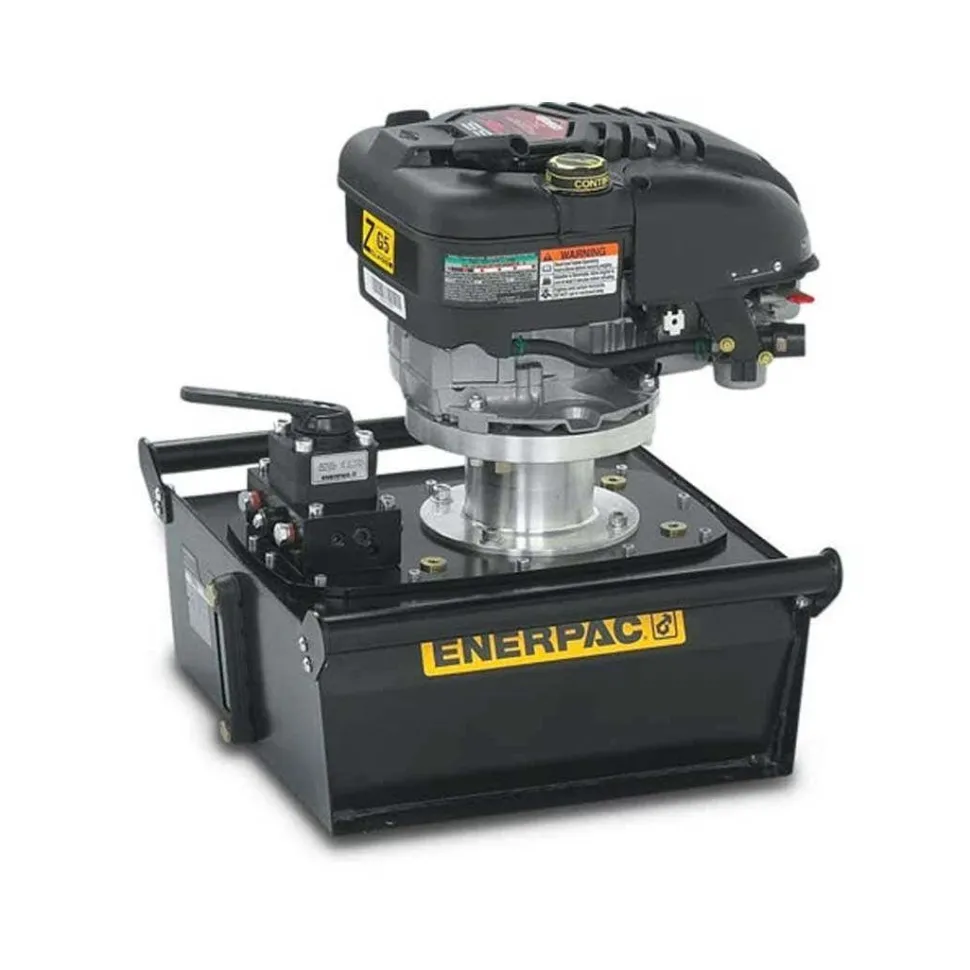

5.0 gallon Usable Oil, 4/3 Manual Valve Two Speed Gas Hydraulic Pump ZG5420MX-BR
FEATURES:
- Features Z-Class high efficency pump design, higher oil flow and bypass pressure
- Two-speed operation and high by-pass pressure reduces cycle time for improved productivity
- Full sight oil level glass on all reservoirs allow quick and easy oil level monitoring
- Sturdy wheeled cart for ZG6 allows transport over uneven terrain and features collapsible handles for easy storage
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Cylinder Compatability | Double-acting |
| Valve Type | 4-way, 3-position, Tandem Center |
| Maximum Flow at Rated Pressure | 100 in3/min |
INCLUDES:
(1) Hydraulic Pump
| Dimension E | 500 Mm |
|---|---|
| Dimension B | 180 Mm |
| Valve Function | Advance / Hold / Retract |
| Dimension H | 625 Mm |
| Type | Hydraulic Pump |
| Usable Oil Capacity | 20 Litres |
| Relief Valve Adjustment Range Psi | 1,000 – 10,000 |
| Output Flow Rate 700 bar | 1,6 in³/min | 1,6 L/min |
| Dimension C | 414 Mm |
| News Feed Product Group | Pumps |
| Output Flow Rate 100 psi | 400 in³/min |
| Output Flow Rate 700 Psi | 380 in³/min |
| Valve Model | VM43 |
| Shipping Weight | 160 lbs |
| Output Flow Rate 1 bar l min | 6,6 |
| Country of Origin | United States |
| Maximum Operating Pressure Ranges Psi | 10000 |
| Sound Leveld Ba | 91 – 95 |
| Motor Manufacturer | Briggs & Stratton |
| Maximum Operating Pressure Ranges Bar | 700 |
| Cylinder Compatability | Double-acting |
| Output Flow Rate 10000 Psi | 100 in³/min |
| Weight | 138.4 lbs | 63 kgs |
| Maximum Flow At Rated Pressure metric | 1,6 l/min |
| Pump Control | Manual |
| Dimension D | 421 Mm |
| Usable Oilcapacity | 5 Gal |
| Motor Size | 8.5 ft lbs |
| Valve Operation | Manual |
| Maximum Flow Rate Rangesat Rated Pressure | 60 – 119 in³/min | 0,98 – 1,95 L/min |
| Maximum Flow At Rated Pressure liter | 1.6 |
| Output Flow Rate 350 bar | 1,8 in³/min | 1,8 L/min |
| Pump Power Source | Gasoline |
| Pump Valve Type | 4-way, 3-position, Tandem Center |
| Reservoir Capacity | 20000 cm³ | 1155 in³ |
| Relief Valve Adjustment Range bar | 70-700 |
| Output Flow Rate 50 bar | 6,2 in³/min | 6,2 L/min |
| Maximum Flow At Rated Pressure | 100 in³ |
| Output Flow Rate 5000 Psi | 110 in³/min |
| Maximum Flowat Rated Pressure | 100 in3/min |
| Maximum Flow At Rated Pressure imperial | 100 in3/min |
| Sub Types | Gas Pump – High Flow |
| Product Line | Industrial Tools |
| Output Flow Rate 7 bar | 6,5 in³/min | 6,5 L/min |
| OPT SKU | ENP-ZG5420MX-BR |
|---|---|
| MPN | ZG5420MX-BR |
| UPC/GTIN | 662005135240 |
| Product Type | Gas Hydraulic Pump |
| Google Category | Hardware > Hardware Pumps |
| Power Method | Gas |
| Shipping Weight | 139.00 |
