Enerpac 5 Ton Hydraulic Cylinder & Hand Pump Set w/ 35 Cylinder Attachments MS210

Enerpac

5 Ton Hydraulic Cylinder & Hand Pump Set w/ 35 Cylinder Attachments MS210

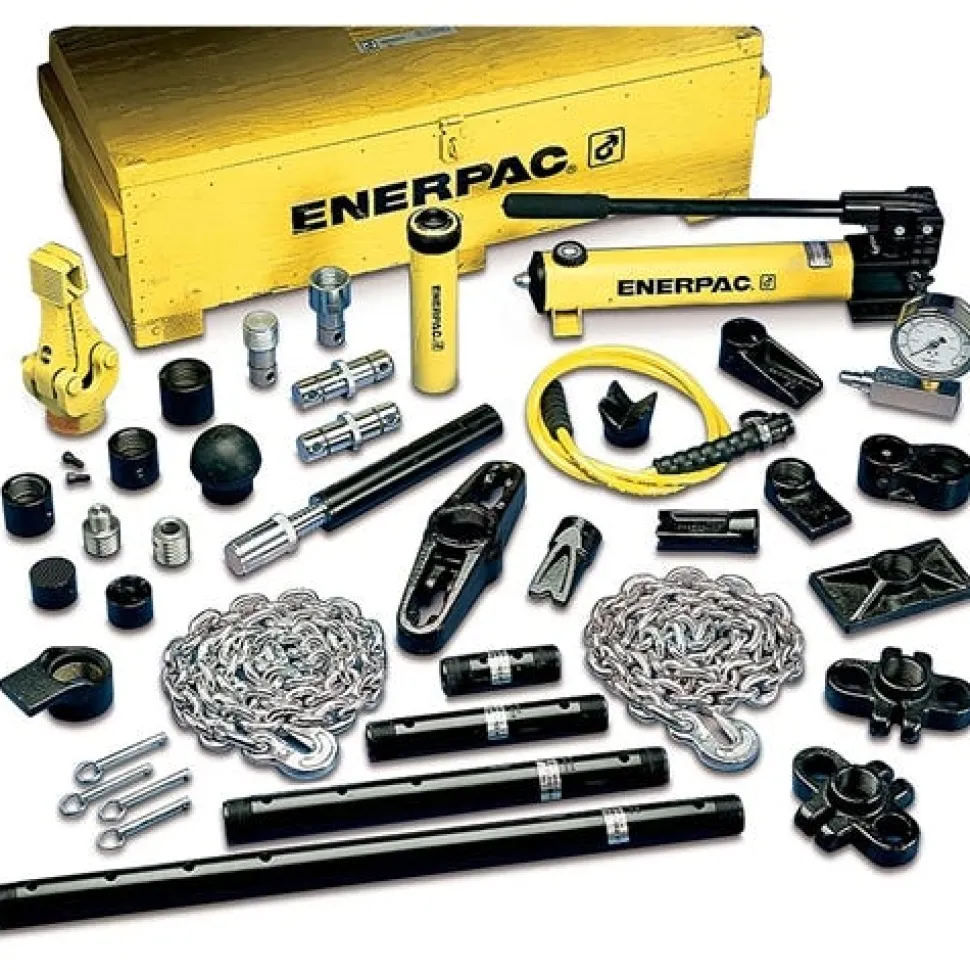

The Enerpac MS210 5-ton hydraulic maintenance set consists of hydraulic tools and accessories for pushing; pulling; lifting; pressing; straightening; spreading; and clamping in construction; manufacturing; and maintenance and repair applications. The set has a maximum capacity of 5 tons; and includes a two-speed hydraulic hand pump that can advance and release a single-acting cylinder or power a hydraulic tool; but cannot hold a load. It also comes with a single-acting spring return hydraulic cylinder for applying force to a load. The set comes with a range of accessories and components and a wooden tool box with a latch on the lid for organizing; transporting; and storing the tools and accessories.

FEATURES:

• Using these sets allows you to quickly configure a unique tool to meet your most difficult jobs.
• Lock-on or threaded connectors.
• Complete set for almost every maintenance application.
• When cylinders are used with maintenance set attach ments or components; the maximum system pressure must be limited to half the rated pressure (5;000 psi).
• If no attachments are being used; capacity is double these values. Maximum operating pressure is 10;000 psi.
• Only use attachments provided with set. Non-Enerpac attachments and longer extension tubes will reduce column strength; potentially creating unsafe conditions.

SPECIFICATIONS:

Maximum Operating Pressure (psi)	5;000
Stroke (in)	6.13
Collapsed Height (in)	9.75
Number of Attachment Components	35

INCLUDES:

• A10 5 Ton RC Threaded Connector Cylinder Attachment
• A128 5 Ton RC Rubber Flex-Head Cylinder Attachment
• A129 5 Ton RC Wedge Head Cylinder Attachment
• A13 5 Ton RC Threaded Adaptor Cylinder Attachment
• A132 5 Ton RC Single Chain Plate Cylinder Attachment
• A14 5 Ton RC Flat Base Cylinder Attachment
• A141 5 Ton RC Chain w/ Hook Cylinder Attachment
• A15 5 Ton RC 90 Degree V-Base Cylinder Attachment
• A16 5 Ton RC Lock Pin Cylinder Attachment
• A18 5 Ton RC Serrated Saddle Cylinder Attachment
• A185 5 Ton RC Smooth Saddle Cylinder Attachment
• A19 5 Ton RC Pipe Coupling Cylinder Attachment
• A192 5 Ton RC Collar Clamp Head Cylinder Attachment
• A20 5 Ton RC Collar Toe Cylinder Attachment
• A21 5 Ton RC Base Cylinder Attachment
• A305 5 Ton RC Spreader Toe Cylinder Attachment
• A5 5 Ton RC Double Chain Plate Cylinder Attachment
• A6 5 Ton RC Threader Plunger Toe Cylinder Attachment
• A8 2.5 Ton RC Lock-on Clamp Toe Cylinder Attachment
• A92 1 Ton RC Spreader Cylinder Attachment
• CW166 Wood Storage Box
• GA2 1/2 Gauge Adaptor NPT Gauge Port 10;000 PSI
• GP10S 700 Bar Hydraulic Force & Pressure Gauge 10;000 PSI
• HC7206 6′ Thermo-Plastic High Pressure Hydraulic Hose
• MZ1050 5 Ton RC Lock-on Connector Cylinder Attachment
• MZ1051 5 Ton RC Male Lock-on Adaptor Cylinder Attachment
• P392 Two Speed Lightweight Hydraulic Hand Pump
• RC106 11.2 Ton Hydraulic 6.13″ Stroke Single-Acting General Purpose Cylinder

“
