Sale!

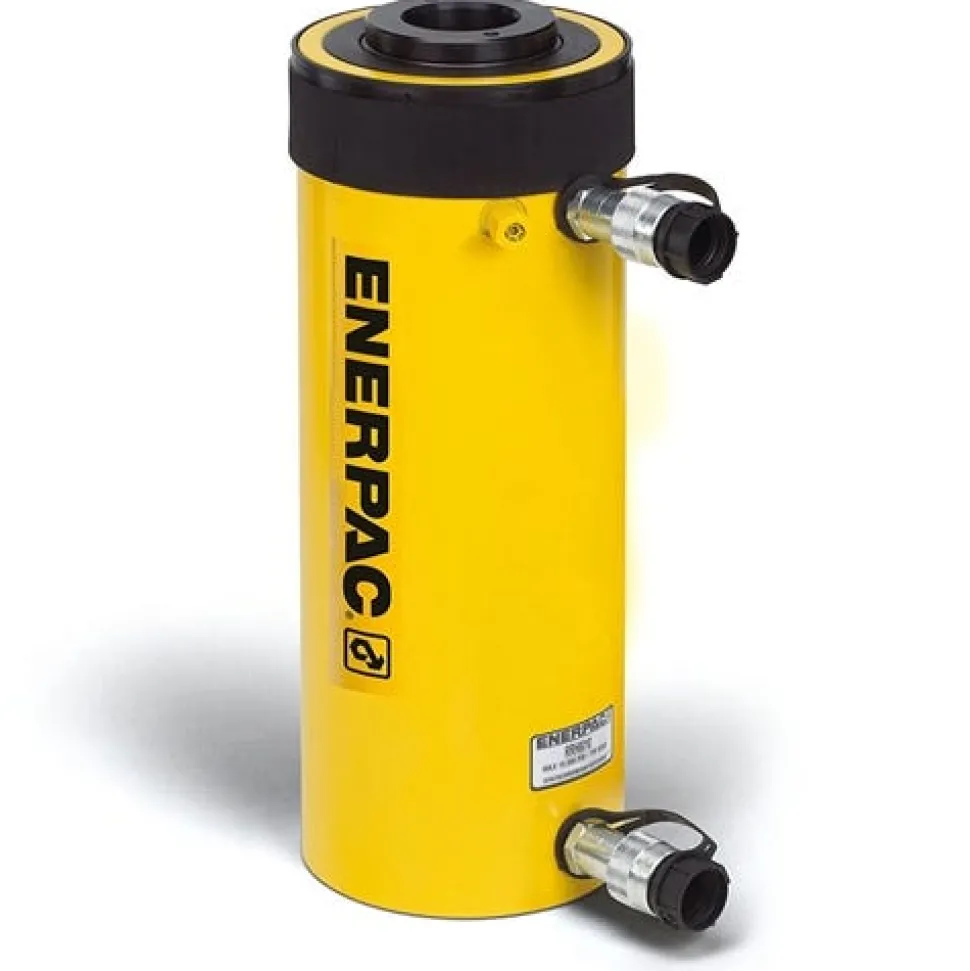

Enerpac 60 Ton Hydraulic 10.12″ Stroke Double-Acting Hollow Plunger Cylinder RRH6010
Original price was: $8,789.00.$136.89Current price is: $136.89.
Additional Details
The Enerpac RRH6010 double-acting hollow-plunger hydraulic cylinder with 60-ton capacity and 10.12″ stroke has a hollow plunger for use in applications where the need for push and pull forces might alternate. The double-acting hydraulic cylinder uses liquid pumped through two ports on opposite ends of the cylinder barrel to push out and retract the piston rod to produce continued movement.
Features
- Relief valves prevent damage in case of over-pressurization
- Baked enamel finish for increased corrosion resistance
- Collar threads enable easy fixturing
- Double-acting operation for fast retraction
- Nickel-plated floating center tube increases product life
- Hollow plunger allows for both pull and push forces
- CR-400 couplers and dust caps included on all models
- Plunger wiper reduces contamination, extending cylinder life
Manufacturer Specifications
| Max. Operating Pressure | 10,000 PSI |
|---|---|
| Cylinder Capacity – Push | 64 tons |
| Cylinder Capacity – Pull | 42 tons |
| Stroke | 10.12 in. |
| Retracted Height | 17.25 in. |
| Extended Height | 27.38 in. |
| Effective Area – Push | 12.73 sq. in. |
| Effective Area – Pull | 8.37 sq. in. |
| Oil Capacity – Push | 128.94 cu. in. |
| Oil Capacity – Pull | 84.49 cu. in. |
Specifications
| OPT SKU | ENP-RRH6010 |
|---|---|
| MPN | RRH6010 |
| UPC/GTIN | 662005302994 |
| Product Type | Cylinder Rams Double Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 10″ |
| Tonnage | 60-Ton |
| Shipping Weight | 101.00 |
Be the first to review “Enerpac 60 Ton Hydraulic 10.12″ Stroke Double-Acting Hollow Plunger Cylinder RRH6010”
