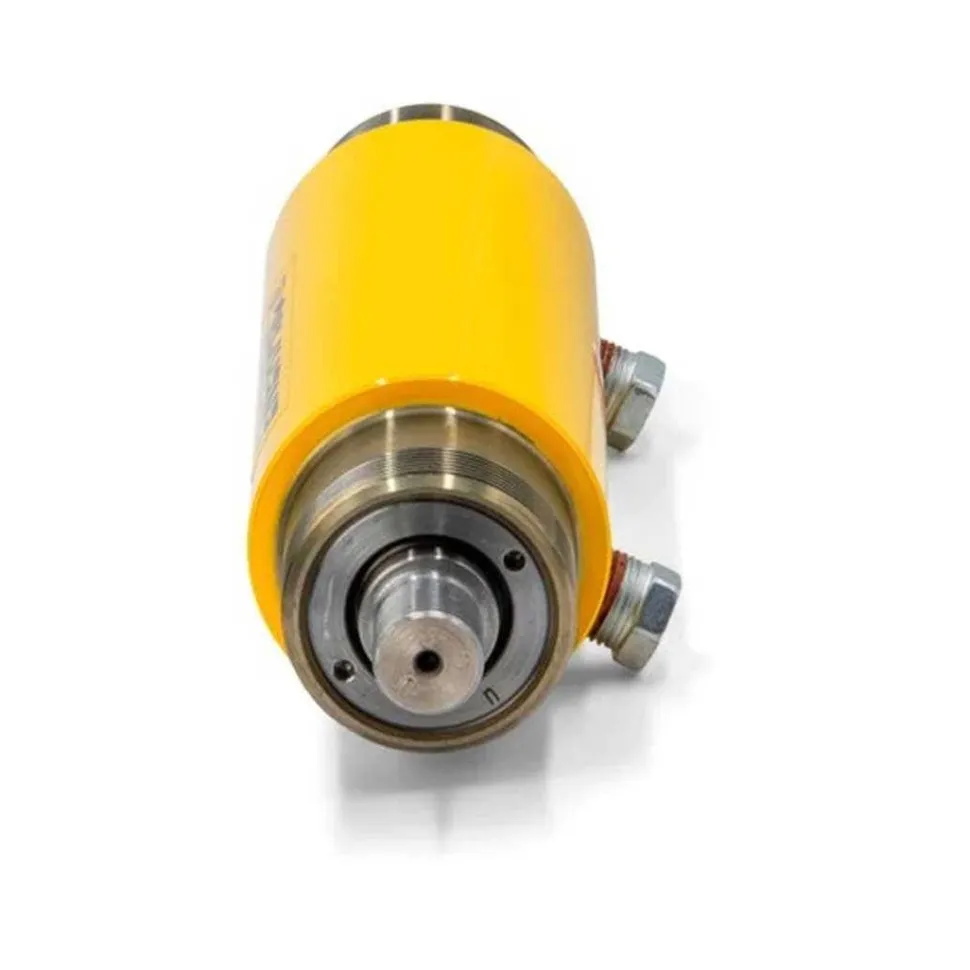

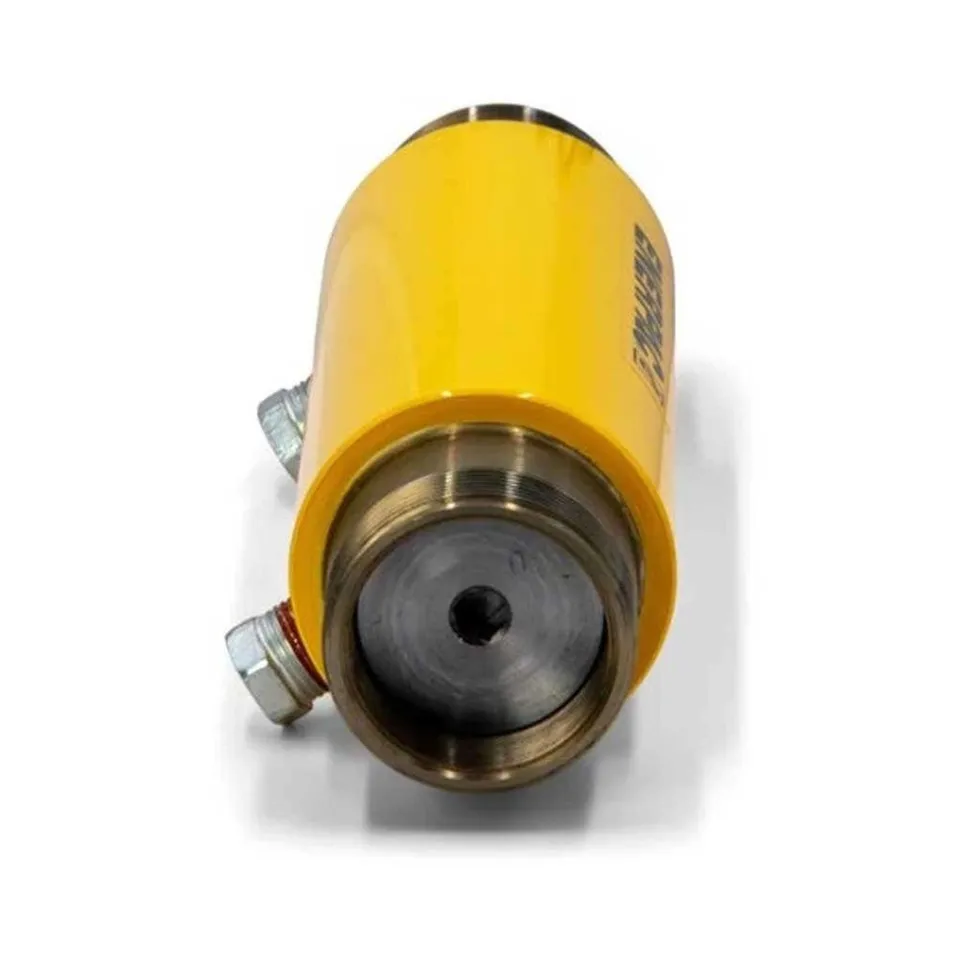

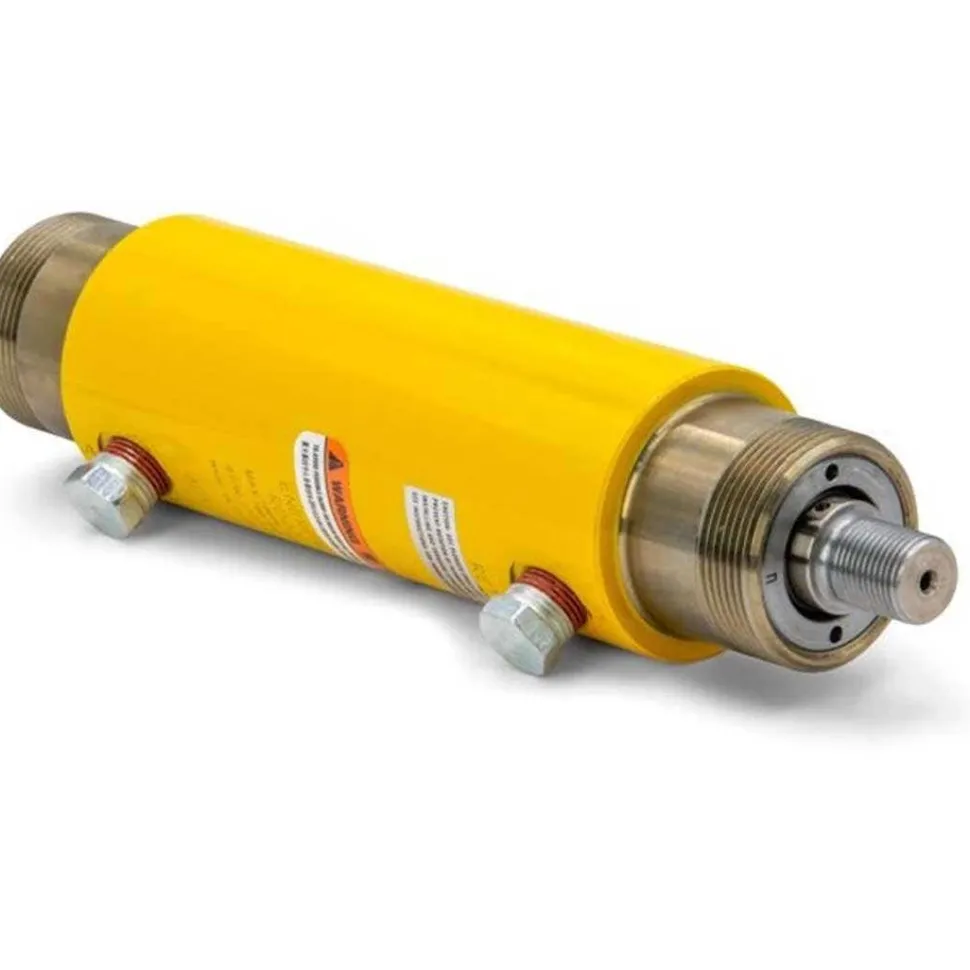

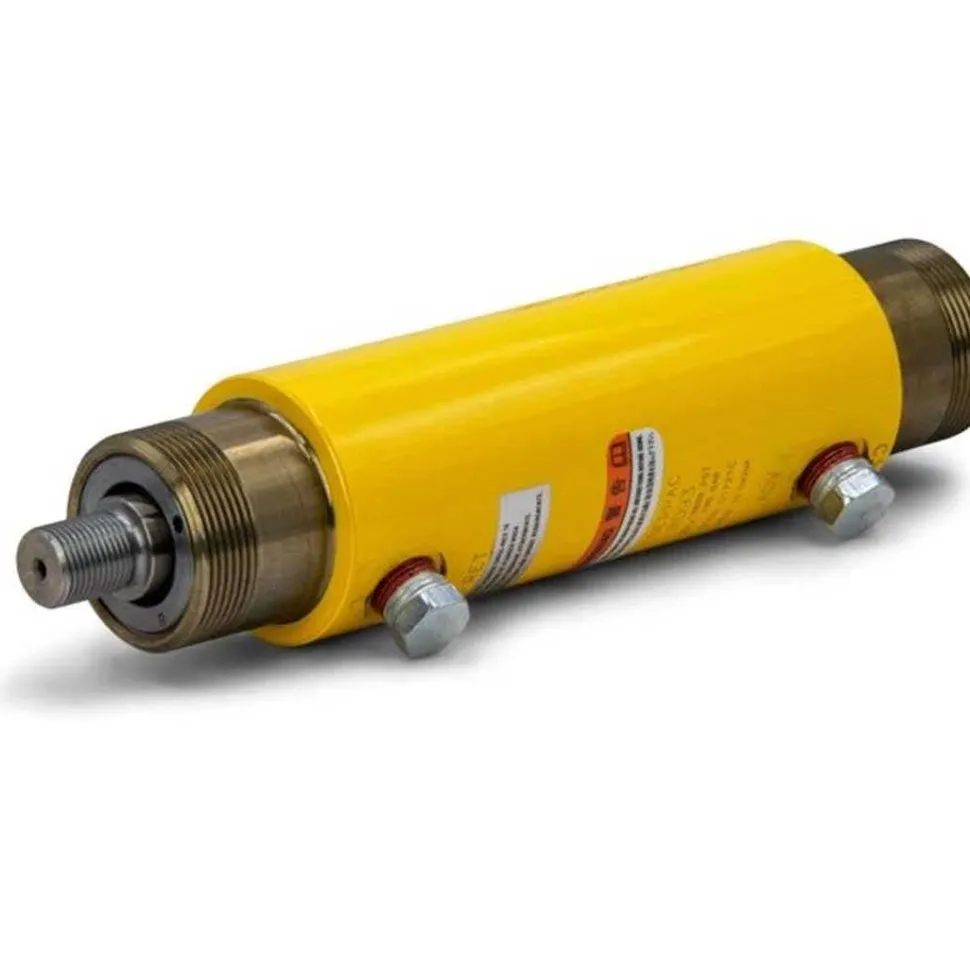

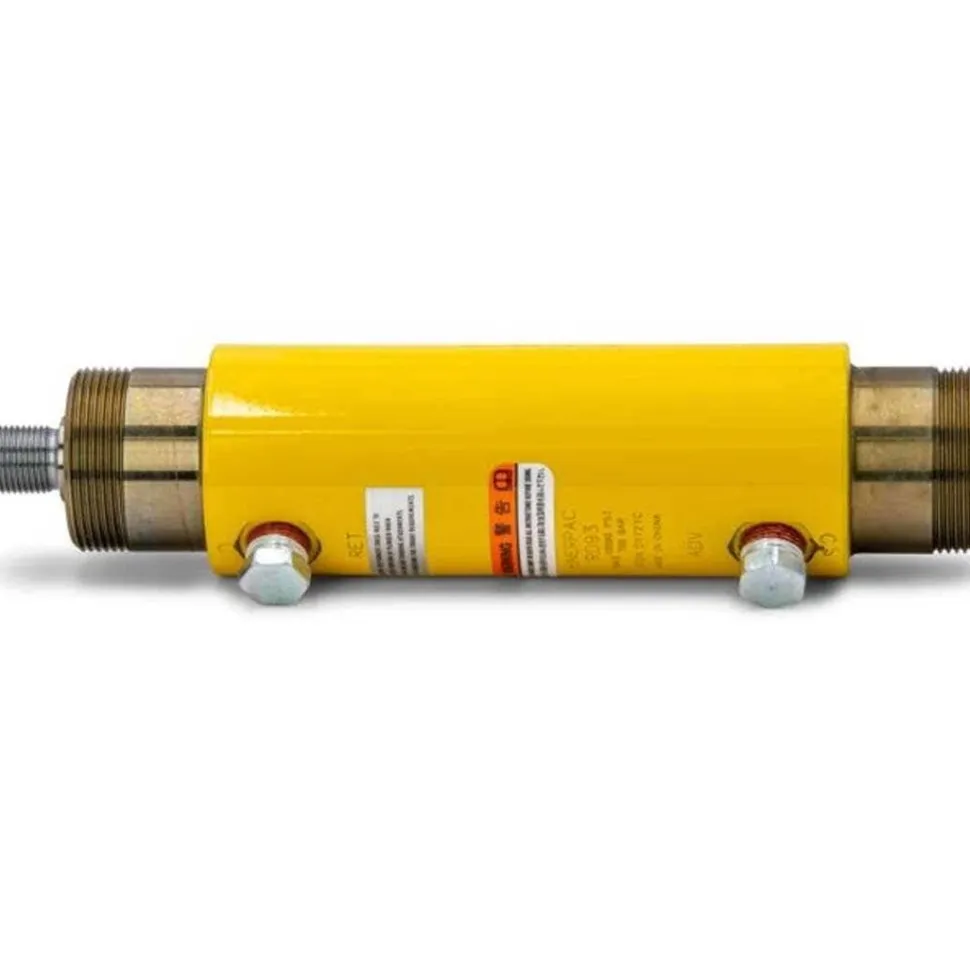

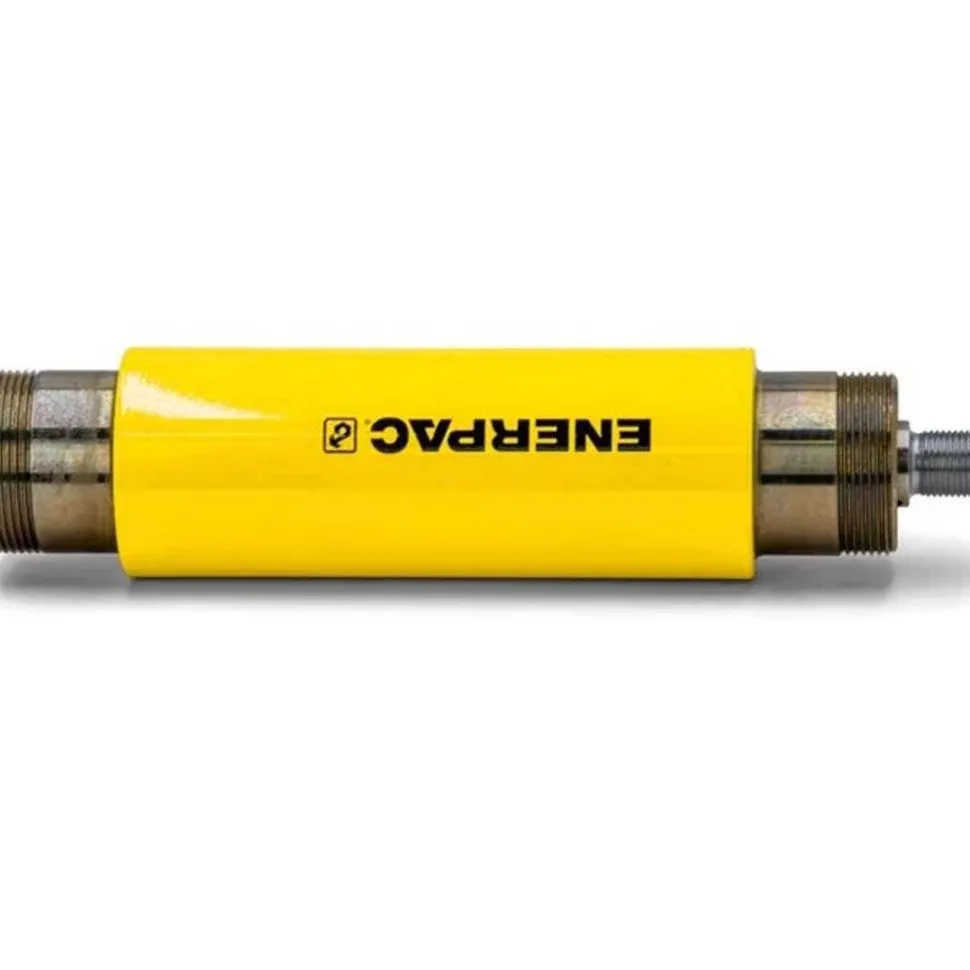

Enerpac 9 ton Capacity, 3.13 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder RD93

Enerpac 9 ton Capacity, 3.13 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder RD93

$134.99

SKU: SKUKoYG2hhmVp Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Enerpac Brand: Enerpac

Description
Reviews (0)

Additional Details

Enerpac

9 ton Capacity, 3.13 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder RD93

FEATURES:

Designed for long life, the best choice for production applications
Unique mounting configurations simplify fixturing
Baked enamel finish for increased corrosion resistance
Double-acting operation develops force in both directions, providing maximum versatility

SPECIFICATIONS:

Maximum Operating Pressure (psi)	10,000
Maximum Cylinder Capacity Advance (short tons)	9
Return Type	Double-Acting, Hydraulic Return
Stroke (in)	3.13

INCLUDES:

(1) Hydraulic Cylinder

Manufacturer Specifications

Body Length C	249 mm \| 9.8 in
Weight	11 lbs \| 4,2 kgs
Extended Height B	13.91 in \| 353 mm
Oil Capacity Retract	3.07 inÂ³ \| 50 cmÂ³
Plunger Protrusion K	25 mm
Plunger Type	Solid
Link Width N	1.5 in
Surface Treatment	Paint
Oil Capacity Advance	5.52 inÂ³ \| 90 cmÂ³
internal Base Thread Z	1 11/16″-18 in
Plunger Thread Length P	0.75 in \| 22 mm
Clevis Eye Mounting Dimension M	38 mm
Sub Types	General Purpose Cylinder
Cylinder Capacity Advance At 350 bar	40,0
Clevis Eye Mounting Dimension L	13.66 in \| 346 mm
Maximum Cylinder Capacity Retract	5 Imperial Tons
Baseto Advance Port H	2.27 in
Cylinder Class	9 Imperial Tons
Cylinder Capacity Retract At 350 bar	21,8
Collar Thread W	2″-12 in
Shipping Weight	10.85 lbs
Clevis Eye Mounting Dimension L1	16.79 in \| 425 mm
Saddle Protrusionfrom Plunger K	0.98 in
News Feed Product Group	Cylinders and Jacks
Cylinder Effective Area Retract	0.98 inÂ² \| 6,3 cmÂ²
Cylinder Capacity Retract At 5000 Psi	4910 lbs
Top To Retract Port I	2.27 in
Country of Origin	China
Collar Thread Length X	0.56 in \| 14 mm
Cylinder Material	Steel
Bottom To Advance Port I	57 mm
Cylinder Effective Area Advance	1.77 inÂ² \| 11,4 cmÂ²
Plunger Outside Thread Q	3/4″ – 16 in
Type	Hydraulic Cylinders
Plunger Diameter F	1 in
Top To Retract Port H	57 mm
Collapsed Height A	10.78 in
Neck Length N	38 mm
Clevis Eye Mounting Dimension Min	1.5
Outside Diameter D	2.5 in \| 63,5 mm
Collapsed Height A Ranges	10.0 – 14.99 in
Maximum Operating Pressure Ranges psi	10000
Stroke Ranges	3.0 – 4.49 in
Maximum Cylinder Capacity Advance	9 Imperial Tons
internal Base Thread Length Z1	0.55 in \| 14 mm
Product Line	Industrial Tools, Workholding Tools
Return Type	Double-Acting, Hydraulic Return
Cylinder Capacity Advance At 5000 Psi	9000 lbs
Cylinder Bore Diameter E	1.5 in \| 38,1 mm

Specifications

More Information
OPT SKU	ENP-RD93
MPN	RD93
UPC/GTIN	662005305339
Product Type	Cylinder Rams Double Acting
Google Category	Business & Industrial > Material Handling
Stroke	3″
Tonnage	9-Ton
Shipping Weight	11.00
