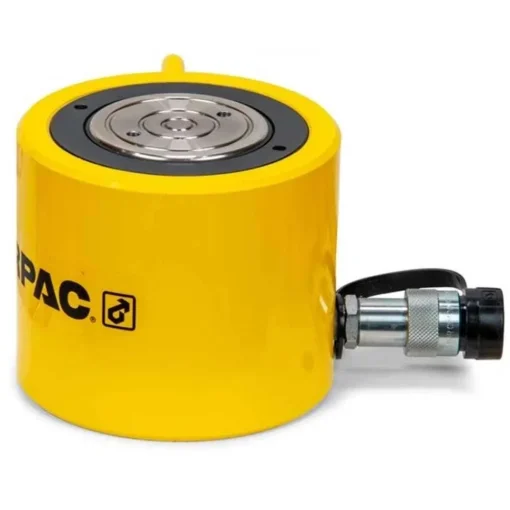

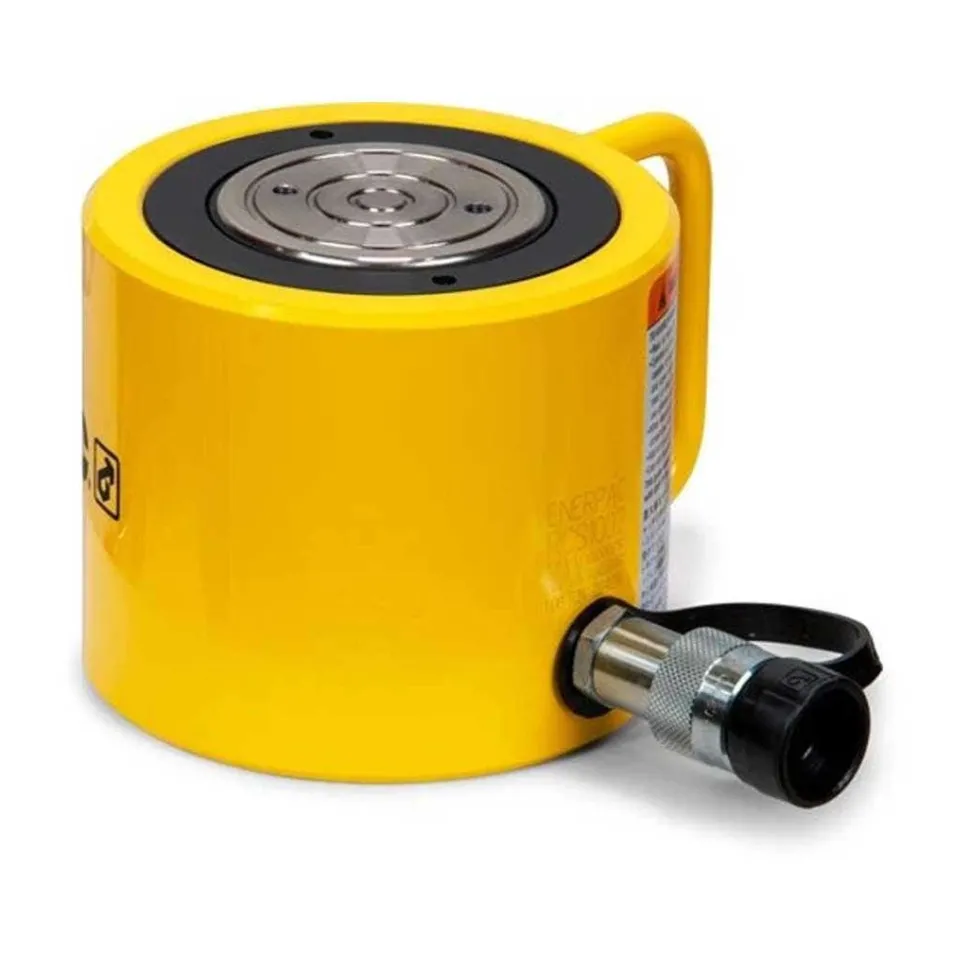

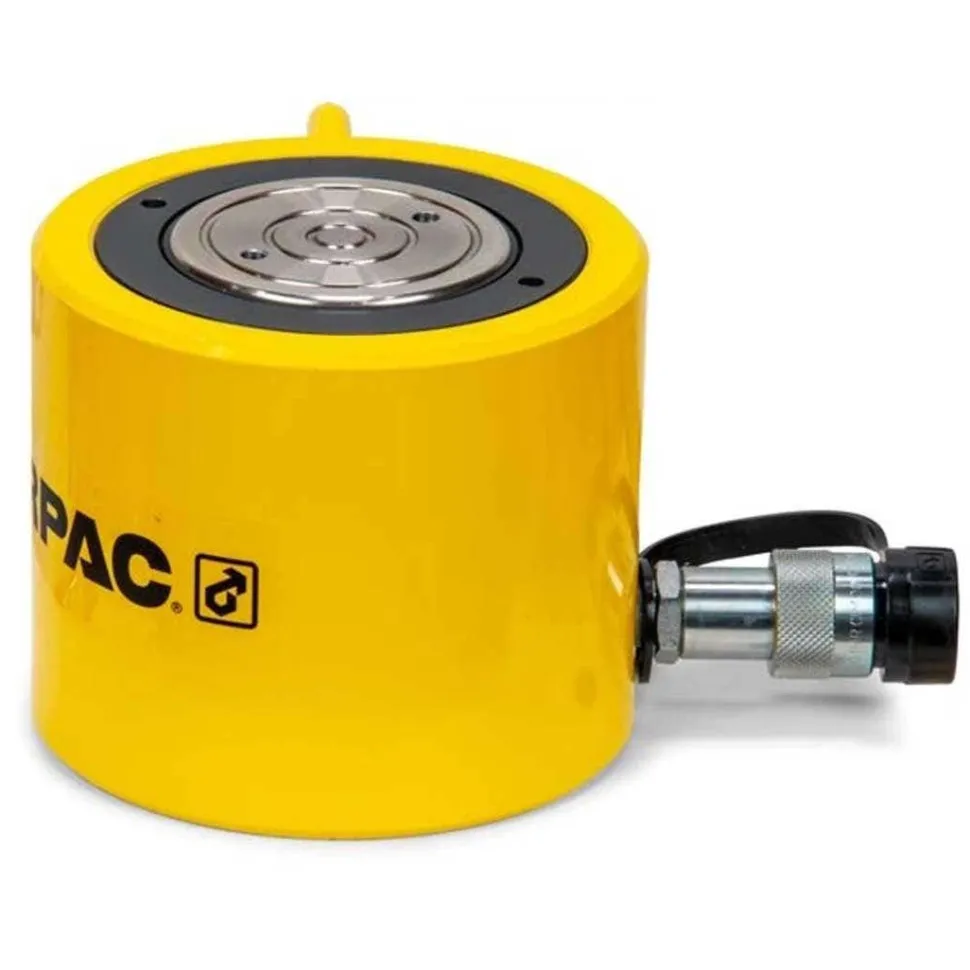

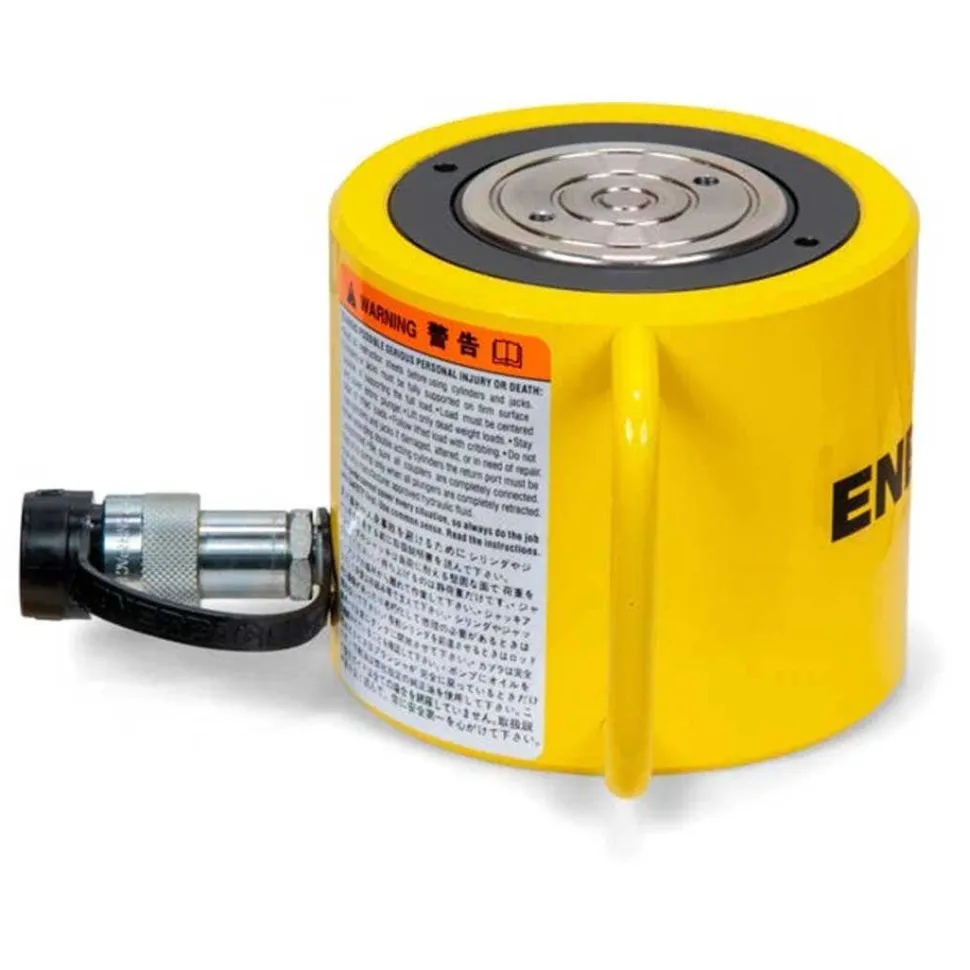

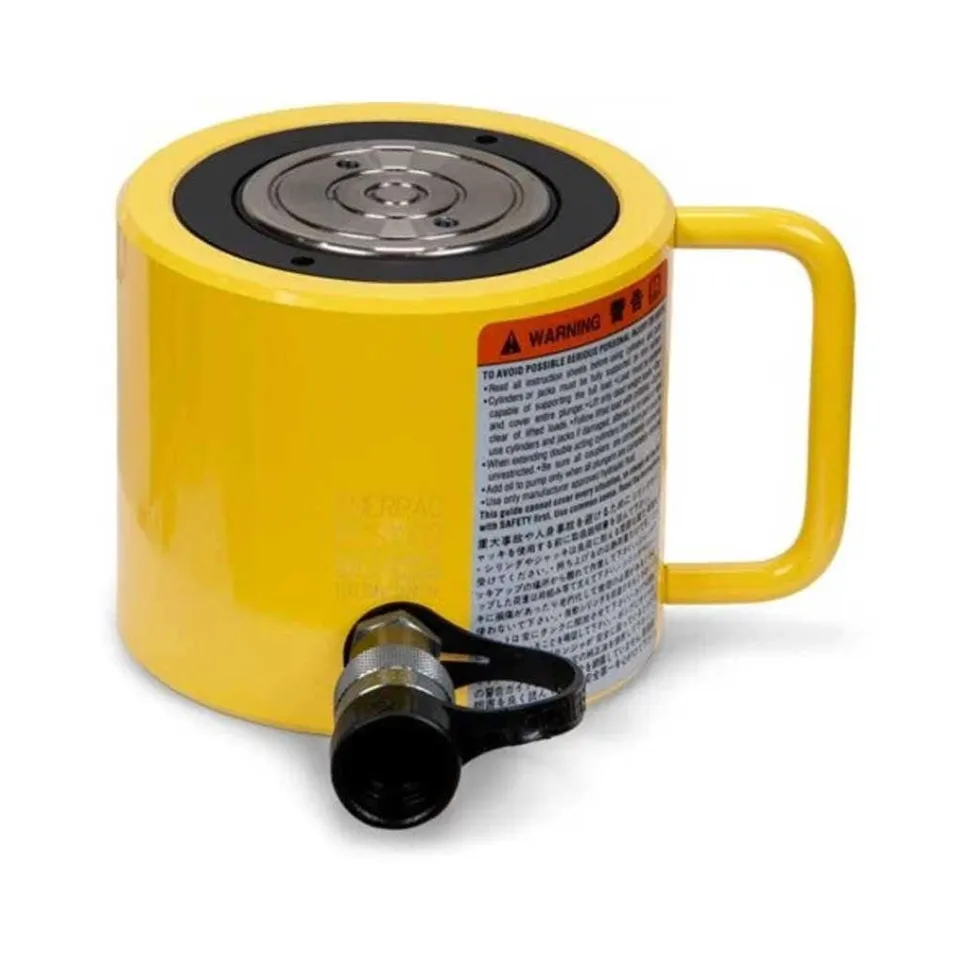

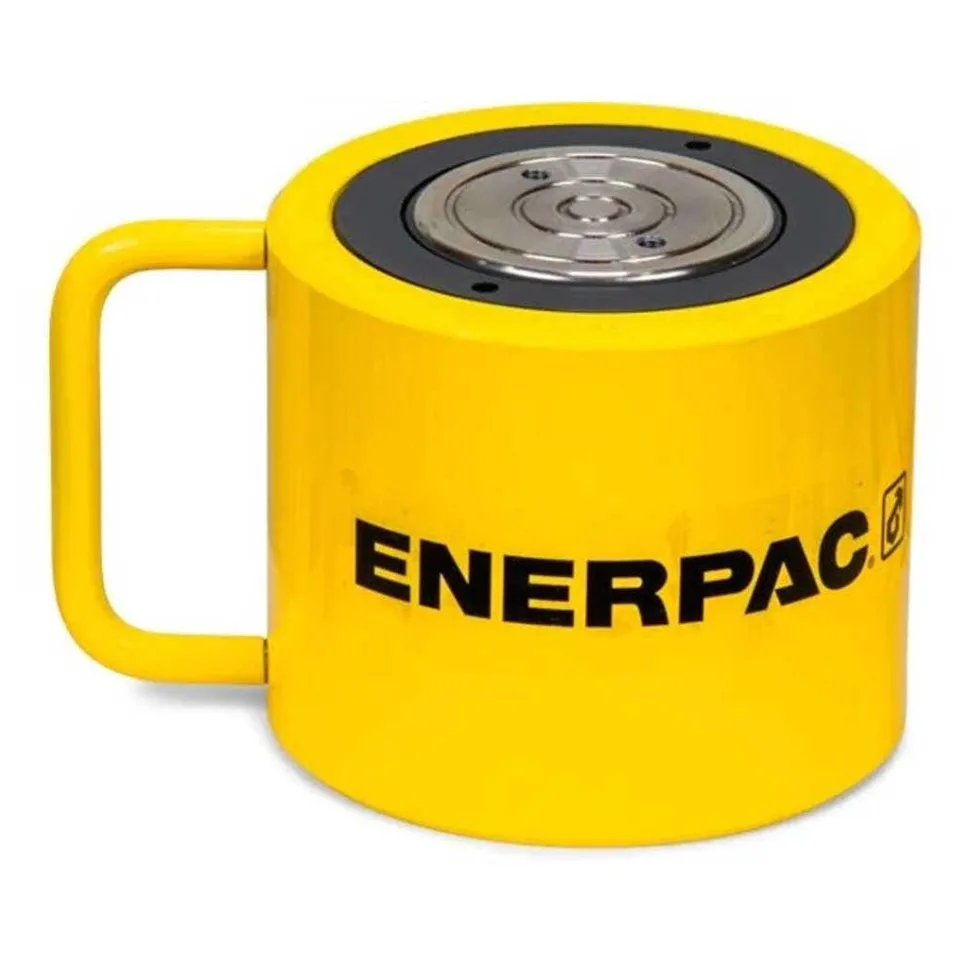

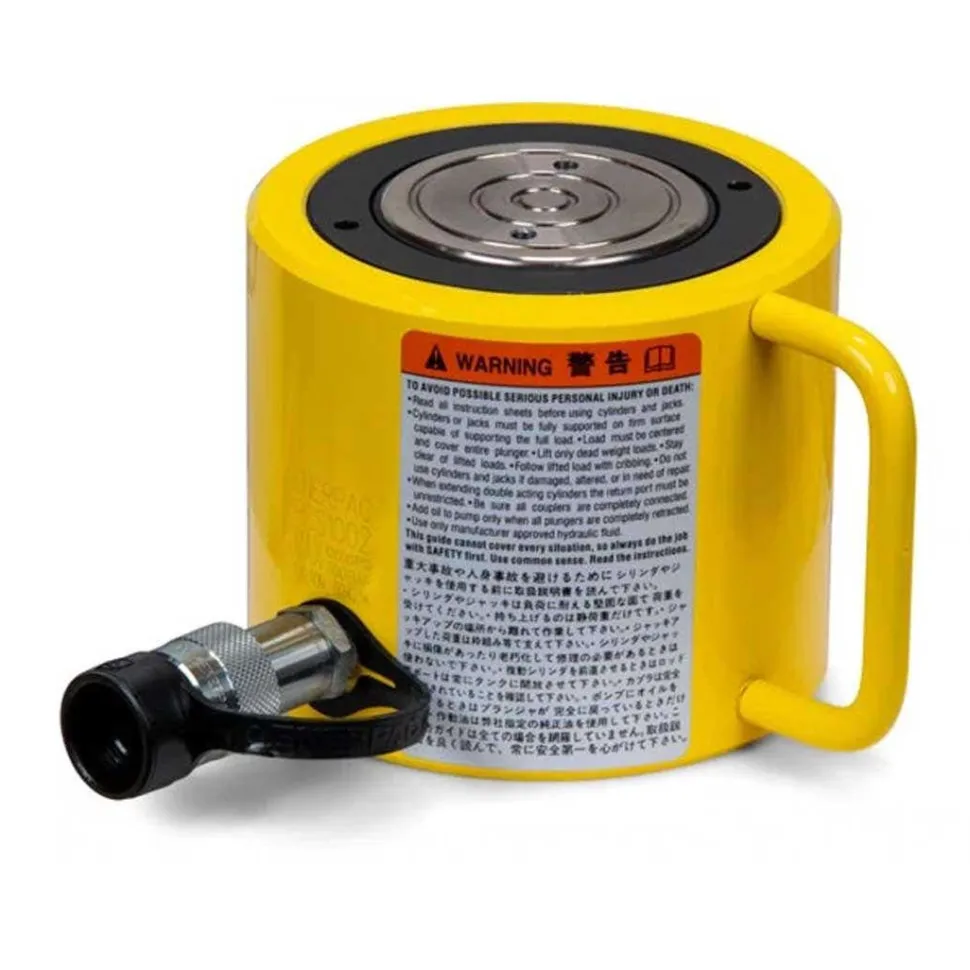

Enerpac 981 ton Capacity, 2.25 in Stroke, Low Height Hydraulic Cylinder RCS1002
Original price was: $2,290.00.$122.89Current price is: $122.89.
Enerpac
98.1 ton Capacity, 2.25 in Stroke, Low Height Hydraulic Cylinder RCS1002
RCS-Series Low Profile Hydraulic Cylinders feature a short-collapsed height, which is ideal for applications with limited space. These Low Profile Jacks are commonly used to lift or jack a load.
FEATURES:
- Lightweight, low profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- Grooved plunger end with threaded holes for mounting tilt saddles
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Maximum Cylinder Capacity Advance (short tons) | 98.1 |
| Stroke (in) | 2.25 |
| Return Type | Single-Acting, Spring Return |
INCLUDES:
(1) Hydraulic Cylinder
| Saddle Diameter J | 2.8 in | 71 mm |
|---|---|
| Cylinder Class | 100 Imperial Tons |
| Return Type | Single-Acting, Spring Return |
| Outside Diameter D | 6.5 in | 165 mm |
| Saddle Protrusionfrom Plunger K1 | 1 mm |
| Saddle Maximum Tilt Angle Radius Degrees | 5 |
| Surface Treatment | Paint |
| Cylinder Material | Steel |
| Plunger internal Threadin O | M8 in |
| Plunger internal Thread O | M8 in |
| Collapsed Height A | 5.56 in | 141 mm |
| Maximum Cylinder Capacity Advance | 98.1 Imperial Tons | 887 kN |
| Stroke Ranges | 2.0 – 2.99 in | 48 – 94 mm |
| Sub Types | Low Height Cylinder |
| Collapsed Height A Ranges | 5.0 – 9.99 in | 128 – 254 mm |
| Saddle Diameter J1 | 71 mm |
| News Feed Product Group | Cylinders and Jacks |
| Plunger Thread Length P | 0.4 in | 10 mm |
| Shipping Weight | 45.65 lbs |
| Optional Tilt Saddle Addition To Collapsed Height A 1 | 1.38 in | 35 mm |
| Oil Capacity Advance | 44.18 in³ | 722 cm³ |
| Upsell item | CUSP100 |
| Cylinder Effective Area Advance | 19.63 in² | 126,7 cm² |
| Cylinder Bore Diameter E | 5 in | 127,0 mm |
| Weight | 46 lbs | 20,7 kgs |
| Baseto Advance Port H | 1.25 in | 31 mm |
| Plunger Diameter F | 3.63 in | 92,2 mm |
| Saddle Protrusionfrom Plunger K | 0.06 in |
| Extended Height B | 7.81 in | 198 mm |
| Plunger Type | Solid |
| Country of Origin | China |
| Product Line | Industrial Tools |
| Type | Hydraulic Cylinders |
| Maximum Operating Pressure Ranges psi | 10000 |
| Base Mounting Holes Bolt Circle U | 2.17 in | 55 mm |
| Saddle Protrusion From Plunger K | 1 mm |
| OPT SKU | ENP-RCS1002 |
|---|---|
| MPN | RCS1002 |
| UPC/GTIN | 662005302161 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 2″ |
| Tonnage | 100-Ton |
| Shipping Weight | 46.00 |
